24

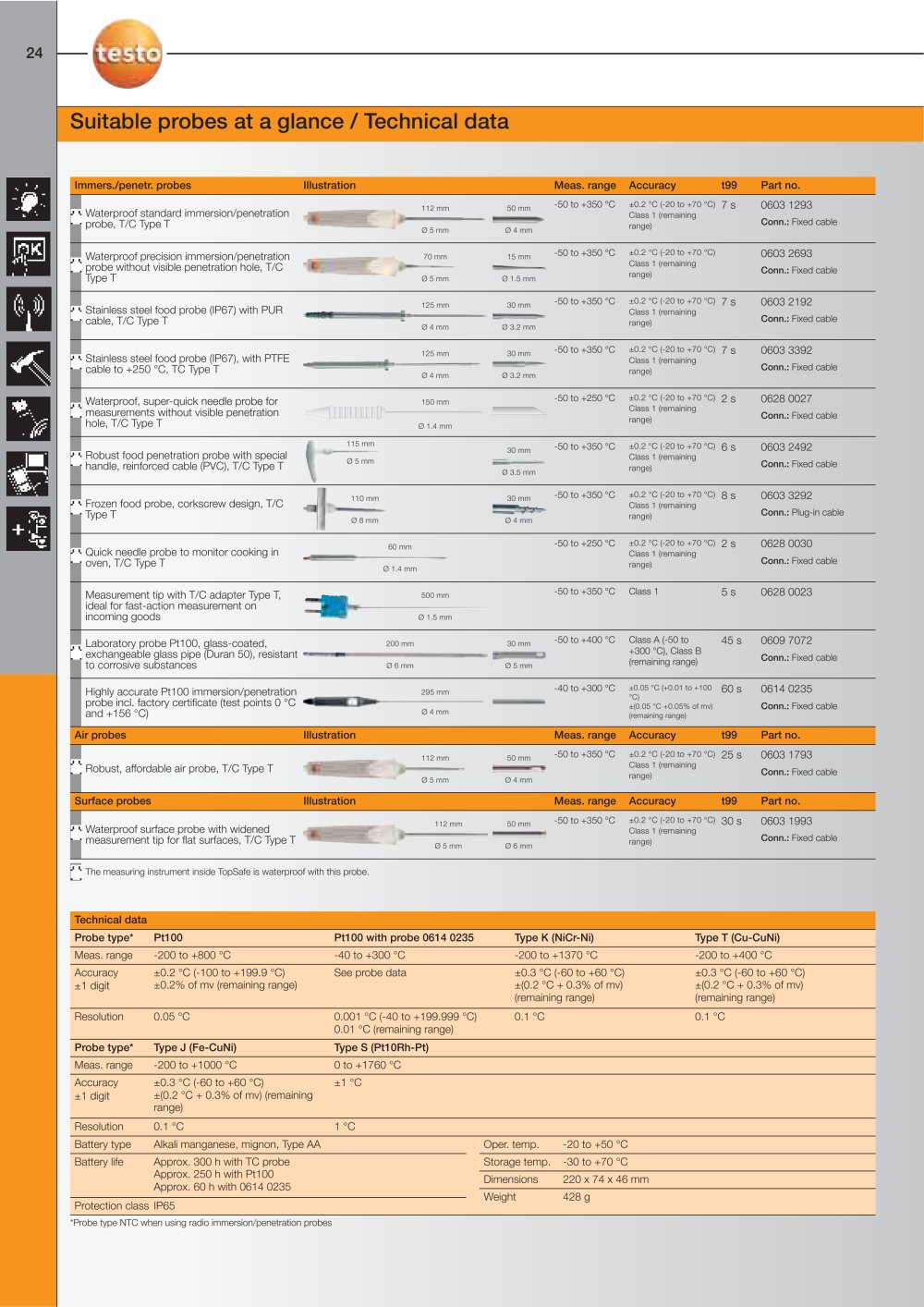

Suitable probes at a glance/ Technical data
Meas. rangeAccuracyIllustrationImmers./penetr. probesPart no. t99
Meas. rangeAccuracyIllustrationAir probesPart no.t99Meas. rangeAccuracyIllustrationSurface probesPart no.t99
-50 to+350 °C ±0.2 °C(-20 to+70 °C)Class 1(remainingrange) 7 s Waterproof standard immersion/penetrationprobe, T/C Type T0603 1293
112 mmØ5 mm50 mmØ4 mm Conn.: Fixed cable Waterproof, super-quick needle probe formeasurements without visible penetration
hole, T/C Type T0628 0027
150 mmØ1.4 mm -50 to+250 °C ±0.2 °C(-20 to+70 °C)Class 1(remaining
range) 2 s
Conn.: Fixed cable 115 mmØ5 mm30 mmØ3.5 mm -50 to+350 °C ±0.2 °C(-20 to+70 °C)Class 1(remaining
range) 6 s Robust food penetration probe with specialhandle, reinforced cable (PUR), T/C Type T0603 2492
Conn.: Fixed cable -50 to+350 °C ±0.2 °C(-20 to+70 °C)Class 1(remaining
range) 7 s Stainless steel food probe (IP67) with PURcable, T/C Type T0603 2192
125 mmØ4 mm30 mmØ3.2 mm Conn.: Fixed cable Waterproof precision immersion/penetrationprobe without visible penetration hole, T/C
Type T0603 2693
70 mmØ5 mm15 mmØ1.5 mm -50 to+350 °C ±0.2 °C(-20 to+70 °C)Class 1(remaining
range) Conn.: Fixed cable -50 to+350 °C ±0.2 °C(-20 to+70 °C)Class 1(remaining
range) 8 s Frozen food probe, corkscrew design, T/CType T0603 3292
110 mmØ8 mm30 mmØ4 mm Conn.: Plug-in cable -50 to+350 °C ±0.2 °C(-20 to+70 °C)Class 1(remaining
range) 7 s Stainless steel food probe (IP67), with Tefloncable to +250 °C, T/C Type T0603 3392
125 mmØ4 mm30 mmØ3.2 mm Conn.: Fixed cable Measurement tip with T/C adapter Type T,ideal for fast-action measurement on
incoming goods0628 0023
500 mmØ1.5 mm -50 to+350 °CClass 1 5 s
-50 to+250 °C ±0.2 °C(-20 to+70 °C)Class 1(remainingrange) 2 s Quick needle probe to monitor cooking inoven, T/C Type T0628 0030
Conn.: Fixed cable Laboratory probe Pt100, glass-coated,exchangeable glass pipe, resistant to
corrosive substances0609 7072
200 mmØ6 mm 30 mmØ5 mm60 mmØ1.4 mm -50 to+400 °CClass A (-50 to+300 °C), Class B(remaining range) 45 s
Conn.: Fixed cable -40 to+300 °C ±0.05 °C(+0.01 to+100°C)
±(0.05 °C+0.05% of mv)
(remaining range) Highly accurate Pt100 immersion/penetrationprobe with certificate0614 023560 s
295 mmØ4 mm Conn.: Fixed cable 112 mmØ5 mm50 mmØ4 mm -50 to+350 °C ±0.2 °C(-20 to+70 °C)Class 1(remaining
range) 25 s Robust, affordable air probe, T/C Type T0603 1793
Conn.: Fixed cable -50 to+350 °C ±0.2 °C(-20 to+70 °C)Class 1(remaining
range) 30 s Waterproof surface probe with widenedmeasurement tip for flat surfaces, T/C Type T0603 1993
112 mmØ5 mm50 mmØ6 mm Conn.: Fixed cable The measuring instrument inside TopSafe is waterproof with this probe. Technical data Probe type*Pt100Pt100 with probe 0614 0235Type K (NiCr-Ni) Type T (Cu-CuNi) Meas. range-200 to+800 °C-40 to+300 °C-200 to+1370 °C -200 to+400 °C0.1 °C Accuracy±1 digit±0.2 °C(-100 to+199.9 °C)±0.2% of mv(remaining range)See probe data±0.3 °C(-60 to+60 °C)±(0.2 °C+ 0.3% of mv)(remaining range) Resolution0.05 °C0.001 °C(-40 to+199.999 °C)0.01 °C(remaining range)0.1 °C±0.3 °C(-60 to+60 °C)±(0.2 °C+ 0.3% of mv)(remaining range) Probe type*Type J (Fe-CuNi)Type S (Pt10Rh-Pt) Meas. range-200 to+1000 °C0 to+1760 °C Accuracy±1 digit±0.3 °C(-60 to+60 °C)±(0.2 °C+ 0.3% of mv) (remainingrange)±(1 °C+ 0.1% of mv) Resolution0.1 °C1 °C Battery typeAlkali manganese, mignon, Type AAProtection classIP65Battery lifeApprox. 300 hwith TC probeApprox. 250 hwith Pt100
Approx. 60 hwith 0614 0235 Oper. temp.-20 to+50 °C Storage temp.-30 to+70 °C Dimensions 220 x 74 x 46 mm Weight428 g
*Probe type NTC when using radio immersion/penetration probes
