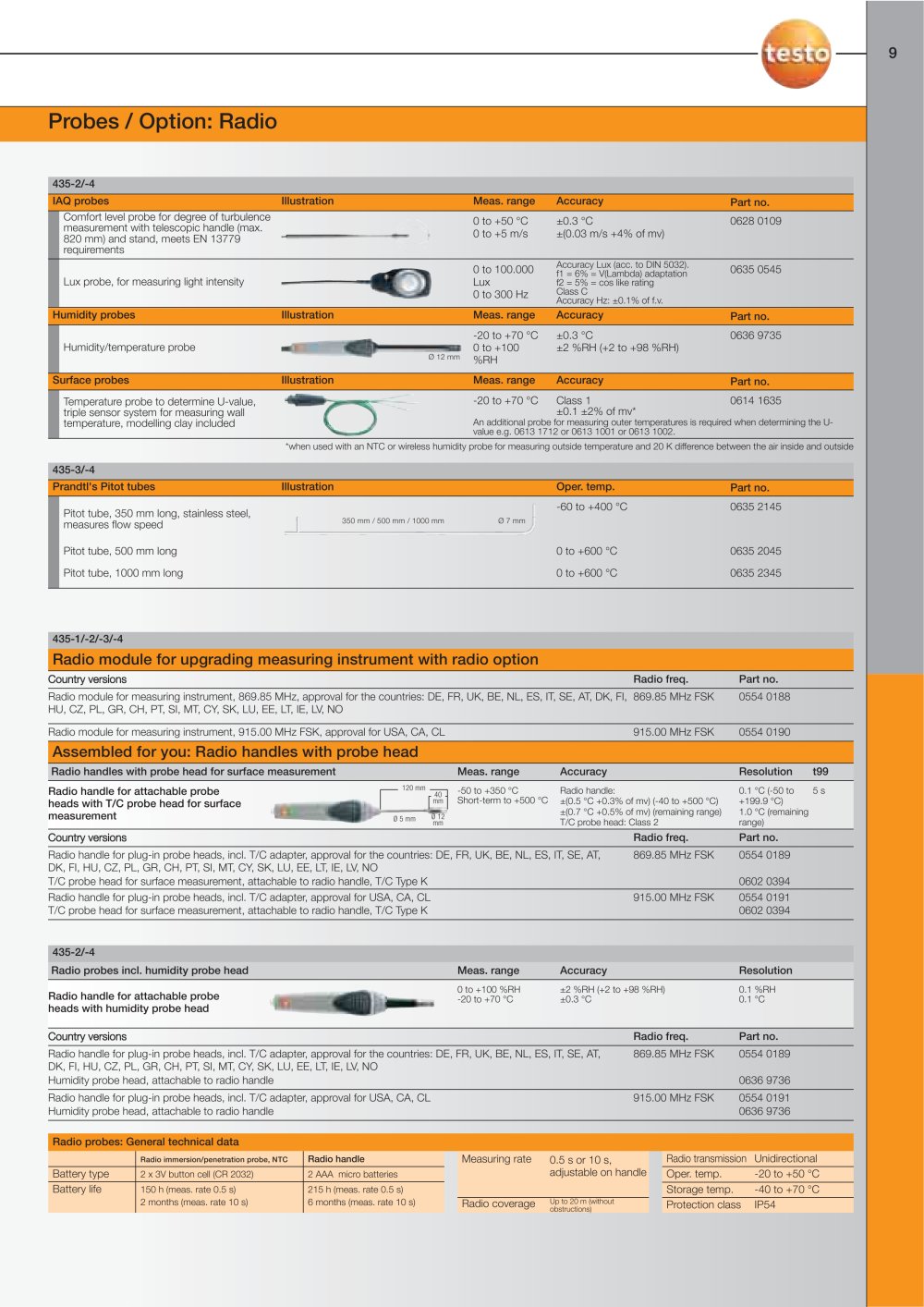

Probes / Option: Radio

435-2/-4


IAQ probes		Illustration	Meas, range	Accuracy	Part no.
	Comfort level probe for degree of turbulence measurement with telescopic handle (max.		0 to +50 °C	±0.3 °c ±(0.03 m/s +4% of mv)	0628 0109
_	820 mm) and stand, meets EN 13779 requirements			±0.3 °c ±(0.03 m/s +4% of mv)
	Lux probe, for measuring light Intensity		*_^gm—*^ Oto 100.000 ^^ 0 to 300 Hz	Accuracy Lux (acc. to DIN 5032). f1 - 6% - V(Lambda) adaptation f2 - 5% - cos like rating Class C Accuracy Hz: ±0.1 % of f.v.	0635 0545
	Lux probe, for measuring light Intensity		*_^gm—*^ Oto 100.000 ^^ 0 to 300 Hz
H	umidity probes	Illustration	Meas, range	Accuracy	Part no.
	Humidity/temperature probe		-20 to +70 °C	±0.3 °c ±2,5%RH(+5 to +95 %RH)	0636 9735
	Humidity/temperature probe		012 mm %RH	±0.3 °c ±2,5%RH(+5 to +95 %RH)
Surface probes		Illustration	Meas, range	Accuracy	Part no.

-20 to +70 °C Class 1 0614 1635

±0.1 ±2% of mv*

An additional probe for measuring outer temperatures Is required when determining the U-value e.g. 0613 1712 or 0613 1001 or 0613 1002._

Temperature probe to determine U-value, triple sensor system for measuring wall temperature, modelling clay Included

*when used with an NTC or wireless humidity probe for measuring outside temperature and 20 K difference between the air inside and outside



Prandtl's Pitot tubes	Illustration	Oper. temp.	Part no.

-60 to +400 °C

0635 2145

Pltot tube, 350 mm long, stainless steel, measures flow speed

Pltot tube, 500 mm long Pltot tube, 1000 mm long

350 mm / 500 mm / 1000 mm

0 to +600 °C 0 to +600 °C

0635 2045 0635 2345


	435-1/-2/-3/-4
	Radio module for upgrading measuring instrument with radio option
	Country versions Radio freq.	Part no.
	Radio module for measuring instrument, 869.85 MHz, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, Fl, 869.85 MHz FSK HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO	0554 0188
	Radio module for measuring instrument, 915.00 MHz FSK, approval for USA, CA, CL 915.00 MHz FSK	0554 0190
	Assembled for you: Radio handles with probe head
	Radio handles with probe head for surface measurement Meas. range Accuracy	Resolution t99
	Radio handle for attachable probe I- ^120mm 17n -50 to+350 °C Radio handle: heads with T/C probe head for surface ^ [mm] Short-term to +500 "C ±(0.5 °C+0.3% of mv) (-40 to+500 °C) measurement ^■P* _05mm *"T?* ±(0.7 »C+0.5% of mv) (remaining range) ^w ³ ^mm mm T/C probe head: Class 2	0.1 °C (-50 to 5 s +199.9 °C) 1.0 *^aC* (remaining range)
	Country versions Radio freq.	Part no.
	Radio handle for plug-In probe heads, Incl. T/C adapter, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, 869.85 MHz FSK DK, Fl, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV NO T/C probe head for surface measurement, attachable to radio handle, T/C Type K	0554 0189 0602 0394

Radio handle for plug-In probe heads, Incl. T/C adapter, approval for USA, CA, CL T/C probe head for surface measurement, attachable to radio handle, T/C Type K

915.00 MHz FSK

0554 0191 0602 0394


435-2/-4
Radio probes incl. humidity probe head Meas. range Accuracy		Resolution
„....., 0to+100%RH ±2%RH(+2t0 4 Radio handle for attachable probe • ^^^^^^ -20 to+70 °C ±0.3 °C heads with humidity probe head	98 %RH)	0.1 %RH 0.1 °c
Country versions	Radio freq.	Part no.
Radio handle for plug-In probe heads, Incl. T/C adapter, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, Fl, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV NO Humidity probe head, attachable to radio handle	869.85 MHz FSK	0554 0189 0636 9736

Radio handle for plug-In probe heads, Incl. T/C adapter, approval for USA, CA, CL Humidity probe head, attachable to radio handle

915.00 MHz FSK 0554 0191 0636 9736


Radio probes: G	sneral technical data
	Radio immersion/penetration probe, NTC	Radio handle	Measuring rate 0.5 s or 10 s, adjustable on handle	Radio transmission Unidirectional
Battery type	2 x3V button cell (CR 2032)	2 AAA micro batteries		Oper. temp. -20 to +50 °C
Battery life	150 h (meas. rate 0.5 s) 2 months (meas. rate 10 s)	215 h (meas. rate 0.5 s) 6 months (meas. rate 10 s)		Storage temp. -40 to +70 °C
Battery life	150 h (meas. rate 0.5 s) 2 months (meas. rate 10 s)	215 h (meas. rate 0.5 s) 6 months (meas. rate 10 s)	Radio coverage ^20m<^without°^bst"^J<^>	Protection class IP54
