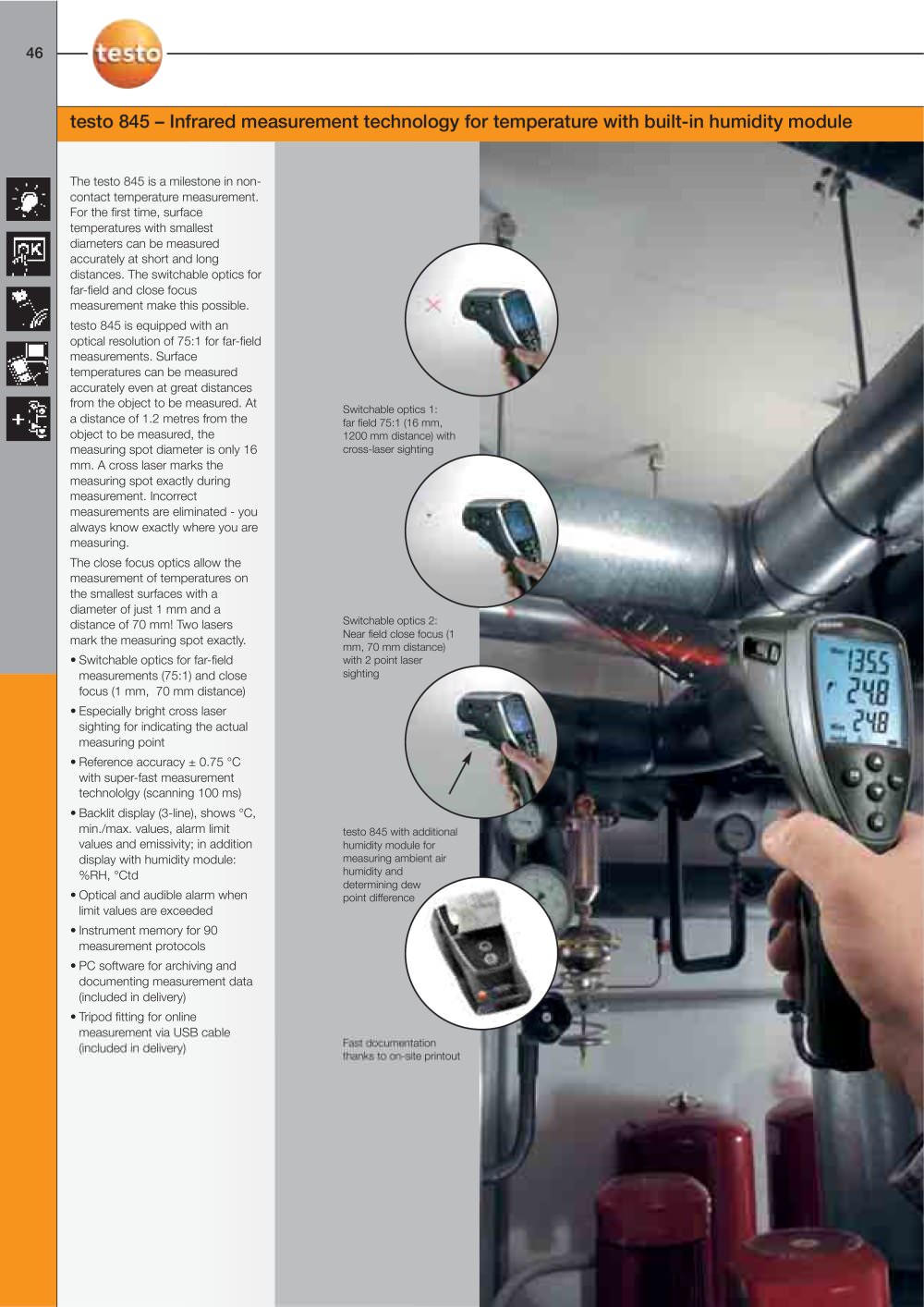

testo 845 – Infrared measurement technology for temperature with built-in humidity module

The testo 845 is a milestone in non-contact temperature measurement. For the first time, surface temperatures with smallest diameters can be measured accurately at short and long distances. The switchable optics for far-field and close focus measurement make this possible.testo 845 is equipped with anoptical resolution of 75:1 for far-field measurements. Surface temperatures can be measured accurately even at great distances from the object to be measured. At a distance of 1.2 metres from the object to be measured, the measuring spot diameter is only 16 mm. A cross laser marks the measuring spot exactly during measurement. Incorrect measurements are eliminated - you always know exactly where you are measuring.The close focus optics allow themeasurement of temperatures on the smallest surfaces with a diameter of just 1 mm and a distance of 70 mm! Two industrial lasers mark the measuring spot exactly.•Switchable optics for far-fieldmeasurements (75:1) and close focus (1 mm, 70 mm distance)•Especially bright cross lasersighting for indicating the actual measuring point•Reference accuracy ± 0.75 °Cwith super-fast measurement technololgy (scanning 100 ms)•Backlit display (3-line), shows °C,min./max. values, alarm limit values and emissivity; in addition display with humidity module: %RH, °Ctd•Optical and audible alarm whenlimit values are exceeded•Instrument memory for 90measurement protocols•PC software for archiving anddocumenting measurement data (included in delivery)•Tripod fitting for onlinemeasurement via USB cable (included in delivery)

Switchable optics 2:Near field close focus (1 mm, 70 mm distance) with 2 point laser sighting Switchable optics 1: far field 75:1 (16 mm, 1200 mm distance) with cross-laser sighting testo 845 with additionalhumidity module for mea-suring ambient air humi-dity and determining dew point difference Fast documentationthanks to on-site printout
