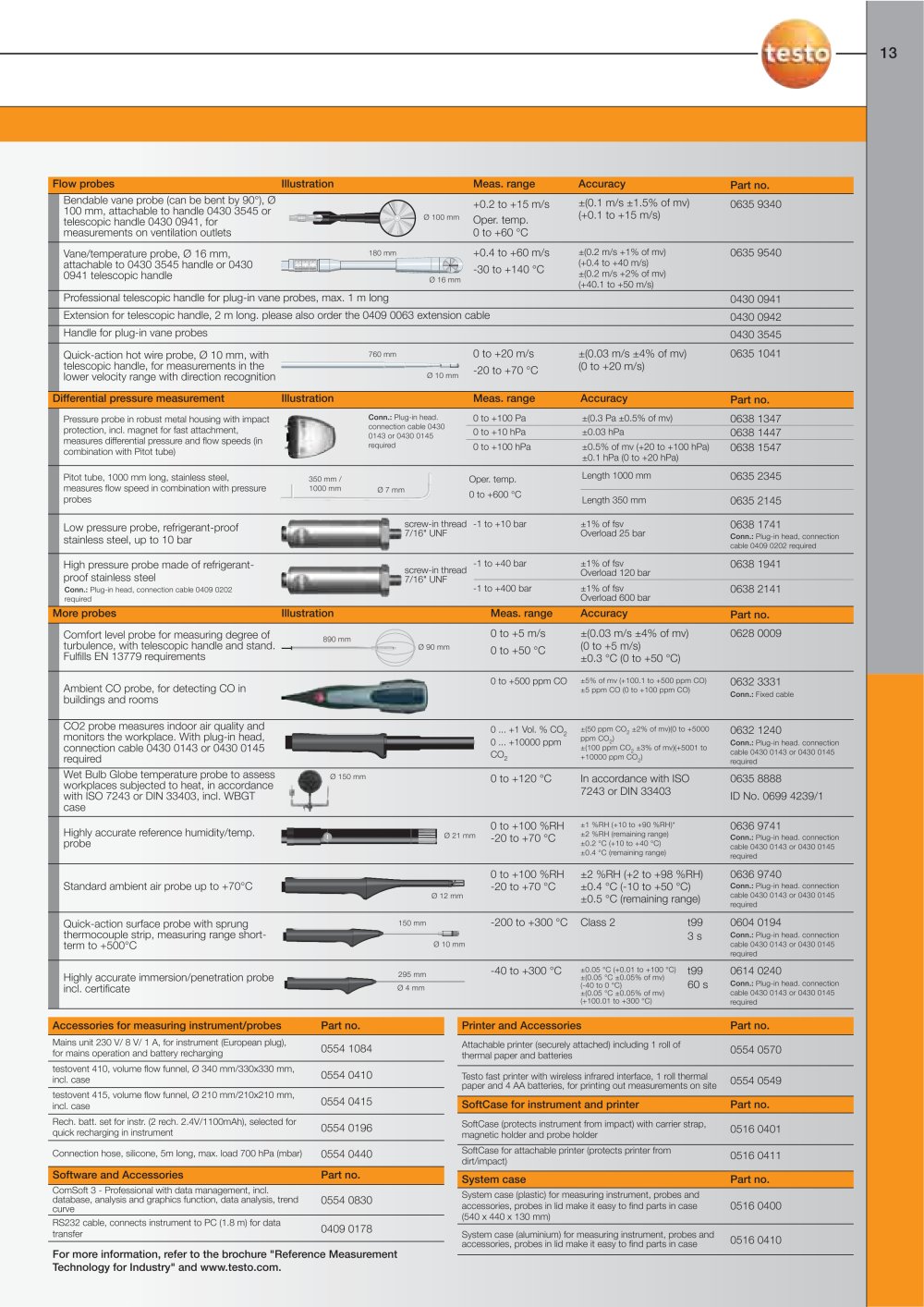

Flow probes

Illustration

Meas, range

Accuracy

Part no.

Bendable vane probe (can be bent by 90°), 0 100 mm, attachable to handle 0430 3545 or telescopic handle 0430 0941, for measurements on ventilation outlets

±(0.1 m/s ±1.5% of mv) (+0.1 to +15 m/s)

+0.1 to +15 m/s 0ioomm oper. temp.

0 to +60 °C

0635 9340

+0.4 to +60 m/s -30 to +140 °C

±(0.2 m/s +1 % of mv) (+0.4 to +40 m/s) ±(0.2 m/s +2% of mv) (+40.1 to +50 m/s)

0635 9540

Vane/temperature probe, 0 16 mm, attachable to 0430 3545 handle or 0430 0941 telescopic handle

Professional telescopic handle for plug-in vane probes, max. 1 m long

0430 0941

Extension for telescopic handle, 2 m long, please also order the 0409 0063 extension cable

0430 0942

Handle for plug-in vane probes

0430 3545

Quick-action hotwire probe, 0 10 mm, with telescopic handle, for measurements in the lower velocity range with direction recognition

0 to +20 m/s -20 to +70 °C

±(0.03 m/s ±4% of mv) (0 to +20 m/s)

0635 1041

Differential pressure measurement

Illustration

Meas, range

Accuracy

Part no.

Conn.: Plug-in head, connection cable 0430 0143 or 0430 0145 required

±(0.3 Pa ±0.5% of mv)

0638 1347

Pressure probe in robust metal housing with impact protection, incl. magnet for fast attachment, measures differential pressure and flow speeds (in combination with Pitot tube)

±0.03 hPa

0638 1447

Oto +100 hPa

±0.5% of mv (+20 to +100 hPa) ±0.1 hPa (0 to +20 hPa)

0638 1547


Pitot tube, 1000 mm long, stainless steel, measures flow speed in combination with pressure probes	350 mm / \|J^ 1000 mm	Oper. temp. ⁰ 7 mm Jl _n . , _onn _ar, ___0 to +600 c	Length 1000 mm Length 350 mm	0635 2345 0635 2145
			Length 1000 mm Length 350 mm	0635 2345 0635 2145
		—
Low pressure probe, refrigerant-proof stainless steel, up to 10 bar			±1 % of fsv Overload 25 bar	0638 1741 Conn.: Plug-in head, connection
				cable 0409 0202 required

±1 % of fsv Overload 120 bar

0638 1941

High pressure probe made of refrigerant-proof stainless steel

Conn.: Plug-in head, connection cable 0409 0202 required

screw-in thread I 7/16" UNF

-1 to +400 bar

±1 % of fsv Overload 600 bar

0638 2141

More probes

Illustration

Meas, range Accuracy

Part no.

0 to +5 m/s 0 to +50 °C

±(0.03 m/s ±4% of mv)

(0 to +5 m/s)

±0.3 °C (0 to +50 °C)

0628 0009

Comfort level probe for measuring degree of turbulence, with telescopic handle and stand. Fulfills EN 13779 requirements

0 to +500 ppm CO

±5% of mv (+100.1 to +500 ppm CO) ±5 ppm CO (0 to +100 ppm CO)

0632 3331

Conn.: Fked cable

Ambient CO probe, for detecting CO in buildings and rooms

C02 probe measures indoor air quality and monitors the workplace. With plug-in head, connection cable 0430 0143 or 0430 0145 required

0 to +1 Vol. % C0₂Oto +10000 ppm

CO,

±(50 ppm C0₂ ±2% of mv)(0 to +5000 ppm C0₂)

±(100 ppm C0₂ ±3% of mv)(+5001 to + 10000 ppm C0₂)

0632 1240

Conn.: Plug-In head, connection cable 0430 0143 or 0430 0145 required

Wet Industrial bulb Globe temperature probe to assess workplaces subjected to heat, in accordance with ISO 7243 or DIN 33403, incl. WBGT case

Oto +120 °C

In accordance with ISO 7243 or DIN 33403

0635 8888

ID No. 0699 4239/1

Oto +100 %RH -20 to +70 °C

±1 %RH (+10 to +90 %RH)* ±2 %RH (remaining range) ±0.2°C(+10to+40°C) ±0.4 °C (remaining range)

0636 9741

Conn.: Plug-in head, connection cable 0430 0143 or 0430 0145 required

Highly accurate reference humidity/temp, probe incl. cal. cert.

Oto +100 %RH -20 to +70 °C

±2 %RH (+2 to +98 %RH) ±0.4 °C (-10 to +50 °C) ±0.5 °C (remaining range)

0636 9740

Conn.: Plug-in head, connection cable 0430 0143 or 0430 0145 required

Standard ambient air probe up to +70°C

-200 to +300 °C Class 2

t99 0604 0194

3 g Conn.: Plug-in head, connection

cable 0430 0143 or 0430 0145 required

Quick-action surface probe with sprung thermocouple strip, measuring range short-term to +500°C

-40 to +300 °C

±0.05 °C (+0.01 to+100°C) t99

±(0.05 °C ±0.05% of mv)

(-40 to 0 °C) 60 S

±(0.05 °C ±0.05% of mv)

(+100.01 to +300 °C)

0614 0240

Conn.: Plug-in head, connection cable 0430 0143 or 0430 0145 required

295 mm 0 4 mm

Highly accurate immersion/penetration probe incl. certificate


	Printer and Accessories	Part no.
	Attachable printer (securely attached) Including 1 roll of thermal paper and batteries	0554 0570
	Testo printer with wireless IRDA and Infrared Interface, 1 roll of thermal paper and 4 AA batteries, for printout of reading on site	0554 0547
	SoftCase for instrument and printer	Part no.
	SoftCase (protects Instrument from Impact) with carrier strap, magnetic holder and probe holder	0516 0401
	SoftCase for attachable printer (protects printer from dirt/Impact)	0516 0411
	System case	Part no.
	System case (plastic) for measuring Instrument, probes and accessories, probes In lid make It easy to find parts In case (540 x 440 x 130 mm)	0516 0400
	System case (aluminium) for measuring Instrument, probes and accessories, probes In lid make It easy to find parts In case	0516 0410

Accessories for measuring instrument/probes

Part no.

testovent 410, volume flow funnel, 0 190 mm/330x330 mm, Incl. case

0554 0410


	testovent 415, volume flow funnel, 0 190 mm/210x210 mm, Incl. case	0554 0415
	Rech. batt. set for Instr. (2 rech. 2.4V/1 lOOmAh), selected for quick recharging In Instrument	0554 0196
	Mains unit 230 V/ 8 V/ 1 A, for Instrument (European plug), for mains operation and battery recharging	05541084
	Connection hose, silicone, 5m long, max. load 700 hPa (mbar)	0554 0440
	Software and Accessories	Part no.
	ComSoft 3 - Professional with data management, Incl. database, analysis and graphics function, data analysis, trend curve	0554 0830
	RS232 cable, connects Instrument to PC (1.8 m) for data transfer	0409 0178

For more information, refer to the brochure "Reference Measurement Technology for Industry" and www.testo.com.
