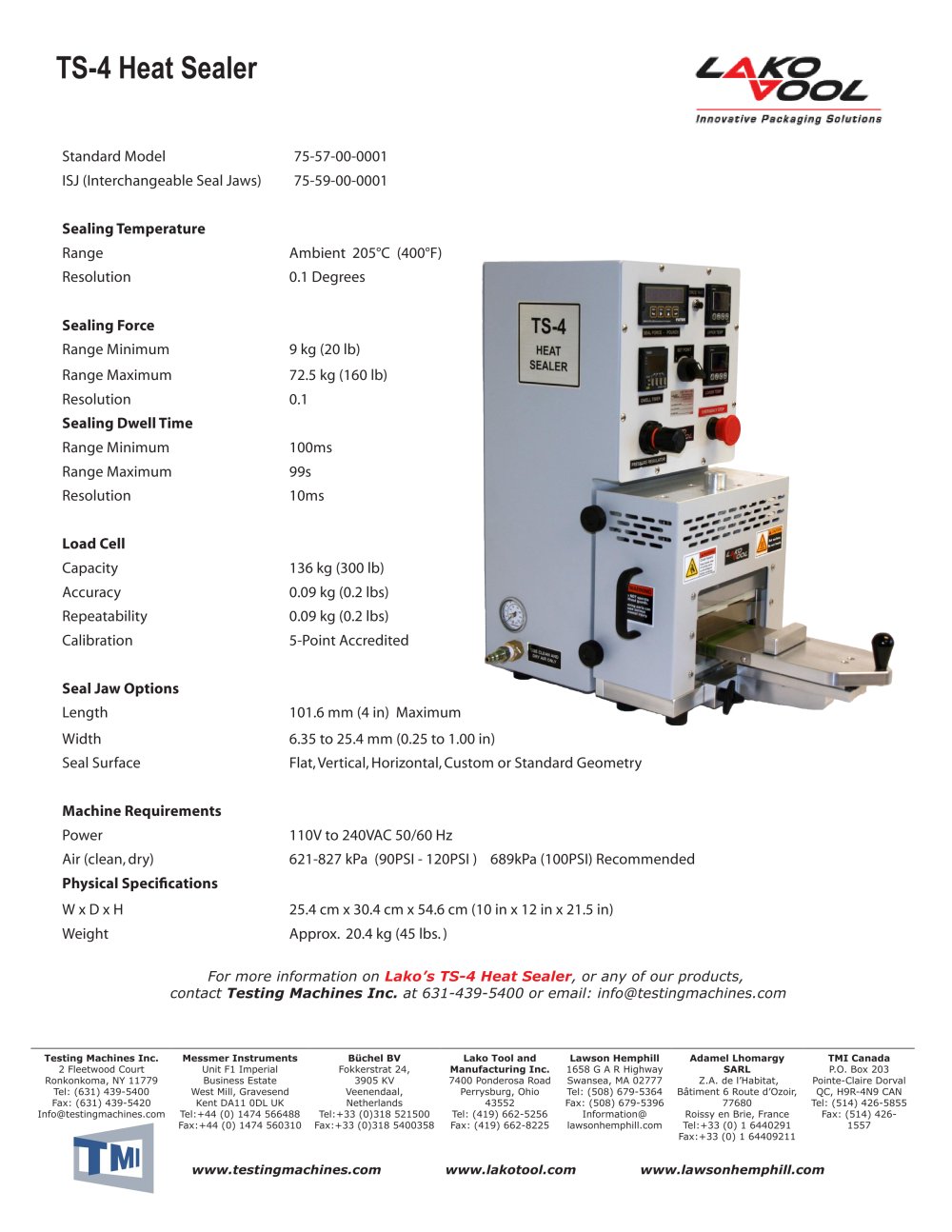

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com TS-4 Heat Sealer Standard Model 75-57-00-0001 ISJ (Interchangeable Seal Jaws) 75-59-00-0001 Sealing Temperature Range Ambient 205°C (400°F) Resolution 0.1 Degrees Sealing Force Range Minimum 9 kg (20 lb) Range Maximum 72.5 kg (160 lb) Resolution 0.1 Sealing Dwell Time Range Minimum 100ms Range Maximum 99s Resolution 10ms Load Cell Capacity 136 kg (300 lb) Accuracy 0.09 kg (0.2 lbs) Repeatability 0.09 kg (0.2 lbs) Calibration 5-Point Accredited Seal Jaw Options Length 101.6 mm (4 in) Maximum Width 6.35 to 25.4 mm (0.25 to 1.00 in) Seal Surface Flat, Vertical, Horizontal, Custom or Standard Geometry Machine Requirements Power 110V to 240VAC 50/60 Hz Air (clean, dry) 621-827 kPa (90PSI - 120PSI ) 689kPa (100PSI) Recommended Physical Specifications W x D x H 25.4 cm x 30.4 cm x 54.6 cm (10 in x 12 in x 21.5 in) Weight Approx. 20.4 kg (45 lbs. ) For more information on Lako’s TS-4 Heat Sealer, or any of our products, contact Testing Machines Inc. at 631-439-5400 or email: info@testingmachines.com
