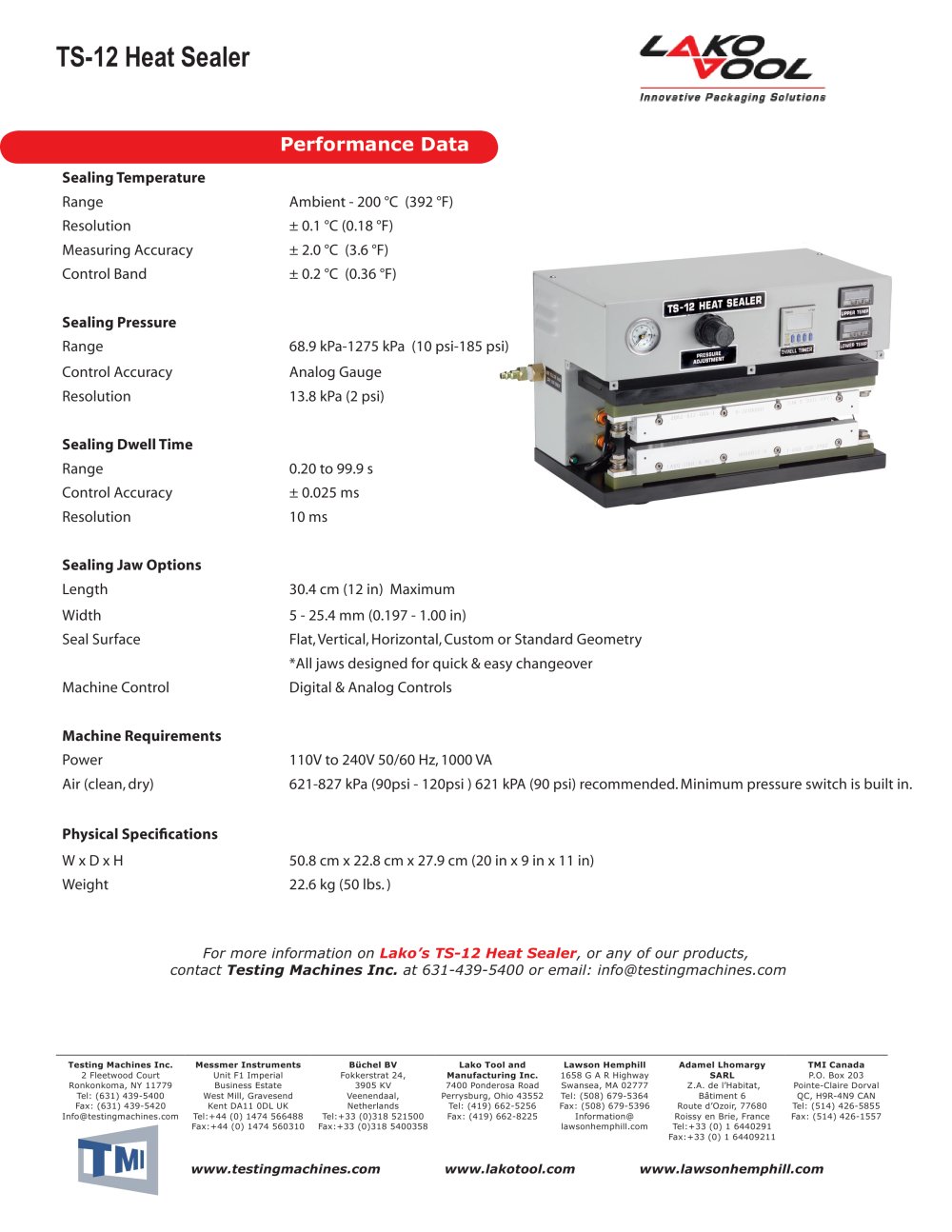

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com TS-12 Heat Sealer Sealing Temperature Range Ambient - 200 °C (392 °F) Resolution ± 0.1 °C (0.18 °F) Measuring Accuracy ± 2.0 °C (3.6 °F) Control Band ± 0.2 °C (0.36 °F) Sealing Pressure Range 68.9 kPa-1275 kPa (10 psi-185 psi) Control Accuracy Analog Gauge Resolution 13.8 kPa (2 psi) Sealing Dwell Time Range 0.20 to 99.9 s Control Accuracy ± 0.025 ms Resolution 10 ms Sealing Jaw Options Length 30.4 cm (12 in) Maximum Width 5 - 25.4 mm (0.197 - 1.00 in) Seal Surface Flat, Vertical, Horizontal, Custom or Standard Geometry *All jaws designed for quick & easy changeover Machine Control Digital & Analog Controls Machine Requirements Power 110V to 240V 50/60 Hz, 1000 VA Air (clean, dry) 621-827 kPa (90psi - 120psi ) 621 kPA (90 psi) recommended. Minimum pressure switch is built in. Physical Specifications W x D x H 50.8 cm x 22.8 cm x 27.9 cm (20 in x 9 in x 11 in) Weight 22.6 kg (50 lbs. ) Performance Data For more information on Lako’s TS-12 Heat Sealer, or any of our products, contact Testing Machines Inc. at 631-439-5400 or email: info@testingmachines.com
