Top Load Compression Tester
2Pages

{{requestButtons}}

Catalog excerpts

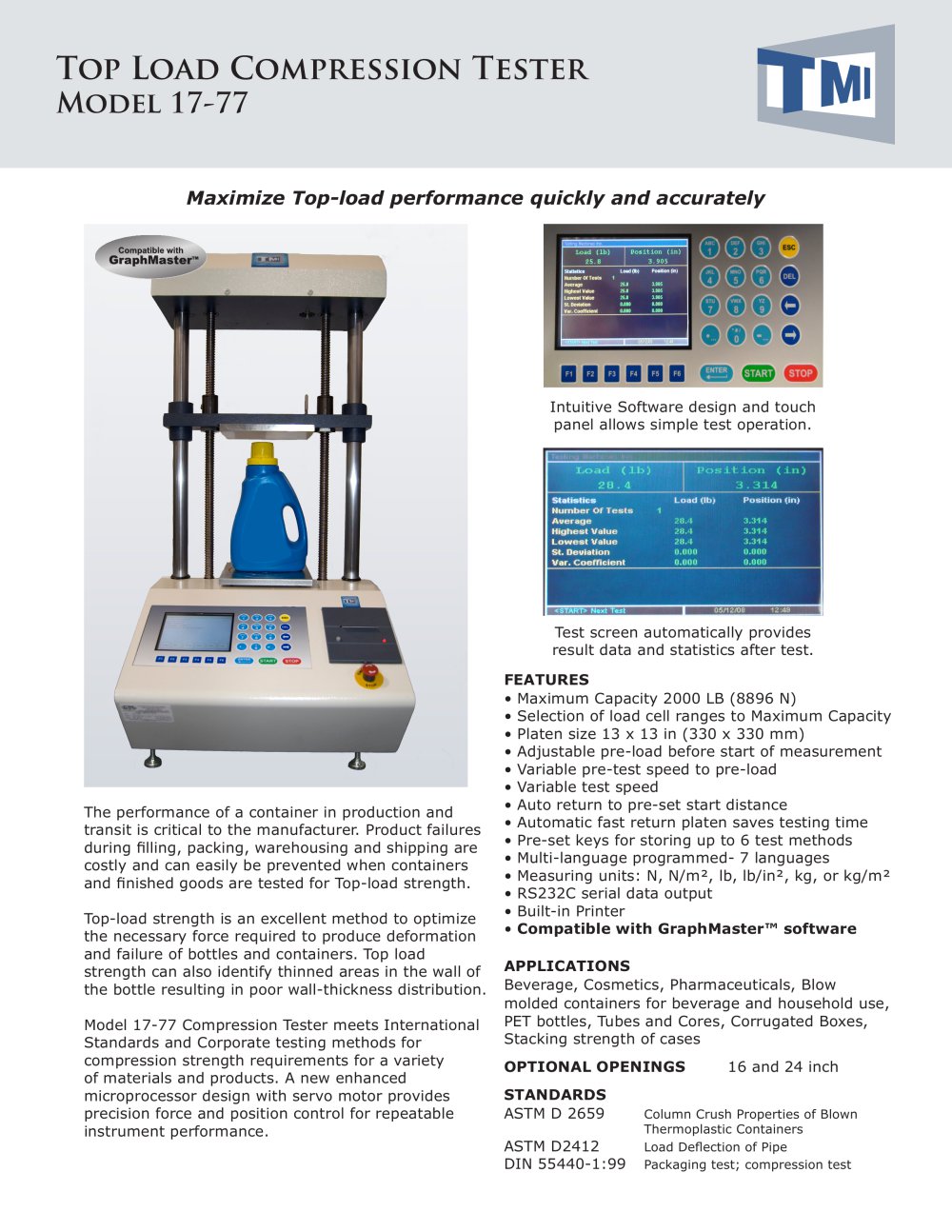

Top Load Compression Tester - 1

Top Load Compression Tester Model 17-77 Maximize Top-load performance quickly and accurately Intuitive Software design and touch panel allows simple test operation. Test screen automatically provides result data and statistics after test. The performance of a container in production and transit is critical to the manufacturer. Product failures during filling, packing, warehousing and shipping are costly and can easily be prevented when containers and finished goods are tested for Top-load strength. Top-load strength is an excellent method to optimize the necessary force required to produce deformation and failure of bottles and containers. Top load strength can also identify thinned areas in the wall of the bottle resulting in poor wall-thickness distribution. Model 17-77 Compression Tester meets International Standards and Corporate testing methods for compression strength requirements for a variety of materials and products. A new enhanced microprocessor design with servo motor provides precision force and position control for repeatable instrument performance. FEATURES • Maximum Capacity 2000 LB (8896 N) • Selection of load cell ranges to Maximum Capacity • Platen size 13 x 13 in (330 x 330 mm) • Adjustable pre-load before start of measurement • Variable pre-test speed to pre-load • Variable test speed • Auto return to pre-set start distance • Automatic fast return platen saves testing time • Pre-set keys for storing up to 6 test methods • Multi-language programmed- 7 languages • Measuring units: N, N/m², lb, lb/in², kg, or kg/m² • RS232C serial data output • Built-in Printer • Compatible with GraphMaster™ software APPLICATIONS Beverage, Cosmetics, Pharmaceuticals, Blow molded containers for beverage and household use, PET bottles, Tubes and Cores, Corrugated Boxes, Stacking strength of cases OPTIONAL OPENINGS STANDARDS ASTM D 2659 Column Crush Properties of Blown Thermoplastic Containers ASTM D2412 Load Deflection of Pipe DIN 55440-1:99 Packaging test; compression test

Open the catalog to page 1
Top Load Compression Tester - 2

Top Load Compression Tester Model 17-77 SPECIFICATIONS Model Ranges Measuring range Load Cells Stroke length Measuring units Speed Test Speed Return Speed Platen Size Upper platen Lower platen Statistics Display •Number of tests •Highest value •Lowest value •Average •Standard deviation •Variation coefficient •Max. number of tests : 100 (in one test series) Machine Requirements Power Safety Features Overload protection based on load cell in use RS232C output, Built-in Printer Internal languages English, Dutch, German, French, Spanish, Finnish, Italian (special languages on request)...

Open the catalog to page 2
