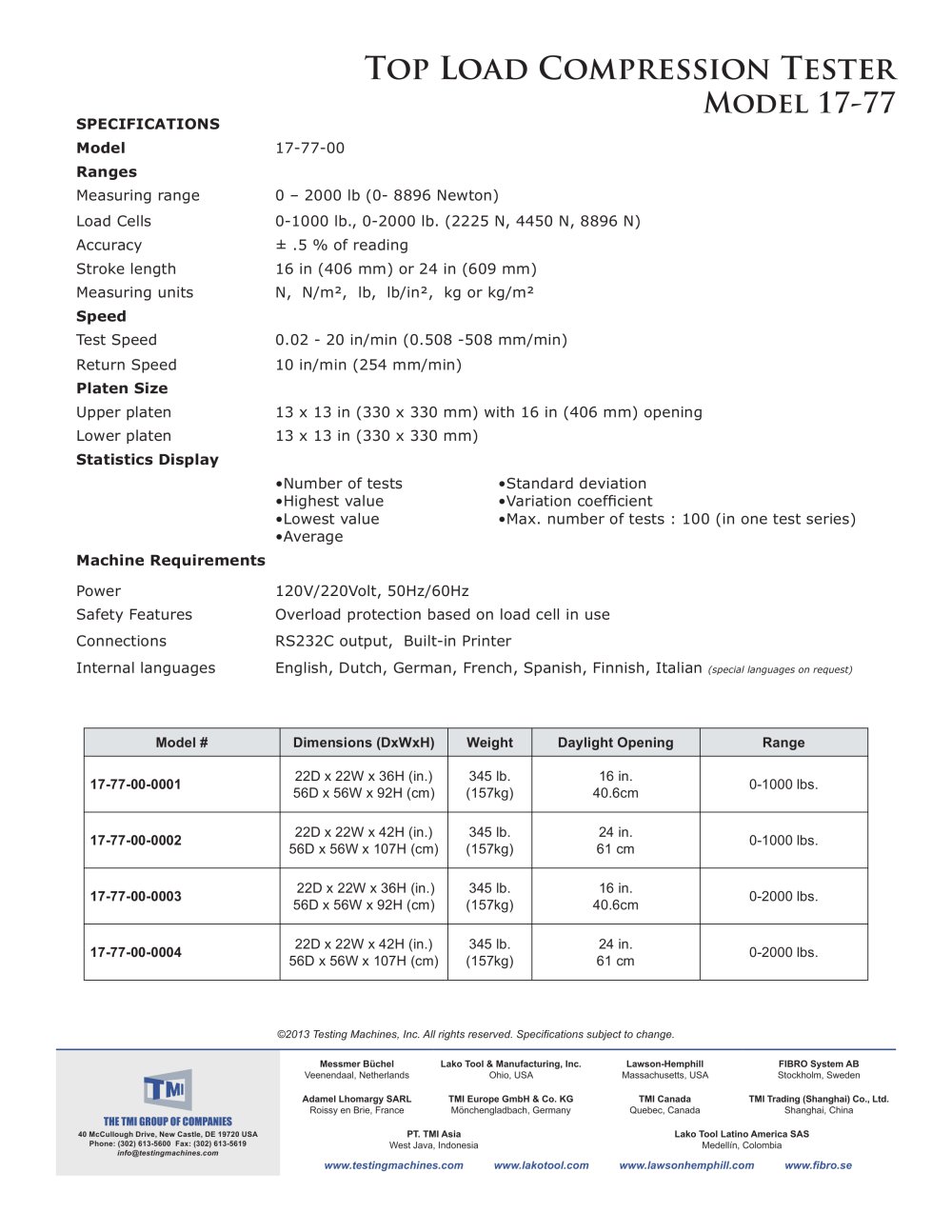

Software �£ Intuitive Software design and touch panel allows simple test operation. �£ Test screen automatically provides result data and statistics after each test. Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Büchel BV t/a Messmer Büchel Fokkerstraat 24,3905 KV Veenendaal, Netherlands Tel:+31 (0)318 521500 Fax:+31 (0)318 540358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com SPECIFICATIONS Model 17-77-00-0001 Ranges Measuring range 0 – 2000 lb (0- 8896 Newton) Load Cells 0-500 lb., 0-1000 lb., 0-2000 lb. (2225 N, 4450 N, 8896 N) Accuracy ± .5 % of reading Stroke length 16 in (406 mm) optional 20 in (508 mm) or 24 in (609 mm) Measuring units N, N/m², lb, lb/in², kg or kg/m² Speed Test Speed 0.2 - 20 in/min (5.08 -508 mm/min) Return Speed 10 in/min (254 mm/min) Platen Size Upper platen 13 x 13 in (330 x 330 mm) Lower platen 13 x 13 in (330 x 330 mm) Statistics Display •Number of tests •Highest value •Lowest value •Average •Standard deviation •Variation coefficient •Max. number of tests : 100 (in one test series) Machine Requirements Power 120V/220Volt, 50Hz/60Hz Safety Features Overload protection based on load cell in use Connections RS232C output, Built-in Printer Internal languages English - Dutch - German - French Spanish - Finnish – Italian (special languages on request)
