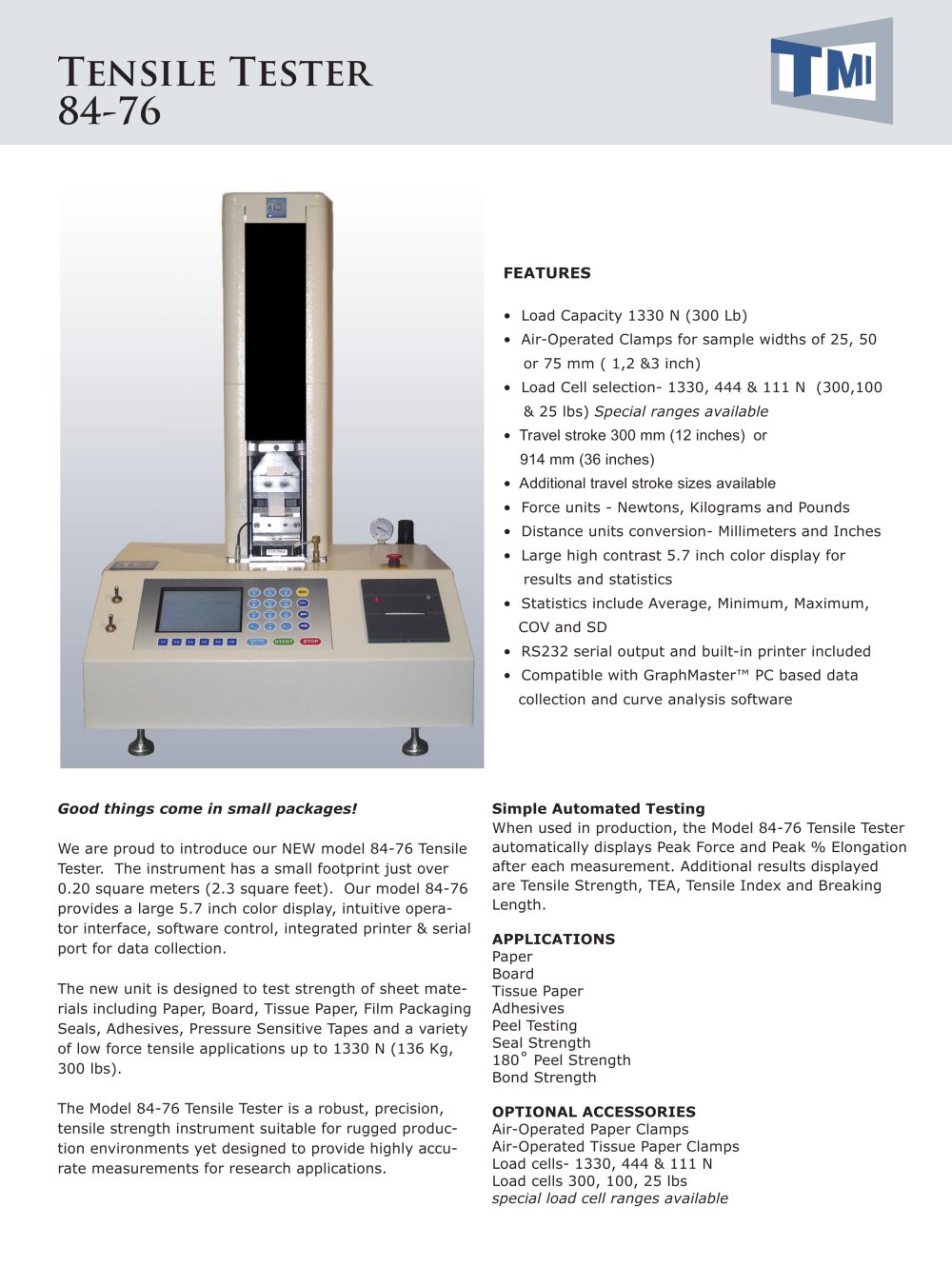

Tensile Tester - 1

Tensile Tester 84-76 FEATURES • Load Capacity 1330 N (300 Lb) • Air-Operated Clamps for sample widths of 25, 50 or 75 mm ( 1,2 &3 inch) • Load Cell selection- 1330, 444 & 111 N (300,100 & 25 lbs) Special ranges available • Travel stroke 300 mm (12 inches) or 914 mm (36 inches) • Additional travel stroke sizes available • Force units - Newtons, Kilograms and Pounds • Distance units conversion- Millimeters and Inches • Large high contrast 5.7 inch color display for results and statistics • Statistics include Average, Minimum, Maximum, COV and SD • RS232 serial output and built-in printer included • Compatible with GraphMaster™ PC based data collection and curve analysis software Good things come in small packages! We are proud to introduce our NEW model 84-76 Tensile Tester. The instrument has a small footprint just over 0.20 square meters (2.3 square feet). Our model 84-76 provides a large 5.7 inch color display, intuitive operator interface, software control, integrated printer & serial port for data collection. The new unit is designed to test strength of sheet materials including Paper, Board, Tissue Paper, Film Packaging Seals, Adhesives, Pressure Sensitive Tapes and a variety of low force tensile applications up to 1330 N (136 Kg, 300 lbs). The Model 84-76 Tensile Tester is a robust, precision, tensile strength instrument suitable for rugged production environments yet designed to provide highly accurate measurements for research applications. Simple Automated Testing When used in production, the Model 84-76 Tensile Tester automatically displays Peak Force and Peak % Elongation after each measurement. Additional results displayed are Tensile Strength, TEA, Tensile Index and Breaking Length. APPLICATIONS Paper Board Tissue Paper Adhesives Peel Testing Seal Strength 180¢ª Peel Strength Bond Strength OPTIONAL ACCESSORIES Air-Operated Paper Clamps Air-Operated Tissue Paper Clamps Load cells- 1330, 444 & 111 N Load cells 300, 100, 25 lbs special load cell ranges available

Open the catalog to page 1
Tensile Tester - 2

Tensile Tester 84-76 Software Model 84-76 incorporates a new microcontroller design with a stepper motor which provides precision position control for repeatable instrument performance. An intuitive control panel and large 5.7 inch color display provides easy operation of the testing. Intuitive Software design makes test screen set-up and navigation quick and accurate. Software allows the operator to develop, store and recall commonly used test methods for easy access thus reducing operator error. Test method storage also insures correct settings of critical parameters resulting in...

Open the catalog to page 2
Tensile Tester - 3

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Büchel BV t/a Messmer Büchel Fokkerstraat 24,3905 KV Veenendaal, Netherlands Tel:+31 (0)318 521500 Fax:+31 (0)318 540358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1...

Open the catalog to page 3
