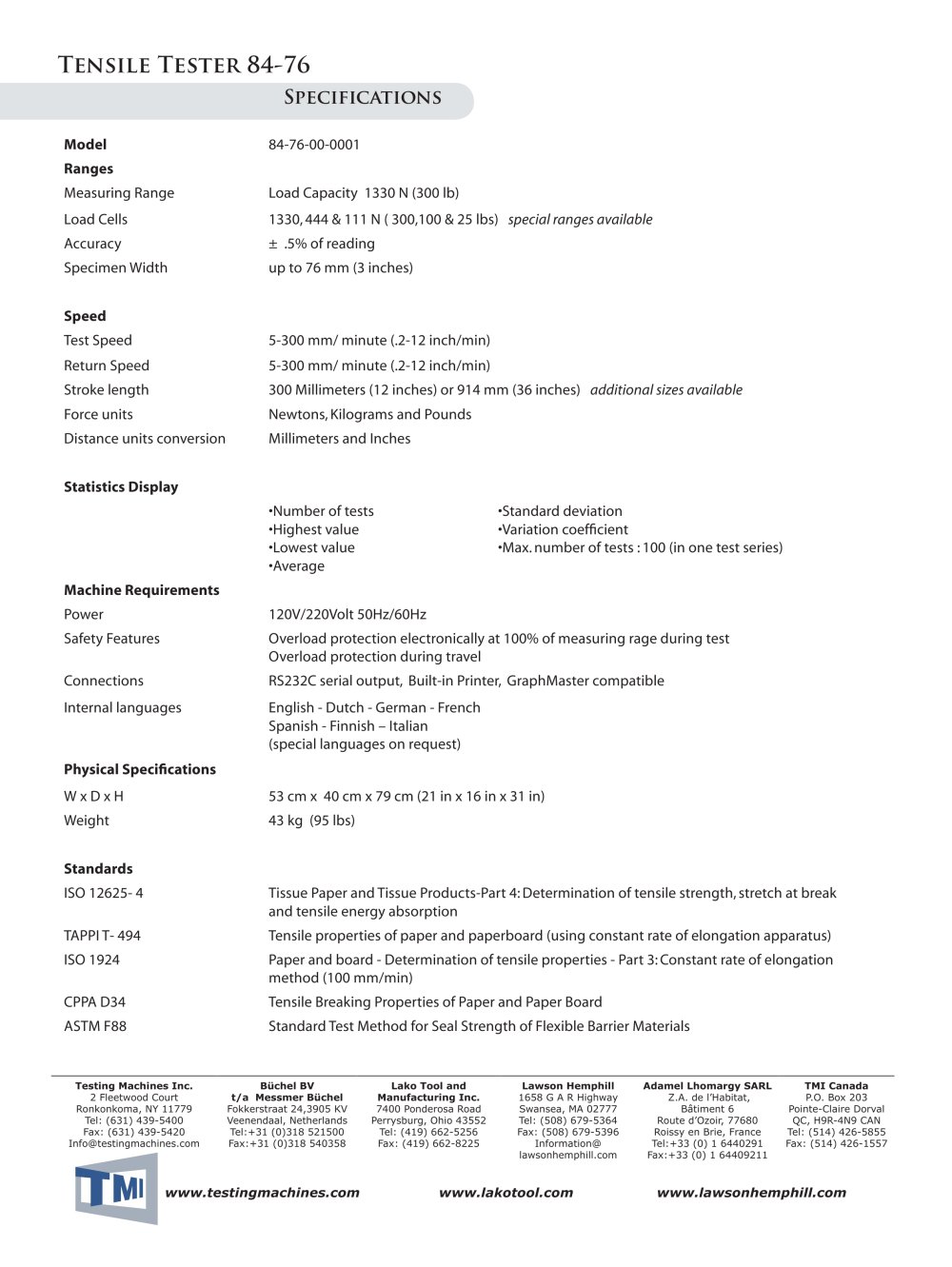

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Büchel BV t/a Messmer Büchel Fokkerstraat 24,3905 KV Veenendaal, Netherlands Tel:+31 (0)318 521500 Fax:+31 (0)318 540358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com Tensile Tester 84-76 Specifications Model 84-76-00-0001 Ranges Measuring Range Load Capacity 1330 N (300 lb) Load Cells 1330, 444 & 111 N ( 300,100 & 25 lbs) special ranges available Accuracy ± .5% of reading Specimen Width up to 76 mm (3 inches) Speed Test Speed 5-300 mm/ minute (.2-12 inch/min) Return Speed 5-300 mm/ minute (.2-12 inch/min) Stroke length 300 Millimeters (12 inches) or 914 mm (36 inches) additional sizes available Force units Newtons, Kilograms and Pounds Distance units conversion Millimeters and Inches Statistics Display •Number of tests •Highest value •Lowest value •Average •Standard deviation •Variation coefficient •Max. number of tests : 100 (in one test series) Machine Requirements Power 120V/220Volt 50Hz/60Hz Safety Features Overload protection electronically at 100% of measuring rage during test Overload protection during travel Connections RS232C serial output, Built-in Printer, GraphMaster compatible Internal languages English - Dutch - German - French Spanish - Finnish – Italian (special languages on request) Physical Specifications W x D x H 53 cm x 40 cm x 79 cm (21 in x 16 in x 31 in) Weight 43 kg (95 lbs) Standards ISO 12625- 4 Tissue Paper and Tissue Products-Part 4: Determination of tensile strength, stretch at break and tensile energy absorption TAPPI T- 494 Tensile properties of paper and paperboard (using constant rate of elongation apparatus) ISO 1924 Paper and board - Determination of tensile properties - Part 3: Constant rate of elongation method (100 mm/min) CPPA D34 Tensile Breaking Properties of Paper and Paper Board ASTM F88 Standard Test Method for Seal Strength of Flexible Barrier Materials
