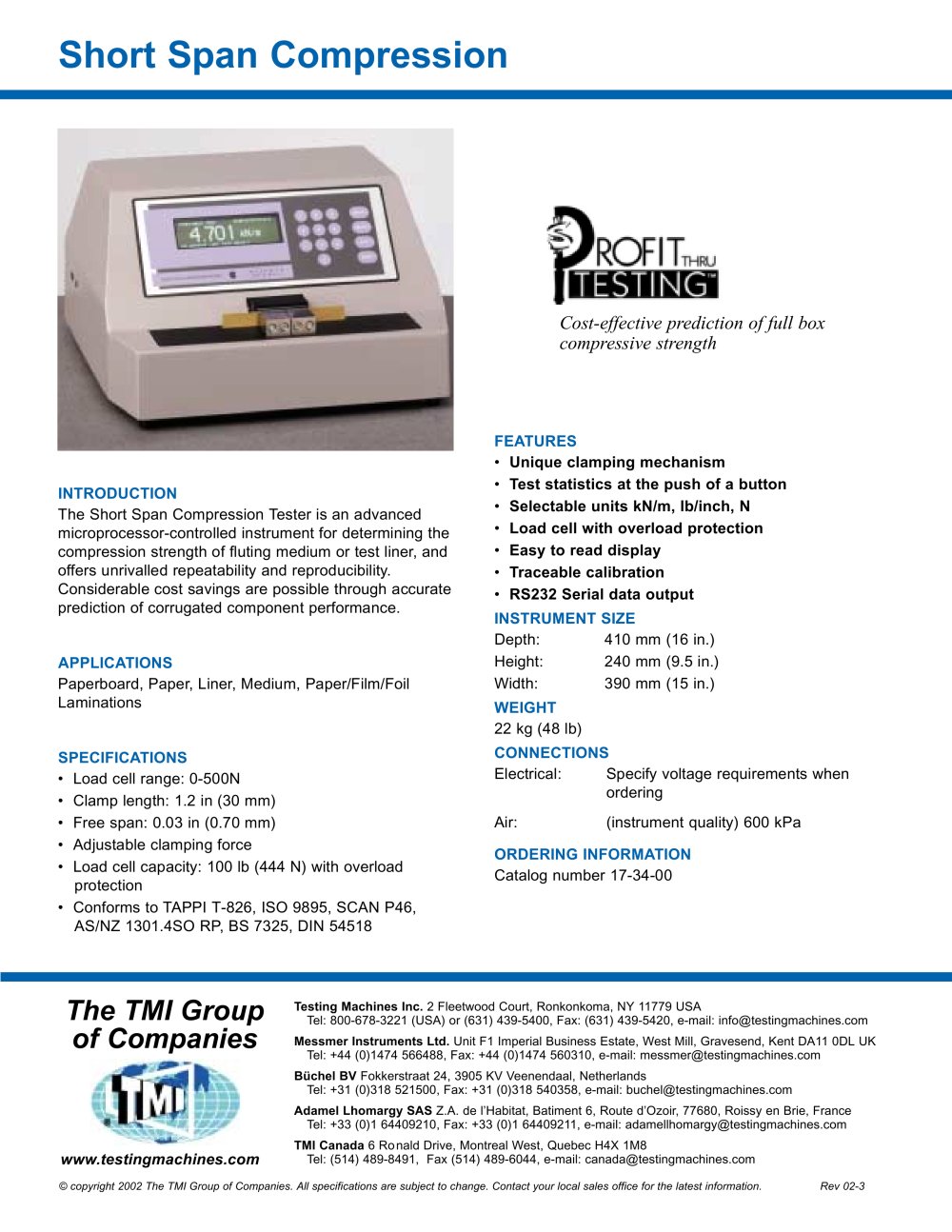

Short Span Compression Cost-effective prediction of full box compressive strength INTRODUCTION The Short Span Compression Tester is an advanced microprocessor-controlled instrument for determining the compression strength of fluting medium or test liner, and offers unrivalled repeatability and reproducibility. Considerable cost savings are possible through accurate prediction of corrugated component performance. APPLICATIONS Paperboard, Paper, Liner, Medium, Paper/Film/Foil Laminations SPECIFICATIONS • Load cell range: 0-500N • Clamp length: 1.2 in (30 mm) • Free span: 0.03 in (0.70 mm) • Adjustable clamping force • Load cell capacity: 100 lb (444 N) with overload protection • Conforms to TAPPI T-826, ISO 9895, SCAN P46, AS/NZ 1301.4SO RP, BS 7325, DIN 54518 The TMI Group of Companies FEATURES • Unique clamping mechanism • Test statistics at the push of a button • Selectable units kN/m, lb/inch, N • Load cell with overload protection • Easy to read display • Traceable calibration • RS232 Serial data output INSTRUMENT Depth: Height: Width: SIZE 410 mm (16 in.) 240 mm (9.5 in.) 390 mm (15 in.) WEIGHT 22 kg (48 lb) CONNECTIONS Electrical: Specify voltage requirements when ordering Air: (instrument quality) 600 kPa ORDERING INFORMATION Catalog number 17-34-00 Testing Machines Inc. 2 Fleetwood Court, Ronkonkoma, NY 11779 USA Tel: 800-678-3221 (USA) or (631) 439-5400, Fax: (631) 439-5420, e-mail: info@testingmachines.com Messmer Instruments Ltd. Unit F1 Imperial Business Estate, West Mill, Gravesend, Kent DA11 0DL UK Tel: +44 (0)1474 566488, Fax: +44 (0)1474 560310, e-mail: messmer@testingmachines.com Büchel BV Fokkerstraat 24, 3905 KV Veenendaal, Netherlands Tel: +31 (0)318 521500, Fax: +31 (0)318 540358, e-mail: buchel@testingmachines.com Adamel Lhomargy SAS Z.A. de l’Habitat, Batiment 6, Route d’Ozoir, 77680, Roissy en Brie, France Tel: +33 (0)1 64409210, Fax: +33 (0)1 64409211, e-mail: adamellhomargy@testingmachines.com www.testingmachines.com TMI Canada 6 Ro nald Drive, Montreal West, Quebec H4X 1M8 Tel: (514) 489-8491, Fax (514) 489-6044, e-mail: canada@testingmachines.com © copyright 2002 The TMI Group of Companies. All specifications are subject to change. Contact your local sales office for the latest information. Rev 02-3
