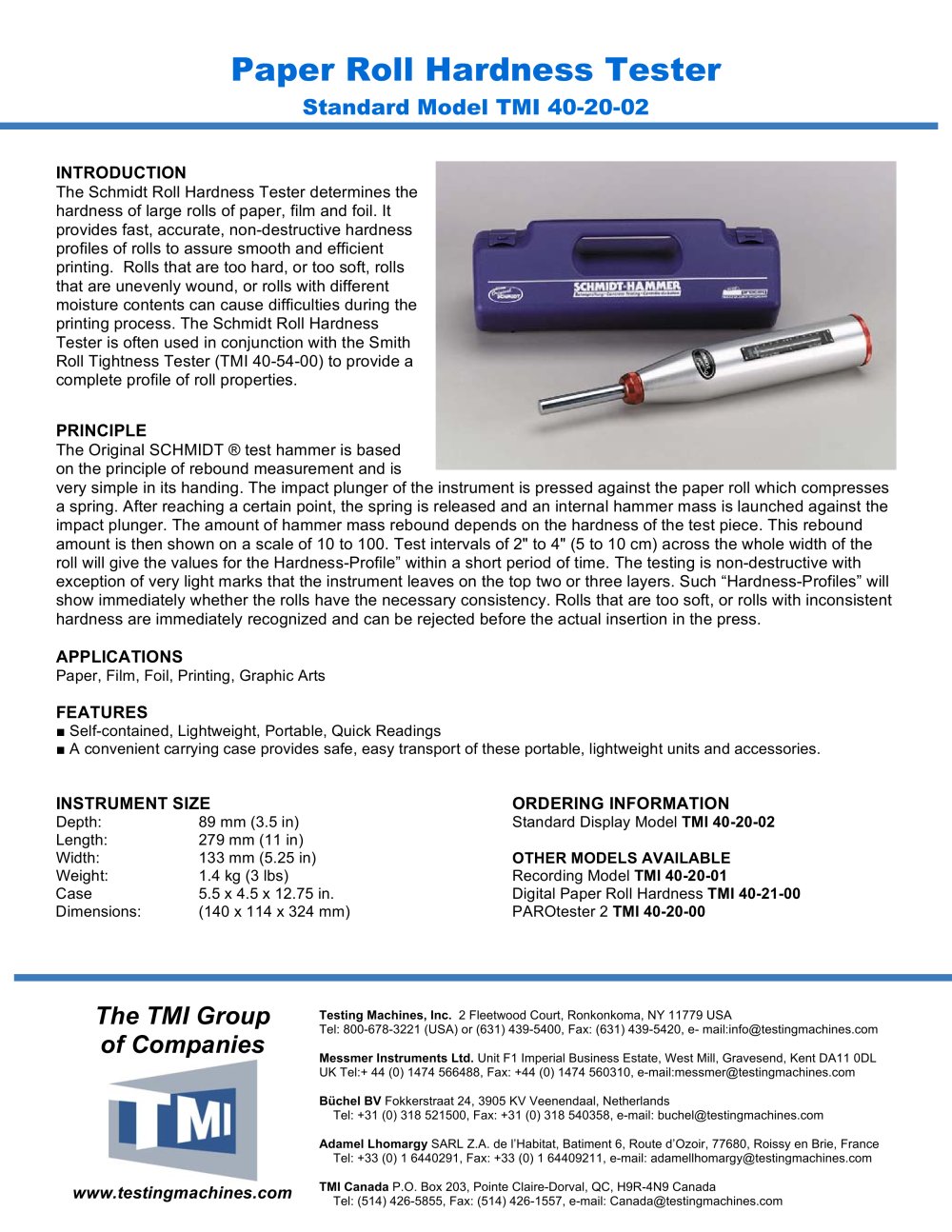

| Paper Roll Hardness Tester Standard Model TMI 40-20-02 | |||||||||||||||||||
| INTRODUCTION The Schmidt Roll Hardness Tester determines the hardness of large rolls of paper, film and foil. It provides fast, accurate, non-destructive hardness profiles of rolls to assure smooth and efficient printing. Rolls that are too hard, or too soft, rolls that are unevenly wound, or rolls with different moisture contents can cause difficulties during the printing process. The Schmidt Roll Hardness Tester is often used in conjunction with the Smith Roll Tightness Tester (TMI 40-54-00) to provide a complete profile of roll properties. | |||||||||||||||||||
| PRINCIPLE The Original SCHMIDT ® test hammer is based on the principle of rebound measurement and is very simple in its handing. The impact plunger of the instrument is pressed against the paper roll which compresses a spring. After reaching a certain point, the spring is released and an internal hammer mass is launched against the impact plunger. The amount of hammer mass rebound depends on the hardness of the test piece. This rebound amount is then shown on a scale of 10 to 100. Test intervals of 2" to 4" (5 to 10 cm) across the whole width of the roll will give the values for the Hardness-Profile" within a short period of time. The testing is non-destructive with exception of very light marks that the instrument leaves on the top two or three layers. Such "Hardness-Profiles" will show immediately whether the rolls have the necessary consistency. Rolls that are too soft, or rolls with inconsistent hardness are immediately recognized and can be rejected before the actual insertion in the press. APPLICATIONS Paper, Film, Foil, Printing, Graphic Arts FEATURES ■ Self-contained, Lightweight, Portable, Quick Readings ■ A convenient carrying case provides safe, easy transport of these portable, lightweight units and accessories. | |||||||||||||||||||
| INSTRUMENT SIZE Depth: 89 mm (3.5 in) Length: 279 mm (11 in) Width: 133 mm (5.25 in) Weight: 1.4 kg (3 lbs) Case 5.5 x 4.5 x 12.75 in. Dimensions: (140 x 114 x 324 mm) | ORDERING INFORMATION Standard Display Model TMI 40-20-02 OTHER MODELS AVAILABLE Recording Model TMI 40-20-01 Digital Paper Roll Hardness TMI 40-21-00 PAROtester 2 TMI 40-20-00 | ||||||||||||||||||
| The TMI Group of Companies | |||||||||||||||||||
| Testing Machines, Inc. 2 Fleetwood Court, Ronkonkoma, NY 11779 USA Tel: 800-678-3221 (USA) or (631) 439-5400, Fax: (631) 439-5420, e- mail:info@testingmachines.com Messmer Instruments Ltd. Unit F1 Imperial Business Estate, West Mill, Gravesend, Kent DA11 0DL UK Tel:+ 44 (0) 1474 566488, Fax: +44 (0) 1474 560310, e-mail:messmer@testingmachines.com Büchel BV Fokkerstraat 24, 3905 KV Veenendaal, Netherlands Tel: +31 (0) 318 521500, Fax: +31 (0) 318 540358, e-mail: buchel@testingmachines.com Adamel Lhomargy SARL Z.A. de l'Habitat, Batiment 6, Route d'Ozoir, 77680, Roissy en Brie, France Tel: +33 (0) 1 6440291, Fax: +33 (0) 1 64409211, e-mail: adamellhomargy@testingmachines.com | |||||||||||||||||||
| TMI Canada P.O. Box 203, Pointe Claire-Dorval, QC, H9R-4N9 Canada Tel: (514) 426-5855, Fax: (514) 426-1557, e-mail: Canada@testingmachines.com | |||||||||||||||||||
| www.testingmachines.com | |||||||||||||||||||
