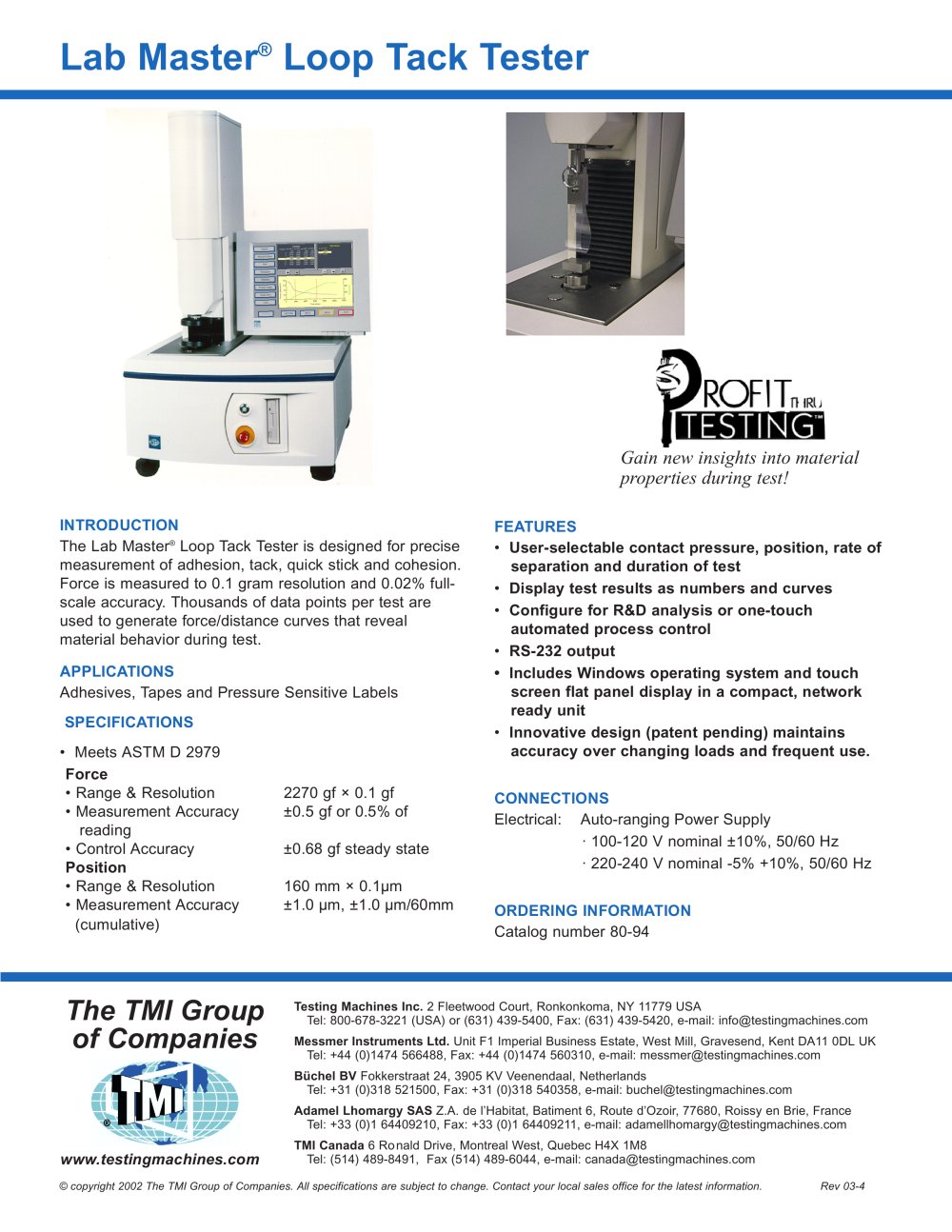

Lab Master® Loop Tack Tester Gain new insights into material properties during test! INTRODUCTION The Lab Master® Loop Tack Tester is designed for precise measurement of adhesion, tack, quick stick and cohesion. Force is measured to 0.1 gram resolution and 0.02% fullscale accuracy. Thousands of data points per test are used to generate force/distance curves that reveal material behavior during test. APPLICATIONS Adhesives, Tapes and Pressure Sensitive Labels SPECIFICATIONS • Meets ASTM D 2979 Force • Range & Resolution • Measurement Accuracy reading • Control Accuracy Position • Range & Resolution • Measurement Accuracy (cumulative) The TMI Group of Companies 2270 gf × 0.1 gf ±0.5 gf or 0.5% of ±0.68 gf steady state 160 mm × 0.1µm ±1.0 µm, ±1.0 µm/60mm FEATURES • User-selectable contact pressure, position, rate of separation and duration of test • Display test results as numbers and curves • Configure for R&D analysis or one-touch automated process control • RS-232 output • Includes Windows operating system and touch screen flat panel display in a compact, network ready unit • Innovative design (patent pending) maintains accuracy over changing loads and frequent use. CONNECTIONS Electrical: Auto-ranging Power Supply · 100-120 V nominal ±10%, 50/60 Hz · 220-240 V nominal -5% +10%, 50/60 Hz ORDERING INFORMATION Catalog number 80-94 Testing Machines Inc. 2 Fleetwood Court, Ronkonkoma, NY 11779 USA Tel: 800-678-3221 (USA) or (631) 439-5400, Fax: (631) 439-5420, e-mail: [email protected] Messmer Instruments Ltd. Unit F1 Imperial Business Estate, West Mill, Gravesend, Kent DA11 0DL UK Tel: +44 (0)1474 566488, Fax: +44 (0)1474 560310, e-mail: [email protected] Büchel BV Fokkerstraat 24, 3905 KV Veenendaal, Netherlands Tel: +31 (0)318 521500, Fax: +31 (0)318 540358, e-mail: [email protected] Adamel Lhomargy SAS Z.A. de l’Habitat, Batiment 6, Route d’Ozoir, 77680, Roissy en Brie, France Tel: +33 (0)1 64409210, Fax: +33 (0)1 64409211, e-mail: [email protected] www.testingmachines.com TMI Canada 6 Ro nald Drive, Montreal West, Quebec H4X 1M8 Tel: (514) 489-8491, Fax (514) 489-6044, e-mail: [email protected] © copyright 2002 The TMI Group of Companies. All specifications are subject to change. Contact your local sales office for the latest information. Rev 03-4

Lab Master® Loop Tack Tester Force (tension and compression) Overload rating Travel (maximum) Position Resolution Position Repeatability Position Accuracy Position Accuracy (cumulative) Accuracy (steady state) Throat depth Number of repeat cycles Data Acquisition rate TFT flat panel touch screen Physical Dimensions Working surface height Electrical Characteristics Supply voltage (universal) Environmental Range Temperature (operating) Temperature (storage) Humidity (operating and storage) Other force ranges available Testing Machines Inc. 2 Fleetwood Court, Ronkonkoma, NY 11779 USA Messmer Instruments...
