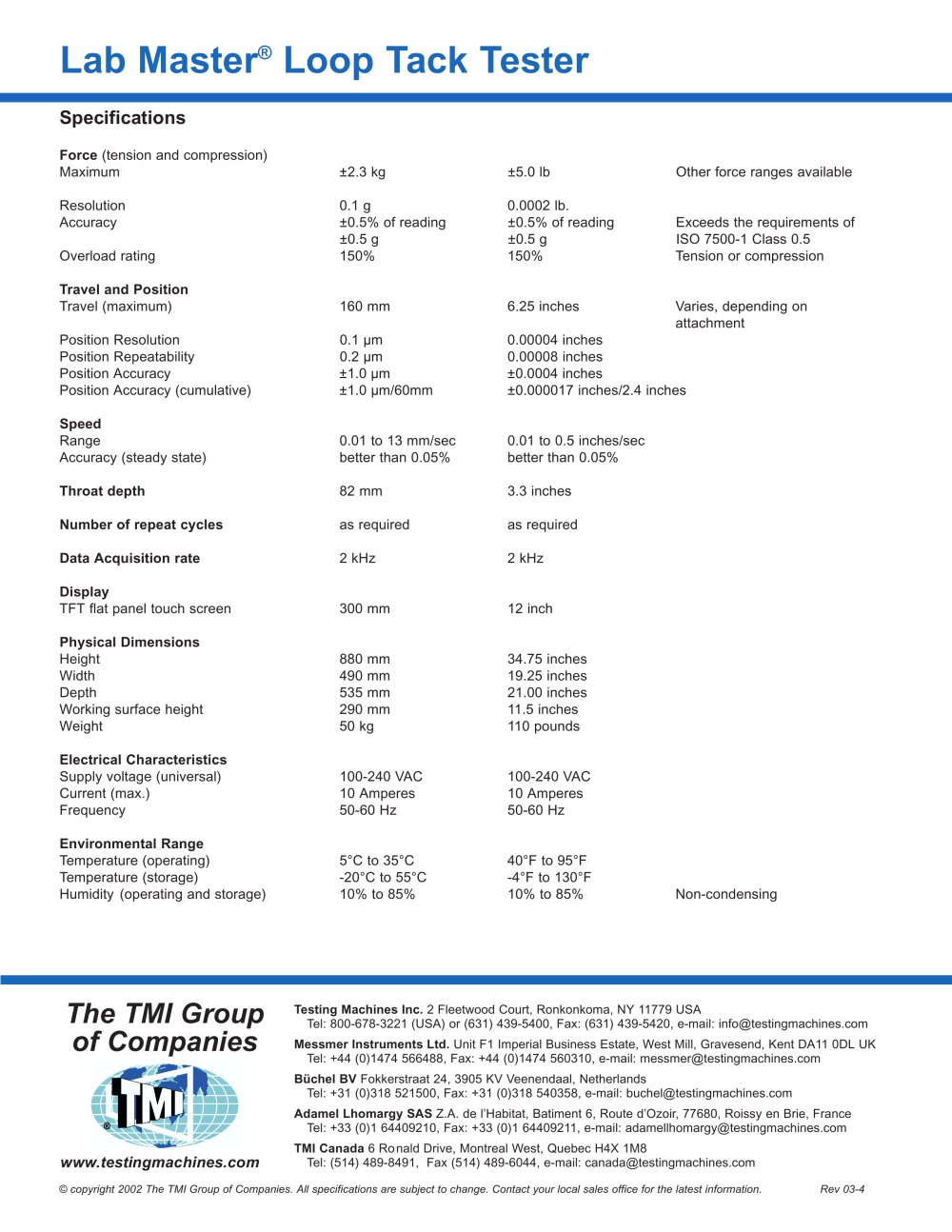

www.testingmachines.com The TMI Group of Companies Testing Machines Inc. 2 Fleetwood Court, Ronkonkoma, NY 11779 USA Tel: 800-678-3221 (USA) or (631) 439-5400, Fax: (631) 439-5420, e-mail: info@testingmachines.com Messmer Instruments Ltd. Unit F1 Imperial Business Estate, West Mill, Gravesend, Kent DA11 0DL UK Tel: +44 (0)1474 566488, Fax: +44 (0)1474 560310, e-mail: messmer@testingmachines.com Büchel BV Fokkerstraat 24, 3905 KV Veenendaal, Netherlands Tel: +31 (0)318 521500, Fax: +31 (0)318 540358, e-mail: buchel@testingmachines.com Adamel Lhomargy SAS Z.A. de l’Habitat, Batiment 6, Route d’Ozoir, 77680, Roissy en Brie, France Tel: +33 (0)1 64409210, Fax: +33 (0)1 64409211, e-mail: adamellhomargy@testingmachines.com TMI Canada 6 Ronald Drive, Montreal West, Quebec H4X 1M8 Tel: (514) 489-8491, Fax (514) 489-6044, e-mail: canada@testingmachines.com © copyright 2002 The TMI Group of Companies. All specifications are subject to change. Contact your local sales office for the latest information. Rev 03-4 Specifications Force (tension and compression) Maximum ±2.3 kg ±5.0 lb Other force ranges available Resolution 0.1 g 0.0002 lb. Accuracy ±0.5% of reading ±0.5% of reading Exceeds the requirements of ±0.5 g ±0.5 g ISO 7500-1 Class 0.5 Overload rating 150% 150% Tension or compression Travel and Position Travel (maximum) 160 mm 6.25 inches Varies, depending on attachment Position Resolution 0.1 ìm 0.00004 inches Position Repeatability 0.2 ìm 0.00008 inches Position Accuracy ±1.0 ìm ±0.0004 inches Position Accuracy (cumulative) ±1.0 ìm/60mm ±0.000017 inches/2.4 inches Speed Range 0.01 to 13 mm/sec 0.01 to 0.5 inches/sec Accuracy (steady state) better than 0.05% better than 0.05% Throat depth 82 mm 3.3 inches Number of repeat cycles as required as required Data Acquisition rate 2 kHz 2 kHz Display TFT flat panel touch screen 300 mm 12 inch Physical Dimensions Height 880 mm 34.75 inches Width 490 mm 19.25 inches Depth 535 mm 21.00 inches Working surface height 290 mm 11.5 inches Weight 50 kg 110 pounds Electrical Characteristics Supply voltage (universal) 100-240 VAC 100-240 VAC Current (max.) 10 Amperes 10 Amperes Frequency 50-60 Hz 50-60 Hz Environmental Range Temperature (operating) 5°C to 35°C 40°F to 95°F Temperature (storage) -20°C to 55°C -4°F to 130°F Humidity (operating and storage) 10% to 85% 10% to 85% Non-condensing Lab Master® Loop Tack Tester
