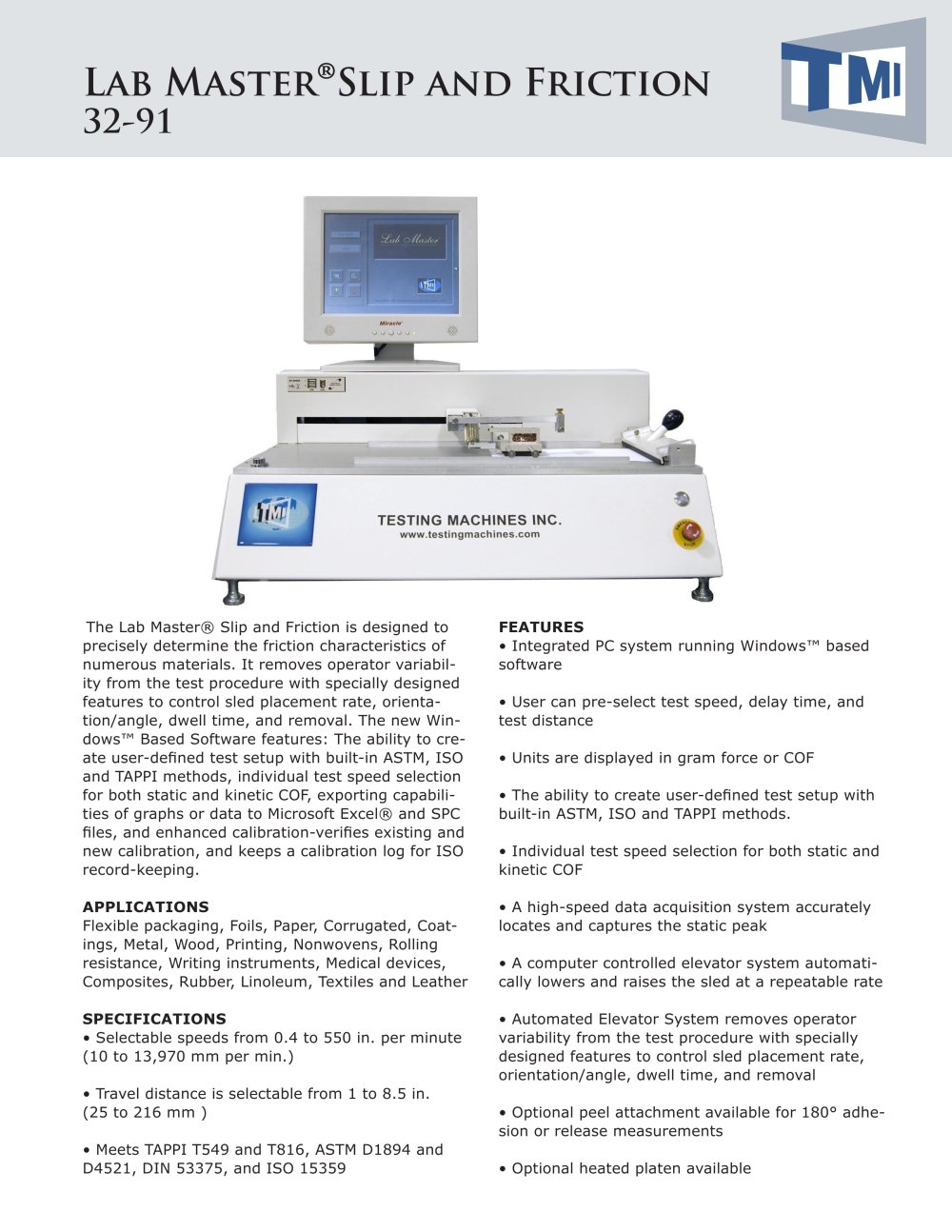

LabMaster Slip Friction - 1

Lab Master®Slip and Friction 32-91 The Lab Master® Slip and Friction is designed to precisely determine the friction characteristics of numerous materials. It removes operator variability from the test procedure with specially designed features to control sled placement rate, orientation/ angle, dwell time, and removal. The new Windows ™ Based Software features: The ability to create user-defined test setup with built-in ASTM, ISO and TAPPI methods, individual test speed selection for both static and kinetic COF, exporting capabilities of graphs or data to Microsoft Excel® and SPC files, and enhanced calibration-verifies existing and new calibration, and keeps a calibration log for ISO record-keeping. APPLICATIONS Flexible packaging, Foils, Paper, Corrugated, Coatings, Metal, Wood, Printing, Nonwovens, Rolling resistance, Writing instruments, Medical devices, Composites, Rubber, Linoleum, Textiles and Leather SPECIFICATIONS • Selectable speeds from 0.4 to 550 in. per minute (10 to 13,970 mm per min.) • Travel distance is selectable from 1 to 8.5 in. (25 to 216 mm ) • Meets TAPPI T549 and T816, ASTM D1894 and D4521, DIN 53375, and ISO 15359 FEATURES • Integrated PC system running Windows™ based software • User can pre-select test speed, delay time, and test distance • Units are displayed in gram force or COF • The ability to create user-defined test setup with built-in ASTM, ISO and TAPPI methods. • Individual test speed selection for both static and kinetic COF • A high-speed data acquisition system accurately locates and captures the static peak • A computer controlled elevator system automatically lowers and raises the sled at a repeatable rate • Automated Elevator System removes operator variability from the test procedure with specially designed features to control sled placement rate, orientation/angle, dwell time, and removal • Optional peel attachment available for 180° adhesion or release measurements • Optional heated platen available

Open the catalog to page 1
LabMaster Slip Friction - 2

Main Headquarters Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 USA Tel: (508) 679-5364 Fax: (508)...
