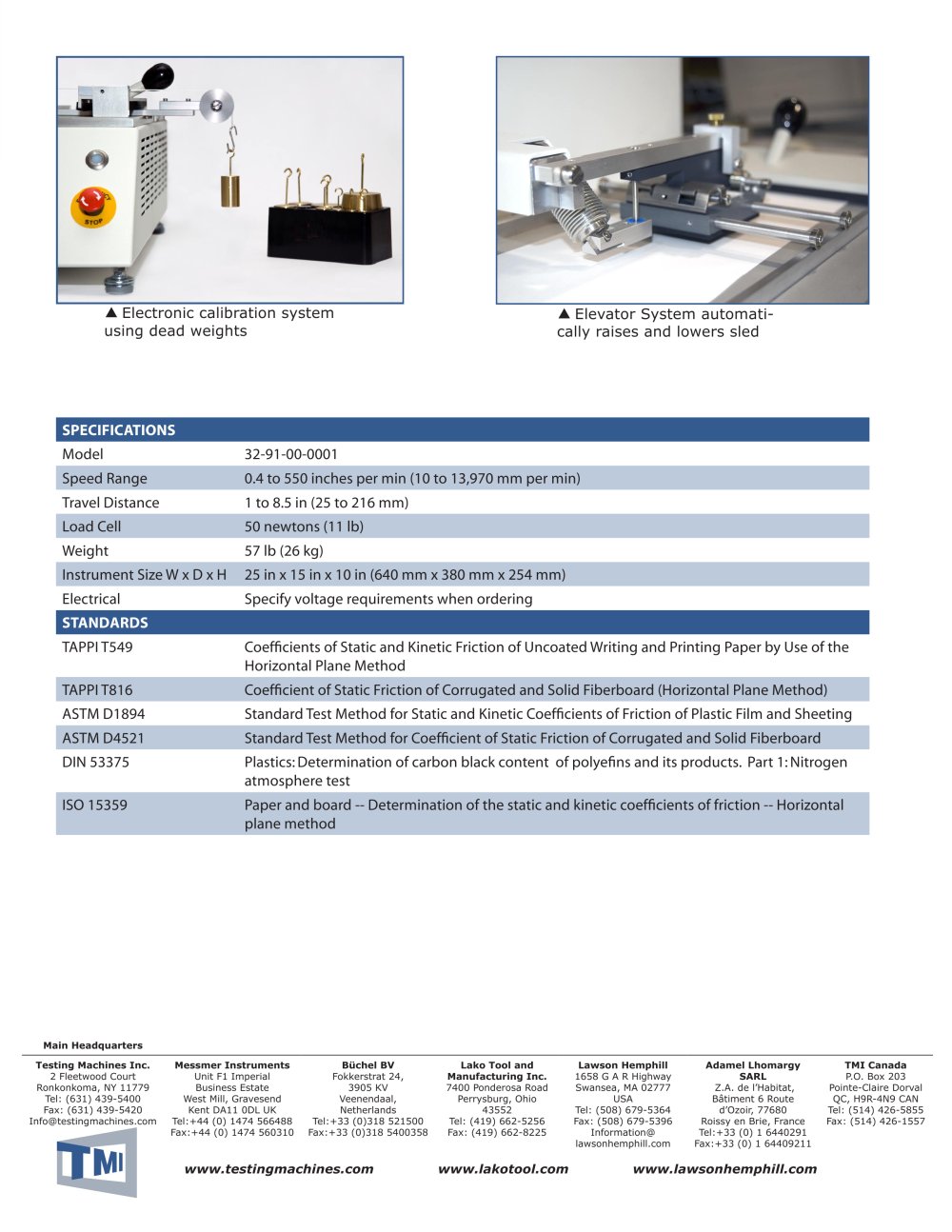

LabMaster Slip Friction - Testing Machines Inc - #2

Text version of the page

Main Headquarters Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 USA Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com SPECIFICATIONS Model 32-91-00-0001 Speed Range 0.4 to 550 inches per min (10 to 13,970 mm per min) Travel Distance 1 to 8.5 in (25 to 216 mm) Load Cell 50 newtons (11 lb) Weight 57 lb (26 kg) Instrument Size W x D x H 25 in x 15 in x 10 in (640 mm x 380 mm x 254 mm) Electrical Specify voltage requirements when ordering STANDARDS TAPPI T549 Coefficients of Static and Kinetic Friction of Uncoated Writing and Printing Paper by Use of the Horizontal Plane Method TAPPI T816 Coefficient of Static Friction of Corrugated and Solid Fiberboard (Horizontal Plane Method) ASTM D1894 Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting ASTM D4521 Standard Test Method for Coefficient of Static Friction of Corrugated and Solid Fiberboard DIN 53375 Plastics: Determination of carbon black content of polyefins and its products. Part 1: Nitrogen atmosphere test ISO 15359 Paper and board -- Determination of the static and kinetic coefficients of friction -- Horizontal plane method �£ Electronic calibration system using dead weights �£ Elevator System automatically raises and lowers sled
