Internal Bond tester - Testing Machines Inc - #4

Text version of the page

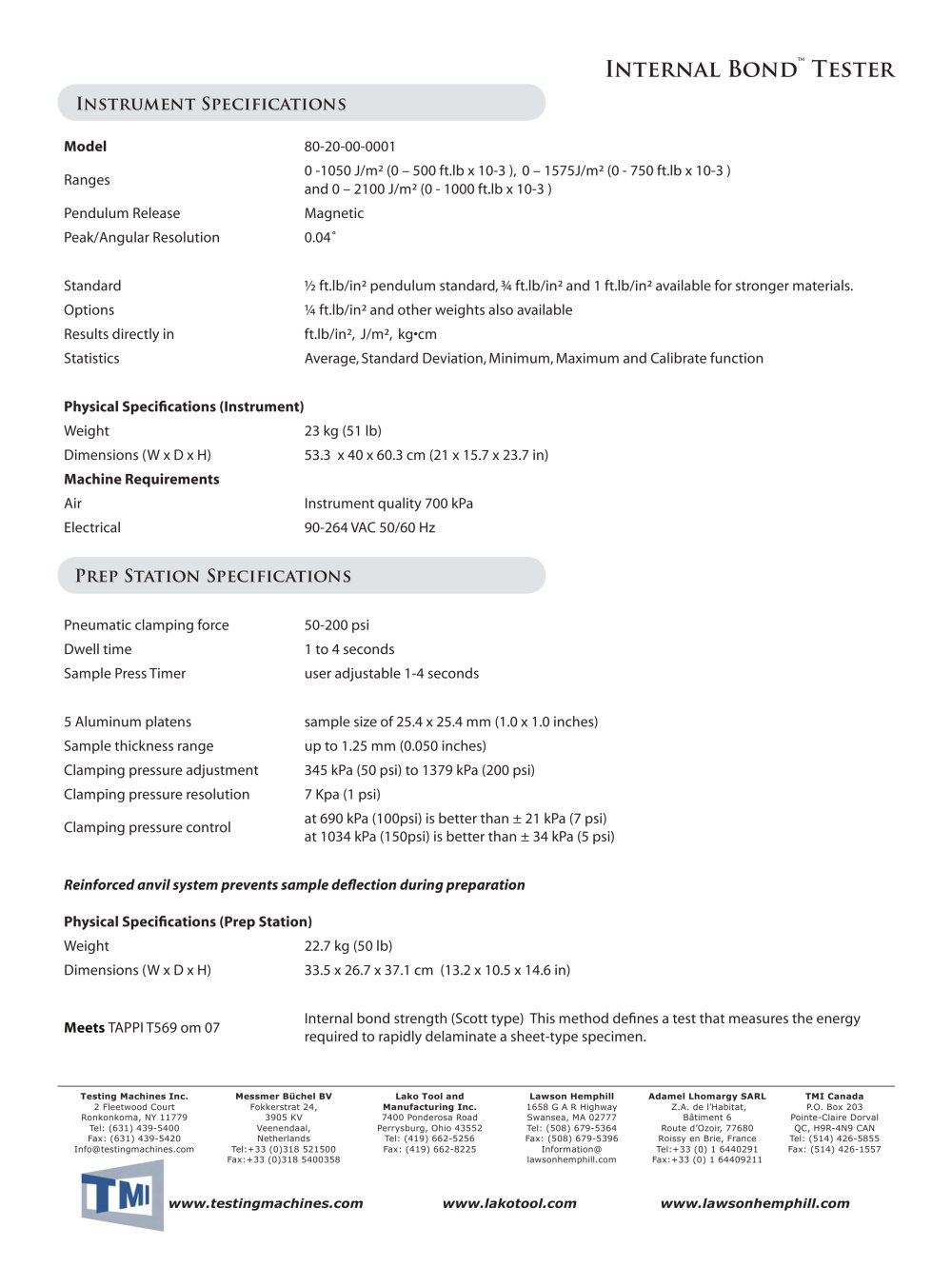

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com Model 80-20-00-0001 Ranges 0 -1050 J/m² (0 – 500 ft.lb x 10-3 ), 0 – 1575J/m² (0 - 750 ft.lb x 10-3 ) and 0 – 2100 J/m² (0 - 1000 ft.lb x 10-3 ) Pendulum Release Magnetic Peak/Angular Resolution 0.04¢ª Standard ½ ft.lb/in² pendulum standard, ¾ ft.lb/in² and 1 ft.lb/in² available for stronger materials. Options ¼ ft.lb/in² and other weights also available Results directly in ft.lb/in², J/m², kg•cm Statistics Average, Standard Deviation, Minimum, Maximum and Calibrate function Physical Specifications (Instrument) Weight 23 kg (51 lb) Dimensions (W x D x H) 53.3 x 40 x 60.3 cm (21 x 15.7 x 23.7 in) Machine Requirements Air Instrument quality 700 kPa Electrical 90-264 VAC 50/60 Hz Prep Station Specifications Pneumatic clamping force 50-200 psi Dwell time 1 to 4 seconds Sample Press Timer user adjustable 1-4 seconds 5 Aluminum platens sample size of 25.4 x 25.4 mm (1.0 x 1.0 inches) Sample thickness range up to 1.25 mm (0.050 inches) Clamping pressure adjustment 345 kPa (50 psi) to 1379 kPa (200 psi) Clamping pressure resolution 7 Kpa (1 psi) Clamping pressure control at 690 kPa (100psi) is better than ± 21 kPa (7 psi) at 1034 kPa (150psi) is better than ± 34 kPa (5 psi) Reinforced anvil system prevents sample deflection during preparation Physical Specifications (Prep Station) Weight 22.7 kg (50 lb) Dimensions (W x D x H) 33.5 x 26.7 x 37.1 cm (13.2 x 10.5 x 14.6 in) Meets TAPPI T569 om 07 Internal bond strength (Scott type) This method defines a test that measures the energy required to rapidly delaminate a sheet-type specimen. Internal Bond™ Tester Instrument Specifications
