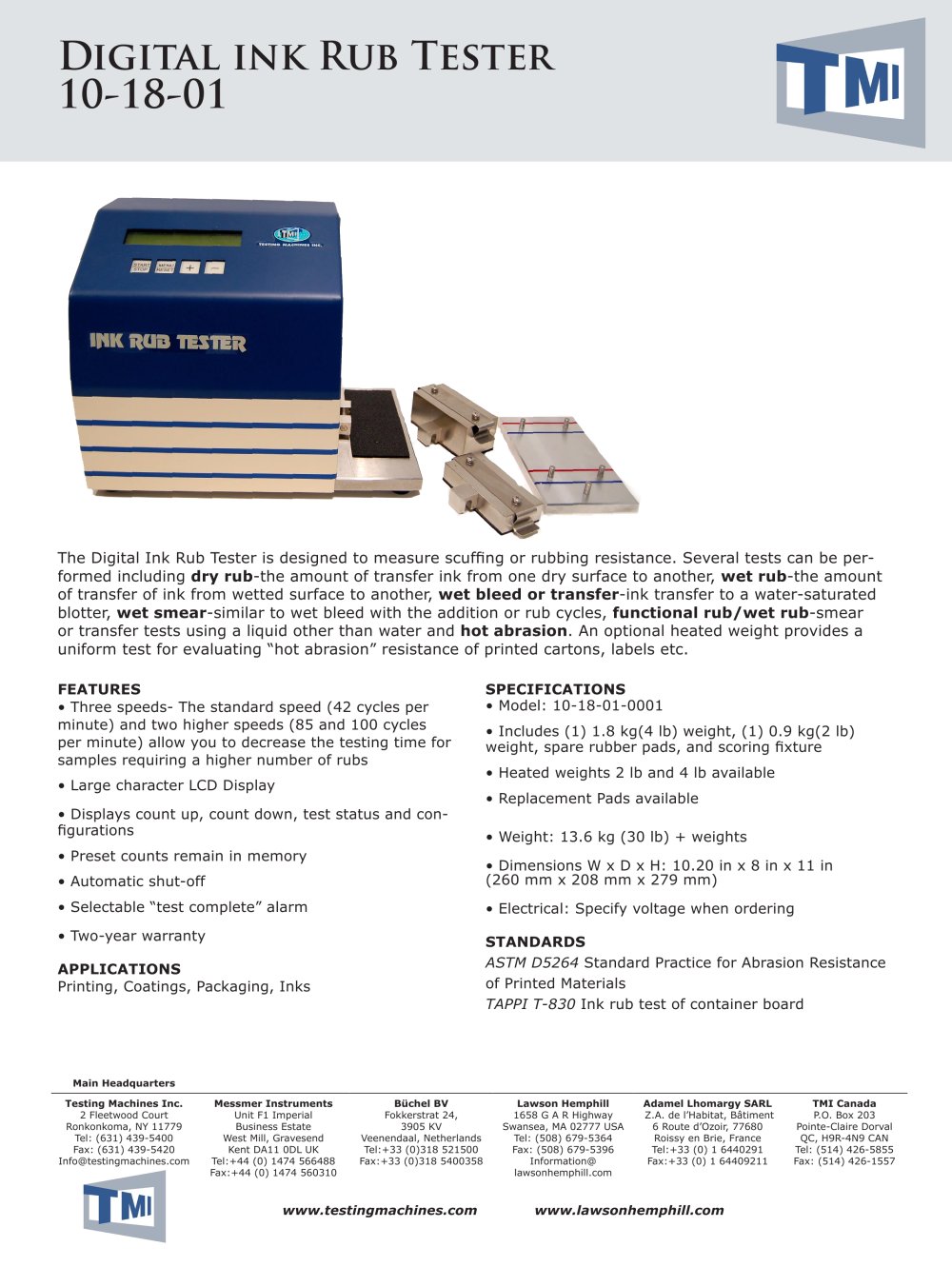

Main Headquarters Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 USA Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lawsonhemphill.com Digital ink Rub Tester 10-18-01 FEATURES • Three speeds- The standard speed (42 cycles per minute) and two higher speeds (85 and 100 cycles per minute) allow you to decrease the testing time for samples requiring a higher number of rubs • Large character LCD Display • Displays count up, count down, test status and configurations • Preset counts remain in memory • Automatic shut-off • Selectable “test complete” alarm • Two-year warranty APPLICATIONS Printing, Coatings, Packaging, Inks SPECIFICATIONS • Model: 10-18-01-0001 • Includes (1) 1.8 kg(4 lb) weight, (1) 0.9 kg(2 lb) weight, spare rubber pads, and scoring fixture • Heated weights 2 lb and 4 lb available • Replacement Pads available • Weight: 13.6 kg (30 lb) + weights • Dimensions W x D x H: 10.20 in x 8 in x 11 in (260 mm x 208 mm x 279 mm) • Electrical: Specify voltage when ordering STANDARDS ASTM D5264 Standard Practice for Abrasion Resistance of Printed Materials TAPPI T-830 Ink rub test of container board The Digital Ink Rub Tester is designed to measure scuffing or rubbing resistance. Several tests can be performed including dry rub-the amount of transfer ink from one dry surface to another, wet rub-the amount of transfer of ink from wetted surface to another, wet bleed or transfer-ink transfer to a water-saturated blotter, wet smear-similar to wet bleed with the addition or rub cycles, functional rub/wet rub-smear or transfer tests using a liquid other than water and hot abrasion. An optional heated weight provides a uniform test for evaluating “hot abrasion” resistance of printed cartons, labels etc.
