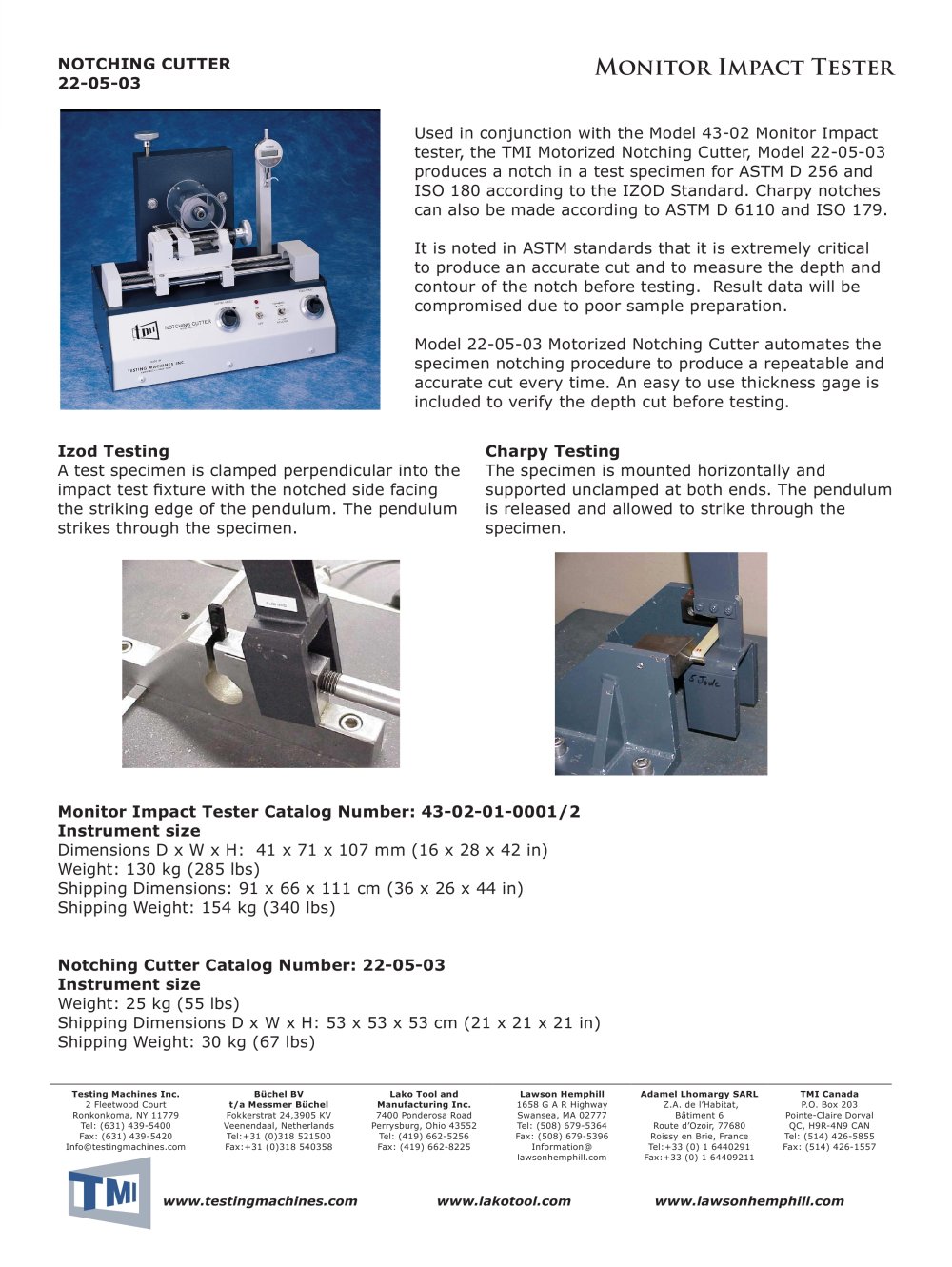

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Büchel BV t/a Messmer Büchel Fokkerstrat 24,3905 KV Veenendaal, Netherlands Tel:+31 (0)318 521500 Fax:+31 (0)318 540358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com Monitor Impact Tester Monitor Impact Tester Catalog Number: 43-02-01-0001/2 Instrument size Dimensions D x W x H: 41 x 71 x 107 mm (16 x 28 x 42 in) Weight: 130 kg (285 lbs) Shipping Dimensions: 91 x 66 x 111 cm (36 x 26 x 44 in) Shipping Weight: 154 kg (340 lbs) Notching Cutter Catalog Number: 22-05-03 Instrument size Weight: 25 kg (55 lbs) Shipping Dimensions D x W x H: 53 x 53 x 53 cm (21 x 21 x 21 in) Shipping Weight: 30 kg (67 lbs) NOTCHING CUTTER 22-05-03 Used in conjunction with the Model 43-02 Monitor Impact tester, the TMI Motorized Notching Cutter, Model 22-05-03 produces a notch in a test specimen for ASTM D 256 and ISO 180 according to the IZOD Standard. Charpy notches can also be made according to ASTM D 6110 and ISO 179. It is noted in ASTM standards that it is extremely critical to produce an accurate cut and to measure the depth and contour of the notch before testing. Result data will be compromised due to poor sample preparation. Model 22-05-03 Motorized Notching Cutter automates the specimen notching procedure to produce a repeatable and accurate cut every time. An easy to use thickness gage is included to verify the depth cut before testing. Izod Testing A test specimen is clamped perpendicular into the impact test fixture with the notched side facing the striking edge of the pendulum. The pendulum strikes through the specimen. Charpy Testing The specimen is mounted horizontally and supported unclamped at both ends. The pendulum is released and allowed to strike through the specimen.
