FEATURES • Test statistics generated at the push of a button• Load cell protected • Auto return after test complete • RS232 serial data output • Wet test option • Serial Printer output• Multi-language standard• Test speed 5-120 mm/min (0.2-5.0 in/min) • Load cell ranges 50N, 100N, 250N, 500N • Easy to load Air operated test clamps • Clamping lengths 50, 100, 180 mm • Specimen width 15mm, 25mm, 50mm or 0.5 in• Menu driven pre-selection of parameters and infra-red sample detection • Two pre-set test types are machine direction and cross direction • Optional software can add hand sheet tensile test

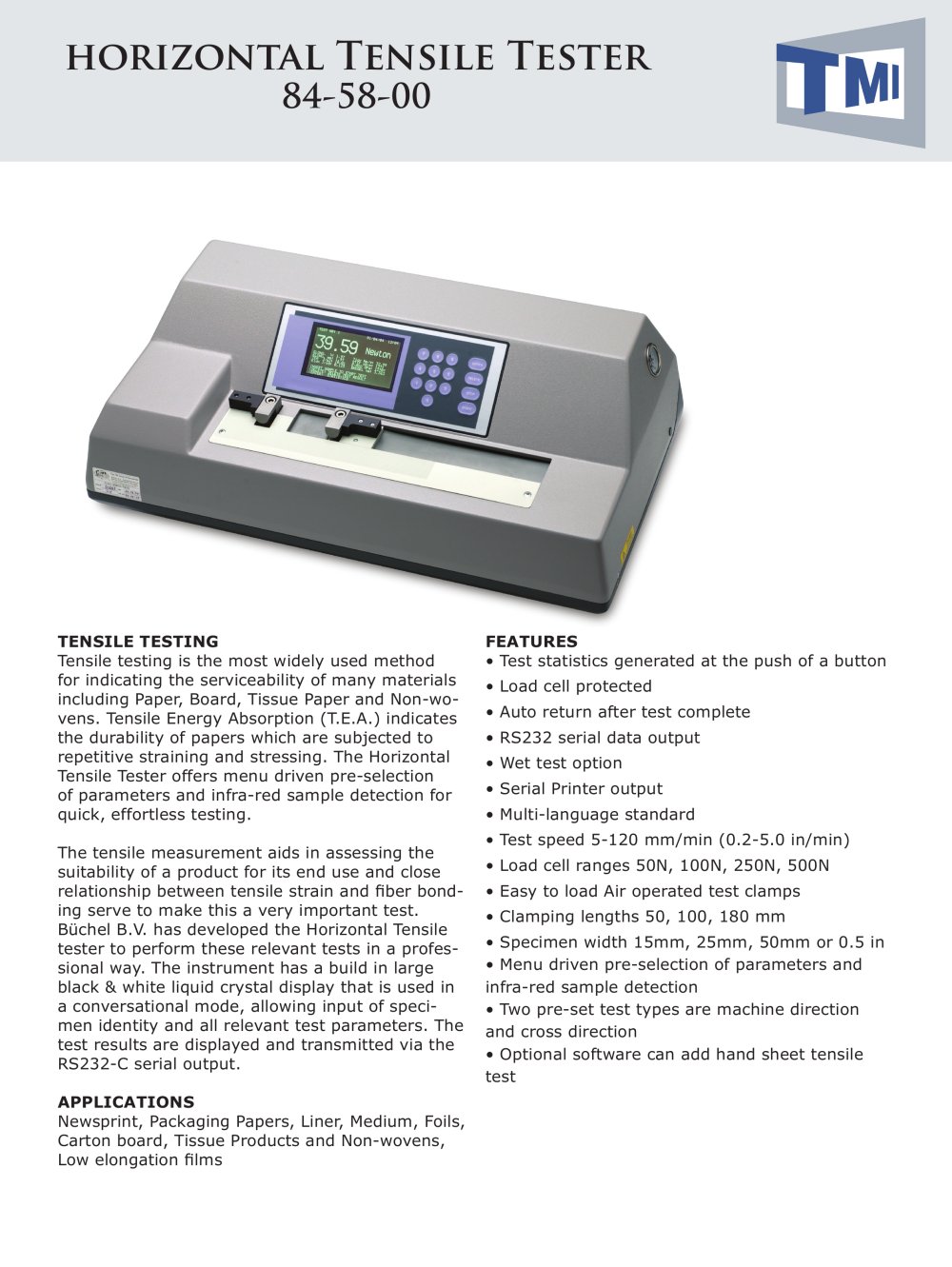

horizontal tensile testing machine - 55801 horizontal Tensile Tester

84-58-00

APPLICATIONS Newsprint, Packaging Papers, Liner, Medium, Foils, Carton board, Tissue Products and Non-wovens, Low elongation films TENSILE TESTING Tensile testing is the most widely used method for indicating the serviceability of many materials including Paper, Board, Tissue Paper and Non-wo- vens. Tensile Energy Absorption (T.E.A.) indicates the durability of papers which are subjected to repetitive straining and stressing. The Horizontal Tensile Tester offers menu driven pre-selection of parameters and infra-red sample detection for quick, effortless testing. The tensile measurement aids in assessing the suitability of a product for its end use and close relationship between tensile strain and fiber bond- ing serve to make this a very important test. Büchel B.V. has developed the Horizontal Tensile tester to perform these relevant tests in a profes- sional way. The instrument has a build in large black & white liquid crystal display that is used in a conversational mode, allowing input of speci- men identity and all relevant test parameters. The test results are displayed and transmitted via the RS232-C serial output.
