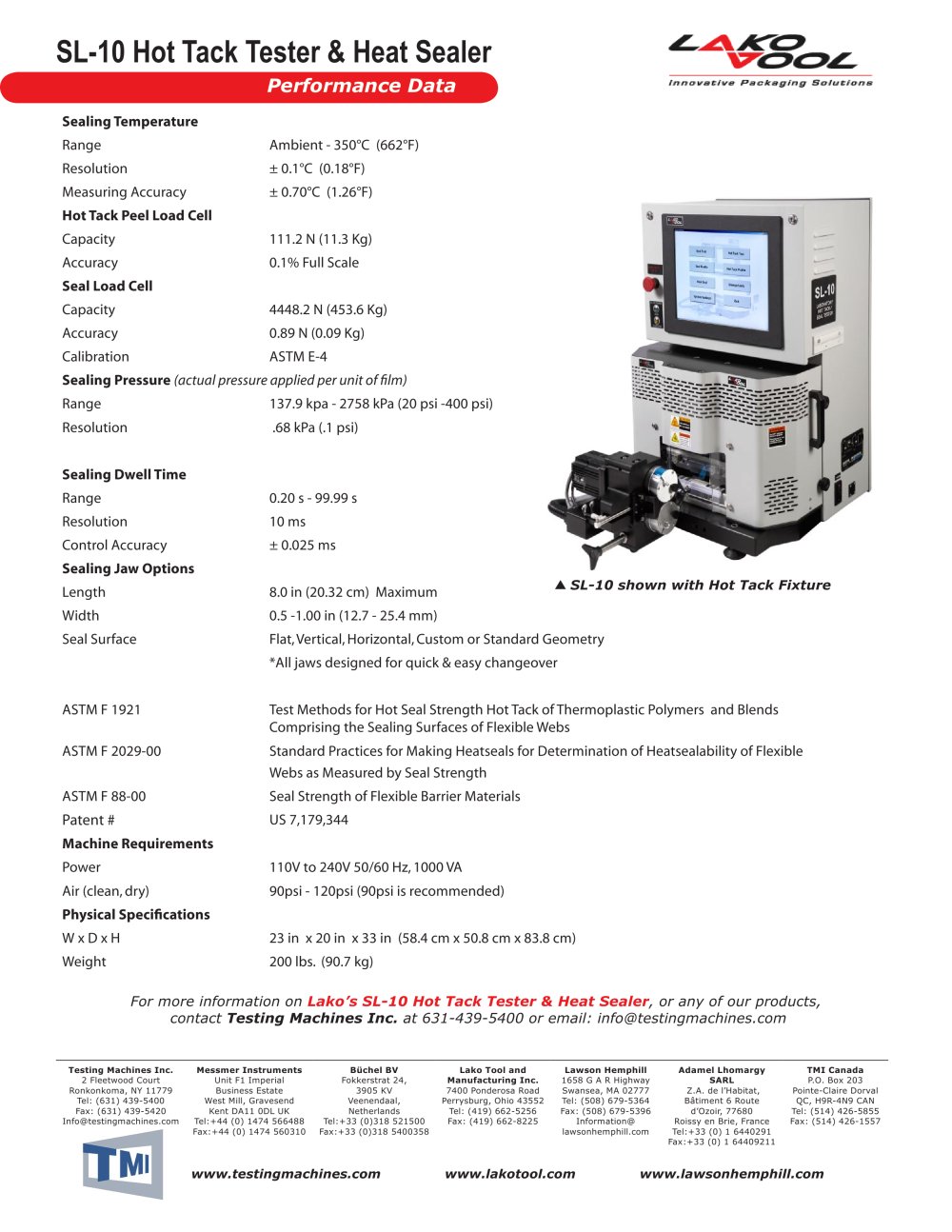

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com Sealing Temperature Range Ambient - 350°C (662°F) Resolution ± 0.1°C (0.18°F) Measuring Accuracy ± 0.70°C (1.26°F) Hot Tack Peel Load Cell Capacity 111.2 N (11.3 Kg) Accuracy 0.1% Full Scale Seal Load Cell Capacity 4448.2 N (453.6 Kg) Accuracy 0.89 N (0.09 Kg) Calibration ASTM E-4 Sealing Pressure (actual pressure applied per unit of film) Range 137.9 kpa - 2758 kPa (20 psi -400 psi) Resolution .68 kPa (.1 psi) Sealing Dwell Time Range 0.20 s - 99.99 s Resolution 10 ms Control Accuracy ± 0.025 ms Sealing Jaw Options Length 8.0 in (20.32 cm) Maximum Width 0.5 -1.00 in (12.7 - 25.4 mm) Seal Surface Flat, Vertical, Horizontal, Custom or Standard Geometry *All jaws designed for quick & easy changeover ASTM F 1921 Test Methods for Hot Seal Strength Hot Tack of Thermoplastic Polymers and Blends Comprising the Sealing Surfaces of Flexible Webs ASTM F 2029-00 Standard Practices for Making Heatseals for Determination of Heatsealability of Flexible Webs as Measured by Seal Strength ASTM F 88-00 Seal Strength of Flexible Barrier Materials Patent # US 7,179,344 Machine Requirements Power 110V to 240V 50/60 Hz, 1000 VA Air (clean, dry) 90psi - 120psi (90psi is recommended) Physical Specifications W x D x H 23 in x 20 in x 33 in (58.4 cm x 50.8 cm x 83.8 cm) Weight 200 lbs. (90.7 kg) SL-10 Hot Tack Tester & Heat Sealer Performance Data �£ SL-10 shown with Hot Tack Fixture For more information on Lako’s SL-10 Hot Tack Tester & Heat Sealer, or any of our products, contact Testing Machines Inc. at 631-439-5400 or email: info@testingmachines.com
