GlossMeter Statistical Novo-Gloss 20º/60º/75º
2Pages

{{requestButtons}}

Catalog excerpts

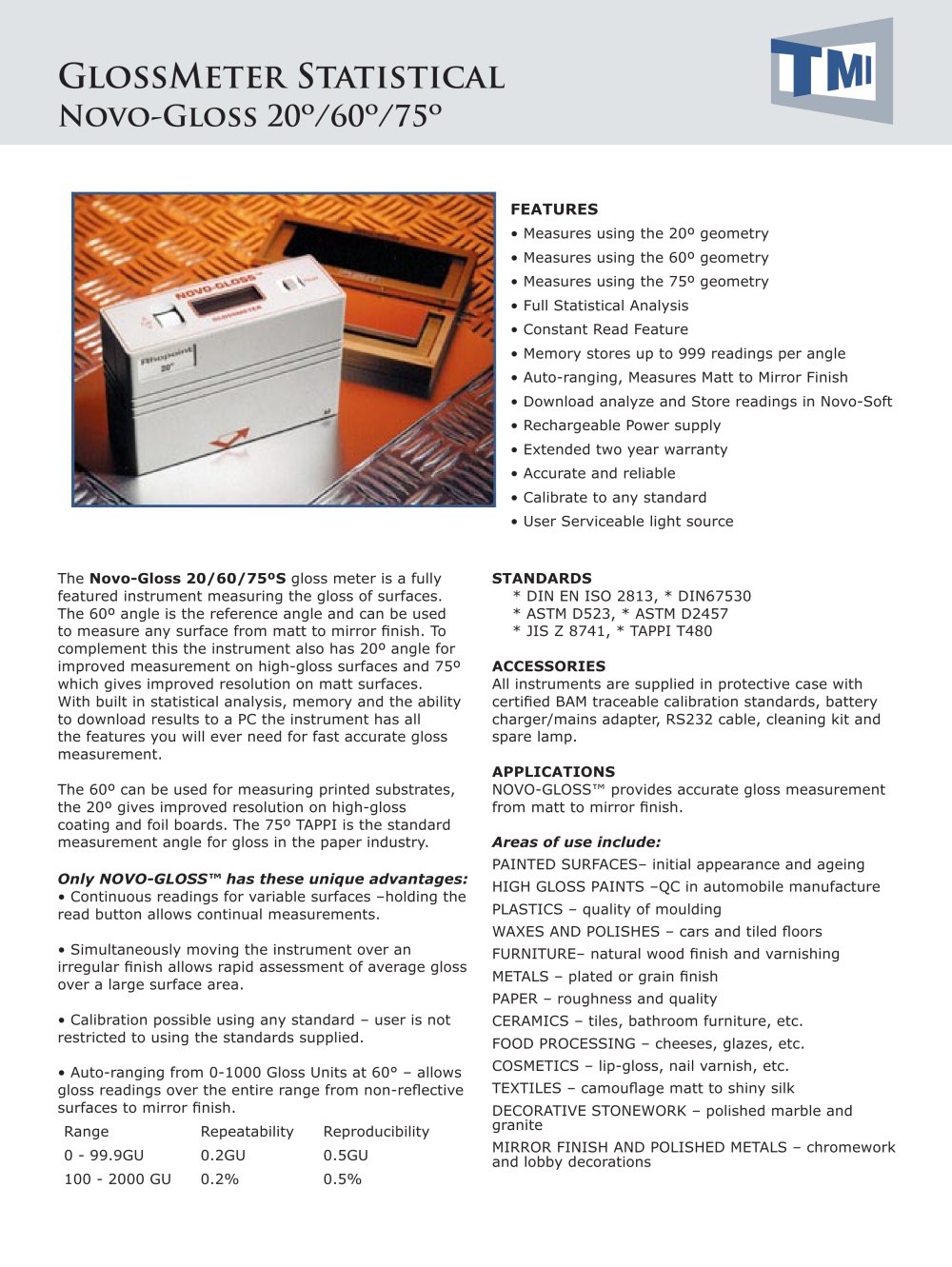

GlossMeter Statistical Novo-Gloss 20º/60º/75º - 1

GlossMeter Statistical Novo-Gloss 20º/60º/75º FEATURES • Measures using the 20º geometry • Measures using the 60º geometry • Measures using the 75º geometry • Full Statistical Analysis • Constant Read Feature • Memory stores up to 999 readings per angle • Auto-ranging, Measures Matt to Mirror Finish • Download analyze and Store readings in Novo-Soft • Rechargeable Power supply • Extended two year warranty • Accurate and reliable • Calibrate to any standard • User Serviceable light source The Novo-Gloss 20/60/75ºS gloss meter is a fully featured instrument measuring the gloss of surfaces. The 60º angle is the reference angle and can be used to measure any surface from matt to mirror finish. To complement this the instrument also has 20º angle for improved measurement on high-gloss surfaces and 75º which gives improved resolution on matt surfaces. With built in statistical analysis, memory and the ability to download results to a PC the instrument has all the features you will ever need for fast accurate gloss measurement. The 60º can be used for measuring printed substrates, the 20º gives improved resolution on high-gloss coating and foil boards. The 75º TAPPI is the standard measurement angle for gloss in the paper industry. Only NOVO-GLOSS™ has these unique advantages: • Continuous readings for variable surfaces –holding the read button allows continual measurements. • Simultaneously moving the instrument over an irregular finish allows rapid assessment of average gloss over a large surface area. • Calibration possible using any standard – user is not restricted to using the standards supplied. • Auto-ranging from 0-1000 Gloss Units at 60° – allows gloss readings over the entire range from non-reflective surfaces to mirror finish. Range Repeatability Reproducibility 0 - 99.9GU 0.2GU 0.5GU 100 - 2000 GU 0.2% 0.5% STANDARDS * DIN EN ISO 2813, * DIN67530 * ASTM D523, * ASTM D2457 * JIS Z 8741, * TAPPI T480 ACCESSORIES All instruments are supplied in protective case with certified BAM traceable calibration standards, battery charger/mains adapter, RS232 cable, cleaning kit and spare lamp. APPLICATIONS NOVO-GLOSS™ provides accurate gloss measurement from matt to mirror finish. Areas of use include: PAINTED SURFACES– initial appearance and ageing HIGH GLOSS PAINTS –QC in automobile manufacture PLASTICS – quality of moulding WAXES AND POLISHES – cars and tiled floors FURNITURE– natural wood finish and varnishing METALS – plated or grain finish PAPER – roughness and quality CERAMICS – tiles, bathroom furniture, etc. FOOD PROCESSING – cheeses, glazes, etc. COSMETICS – lip-gloss, nail varnish, etc. TEXTILES – camouflage matt to shiny silk DECORATIVE STONEWORK – polished marble and granite MIRROR FINISH AND POLISHED METALS – chromework and lobby decorations

Open the catalog to page 1
GlossMeter Statistical Novo-Gloss 20º/60º/75º - 2

Testing Machines Inc. 40 McCullough Drive New Castle, DE 19720 Tel: (800) 678-3221 Info@testingmachines.com Büchel BV t/a Messmer Büchel Fokkerstraat 24,3905 KV Veenendaal, Netherlands Tel:+31 (0)318 521500 Fax:+31 (0)318 540358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33...

Open the catalog to page 2
