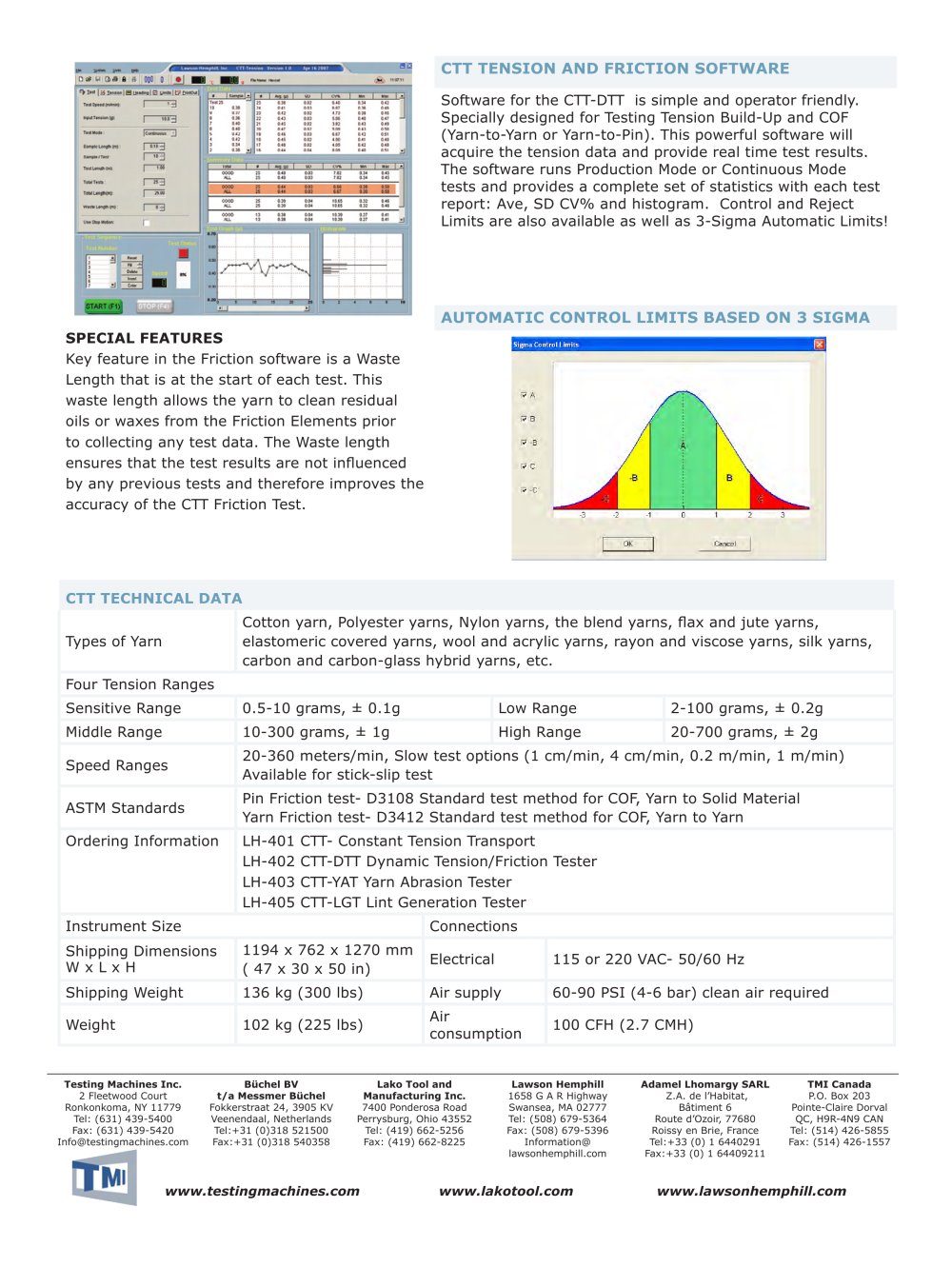

CTT TECHNICAL DATA Types of Yarn Cotton yarn, Polyester yarns, Nylon yarns, the blend yarns, flax and jute yarns, elastomeric covered yarns, wool and acrylic yarns, rayon and viscose yarns, silk yarns, carbon and carbon-glass hybrid yarns, etc. Four Tension Ranges Sensitive Range 0.5-10 grams, ± 0.1g Low Range 2-100 grams, ± 0.2g Middle Range 10-300 grams, ± 1g High Range 20-700 grams, ± 2g Speed Ranges 20-360 meters/min, Slow test options (1 cm/min, 4 cm/min, 0.2 m/min, 1 m/min) Available for stick-slip test ASTM Standards Pin Friction test- D3108 Standard test method for COF, Yarn to Solid Material Yarn Friction test- D3412 Standard test method for COF, Yarn to Yarn Ordering Information LH-401 CTT- Constant Tension Transport LH-402 CTT-DTT Dynamic Tension/Friction Tester LH-403 CTT-YAT Yarn Abrasion Tester LH-405 CTT-LGT Lint Generation Tester Instrument Size Connections Shipping Dimensions W x L x H 1194 x 762 x 1270 mm ( 47 x 30 x 50 in) Electrical 115 or 220 VAC- 50/60 Hz Shipping Weight 136 kg (300 lbs) Air supply 60-90 PSI (4-6 bar) clean air required Weight 102 kg (225 lbs) Air consumption 100 CFH (2.7 CMH) Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Büchel BV t/a Messmer Büchel Fokkerstraat 24, 3905 KV Veenendaal, Netherlands Tel:+31 (0)318 521500 Fax:+31 (0)318 540358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com CTT TENSION AND FRICTION SOFTWARE Software for the CTT-DTT is simple and operator friendly. Specially designed for Testing Tension Build-Up and COF (Yarn-to-Yarn or Yarn-to-Pin). This powerful software will acquire the tension data and provide real time test results. The software runs Production Mode or Continuous Mode tests and provides a complete set of statistics with each test report: Ave, SD CV% and histogram. Control and Reject Limits are also available as well as 3-Sigma Automatic Limits! SPECIAL FEATURES Key feature in the Friction software is a Waste Length that is at the start of each test. This waste length allows the yarn to clean residual oils or waxes from the Friction Elements prior to collecting any test data. The Waste length ensures that the test results are not influenced by any previous tests and therefore improves the accuracy of the CTT Friction Test. AUTOMATIC CONTROL LIMITS BASED ON 3 SIGMA
