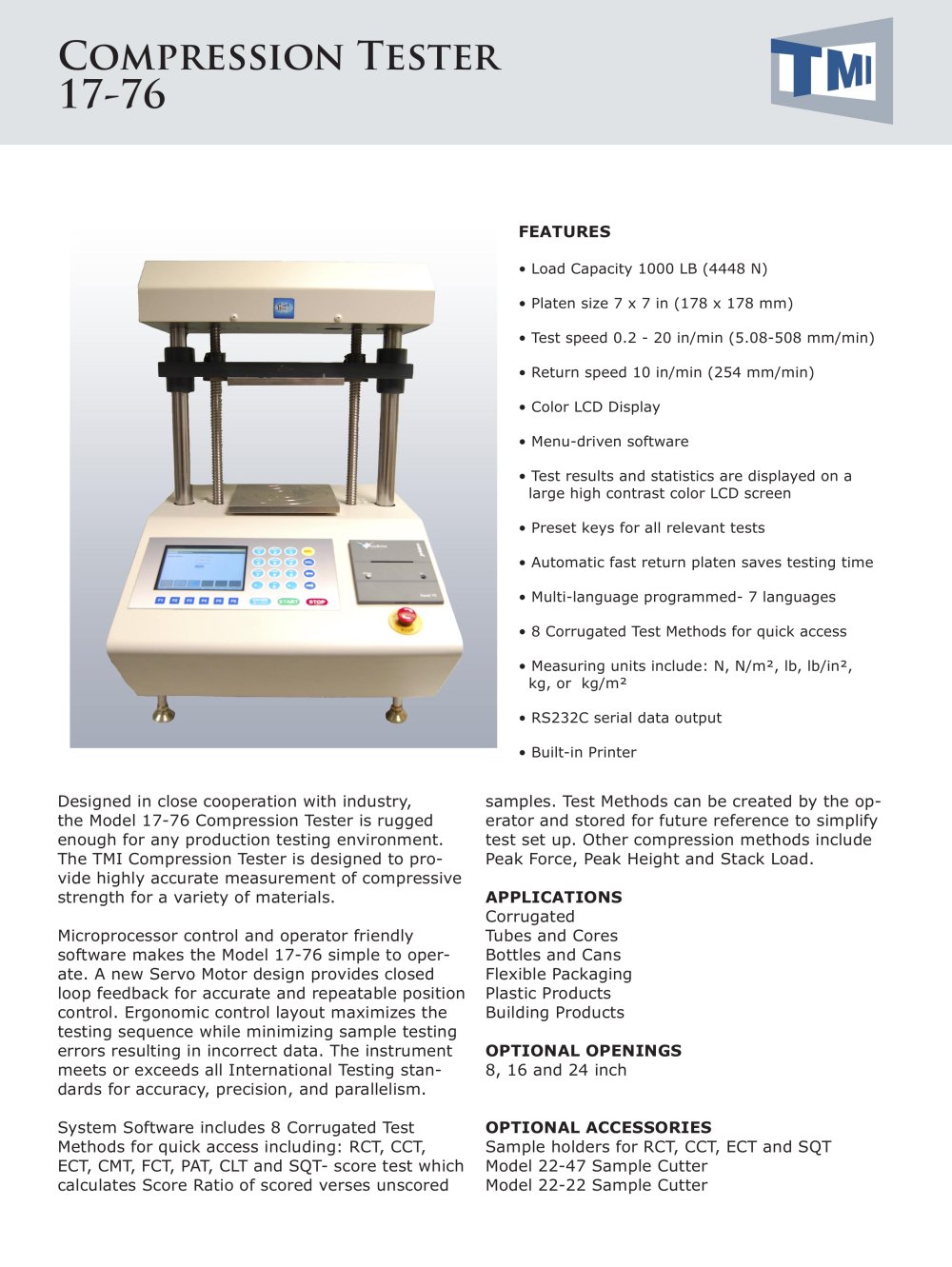

Compression Tester 17-76 FEATURES • Load Capacity 1000 LB (4448 N) • Platen size 7 x 7 in (178 x 178 mm) • Test speed 0.2 - 20 in/min (5.08-508 mm/min) • Return speed 10 in/min (254 mm/min) • Color LCD Display • Menu-driven software • Test results and statistics are displayed on a large high contrast color LCD screen • Preset keys for all relevant tests • Automatic fast return platen saves testing time • Multi-language programmed- 7 languages • 8 Corrugated Test Methods for quick access • Measuring units include: N, N/m², lb, lb/in², kg, or kg/m² • RS232C serial data output • Built-in Printer Designed in close cooperation with industry, the Model 17-76 Compression Tester is rugged enough for any production testing environment. The TMI Compression Tester is designed to provide highly accurate measurement of compressive strength for a variety of materials. Microprocessor control and operator friendly software makes the Model 17-76 simple to operate. A new Servo Motor design provides closed loop feedback for accurate and repeatable position control. Ergonomic control layout maximizes the testing sequence while minimizing sample testing errors resulting in incorrect data. The instrument meets or exceeds all International Testing standards for accuracy, precision, and parallelism. System Software includes 8 Corrugated Test Methods for quick access including: RCT, CCT, ECT, CMT, FCT, PAT, CLT and SQT- score test which calculates Score Ratio of scored verses unscored samples. Test Methods can be created by the operator and stored for future reference to simplify test set up. Other compression methods include Peak Force, Peak Height and Stack Load. APPLICATIONS Corrugated Tubes and Cores Bottles and Cans Flexible Packaging Plastic Products Building Products OPTIONAL OPENINGS 8, 16 and 24 inch OPTIONAL ACCESSORIES Sample holders for RCT, CCT, ECT and SQT Model 22-47 Sample Cutter Model 22-22 Sample Cutter

Open the catalog to page 1

£ Edge Crush Tester 17-11-49 £ RCT- Ring Crush holder with disks 17-11-13 £ PAT-Pin Adhesion Attachment 17-11-09 INSTRUMENT MEETS RCT test APPITA/AS 1301.407s, DIN 53134, ISO 12192, SCAN P34, TAPPI T 822 CMT test APPITA/AS 1301.434s, ISO 7263, DIN 53134, SCAN P27, TAPPI T809 CCT test SCAN P42, TAPPI T 843 PAT test APPITA/AS 1301.430s, TAPPI T 821, FEFCO No. 11 ECT test APPITA/AS 1301.444s, ISO 3037, ISO 13821, DIN 53149, SCAN P33, TAPPI T 811, TAPPI T 823, TAPPI T 838, TAPPI T 839, FEFCO No. 8 FCT test PPITA/AS 1301.429s, EN 23035, ISO 3035, SCAN P32, TAPPI T 825, FEFCO No. 6 ASQT test...

Open the catalog to page 2

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Büchel BV t/a Messmer Büchel Fokkerstraat 24,3905 KV Veenendaal, Netherlands Tel:+31 (0)318 521500 Fax:+31 (0)318 540358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1...

Open the catalog to page 3
