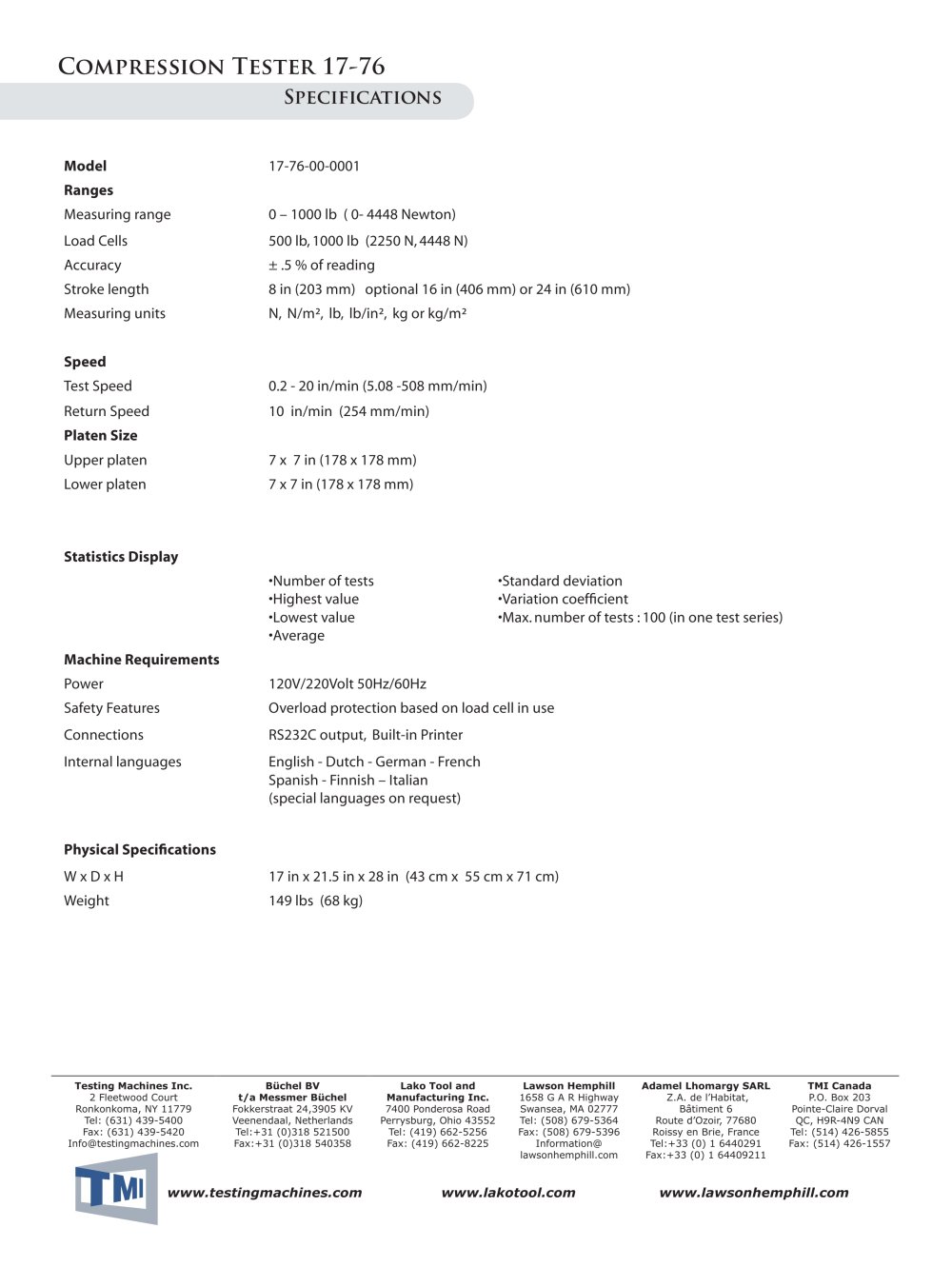

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Büchel BV t/a Messmer Büchel Fokkerstraat 24,3905 KV Veenendaal, Netherlands Tel:+31 (0)318 521500 Fax:+31 (0)318 540358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com Compression Tester 17-76 Specifications Model 17-76-00-0001 Ranges Measuring range 0 – 1000 lb ( 0- 4448 Newton) Load Cells 500 lb, 1000 lb (2250 N, 4448 N) Accuracy ± .5 % of reading Stroke length 8 in (203 mm) optional 16 in (406 mm) or 24 in (610 mm) Measuring units N, N/m², lb, lb/in², kg or kg/m² Speed Test Speed 0.2 - 20 in/min (5.08 -508 mm/min) Return Speed 10 in/min (254 mm/min) Platen Size Upper platen 7 x 7 in (178 x 178 mm) Lower platen 7 x 7 in (178 x 178 mm) Statistics Display •Number of tests •Highest value •Lowest value •Average •Standard deviation •Variation coefficient •Max. number of tests : 100 (in one test series) Machine Requirements Power 120V/220Volt 50Hz/60Hz Safety Features Overload protection based on load cell in use Connections RS232C output, Built-in Printer Internal languages English - Dutch - German - French Spanish - Finnish – Italian (special languages on request) Physical Specifications W x D x H 17 in x 21.5 in x 28 in (43 cm x 55 cm x 71 cm) Weight 149 lbs (68 kg)
