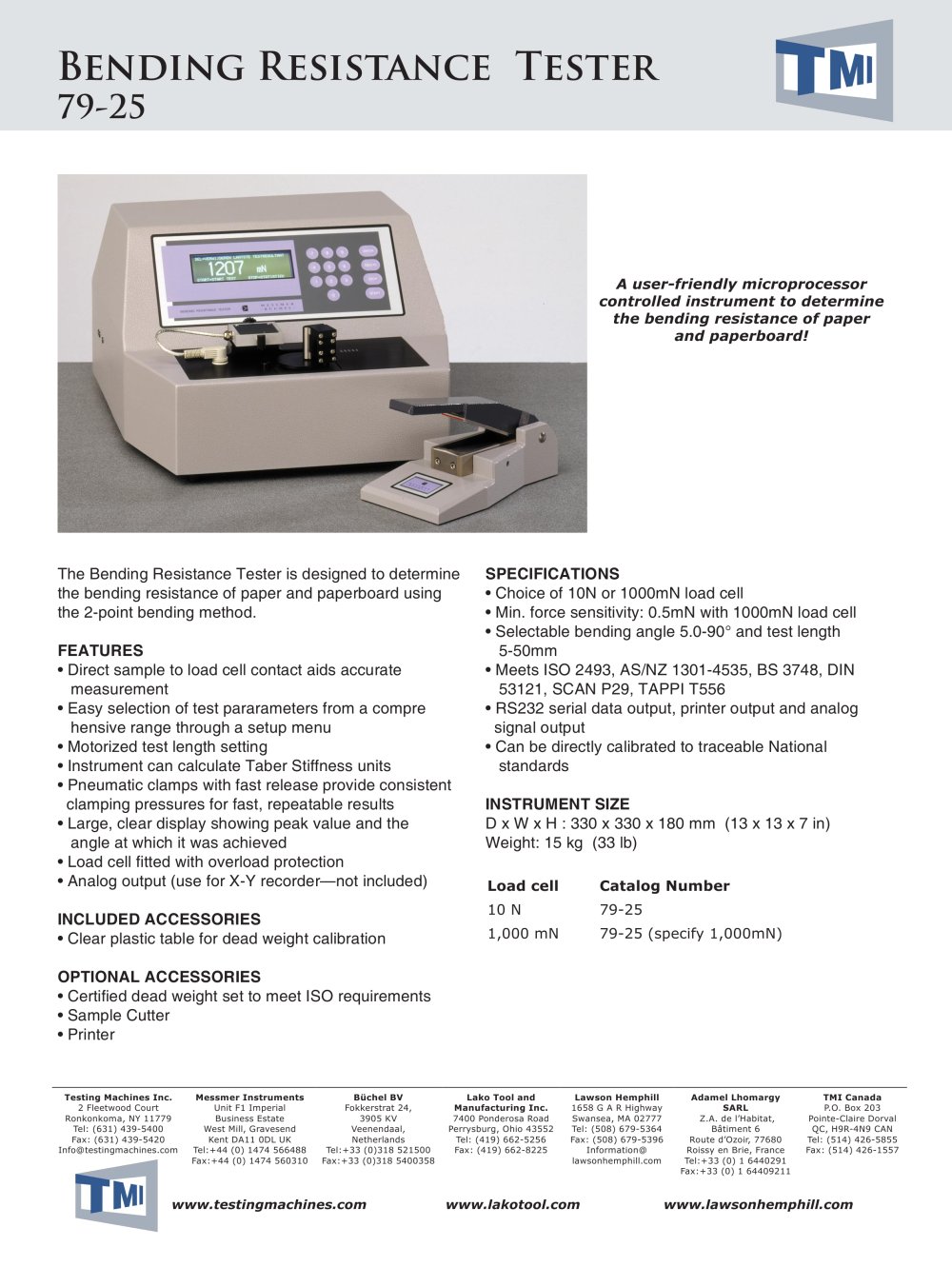

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com Bending Resistance Tester 79-25 The Bending Resistance Tester is designed to determine the bending resistance of paper and paperboard using the 2-point bending method. FEATURES • Direct sample to load cell contact aids accurate measurement • Easy selection of test pararameters from a compre hensive range through a setup menu • Motorized test length setting • Instrument can calculate Taber Stiffness units • Pneumatic clamps with fast release provide consistent clamping pressures for fast, repeatable results • Large, clear display showing peak value and the angle at which it was achieved • Load cell fitted with overload protection • Analog output (use for X-Y recorder—not included) INCLUDED ACCESSORIES • Clear plastic table for dead weight calibration OPTIONAL ACCESSORIES • Certified dead weight set to meet ISO requirements • Sample Cutter • Printer SPECIFICATIONS • Choice of 10N or 1000mN load cell • Min. force sensitivity: 0.5mN with 1000mN load cell • Selectable bending angle 5.0-90° and test length 5-50mm • Meets ISO 2493, AS/NZ 1301-4535, BS 3748, DIN 53121, SCAN P29, TAPPI T556 • RS232 serial data output, printer output and analog signal output • Can be directly calibrated to traceable National standards INSTRUMENT SIZE D x W x H : 330 x 330 x 180 mm (13 x 13 x 7 in) Weight: 15 kg (33 lb) A user-friendly microprocessor controlled instrument to determine the bending resistance of paper and paperboard! Load cell Catalog Number 10 N 79-25 1,000 mN 79-25 (specify 1,000mN)
