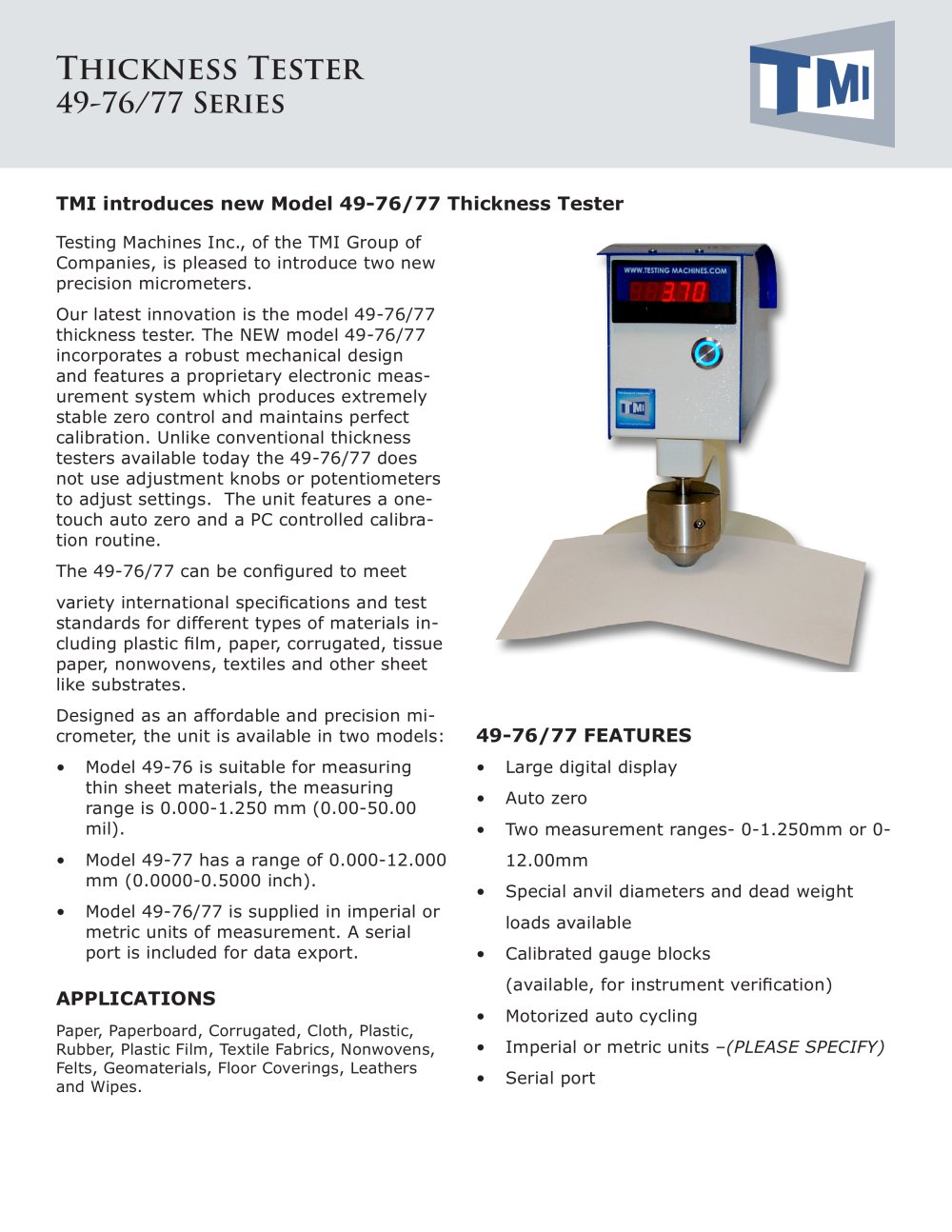

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:20.00pt "Sylfaen", serif; } .font1 { font:9.00pt "Verdana", sans-serif; } .font2 { font:10.00pt "Verdana", sans-serif; } .font3 { font:11.00pt "Verdana", sans-serif; } Thickness Tester 49-76/77 Séries TMI introduces new Model 49-76/77 Testing Machines Inc., of the TMI Group of Companies, is pleased to introduce two new précision micrometers. Our latest innovation is the model 49-76/77 thickness tester. The NEW model 49-76/77 incorporates a robust mechanical design and features a proprietary electronic meas-urement system which produces extremely stable zero control and maintains perfect calibration. Unlike conventional thickness testers available today the 49-76/77 does not use adjustment knobs or potentiometers to adjust settings. The unit features a one-touch auto zero and a PC controlled calibra-tion routine. The 49-76/77 can be configured to meet variety international specifications and test standards for different types of materials in-cluding plastic film, paper, corrugated, tissue paper, nonwovens, textiles and other sheet like substrates. Designed as an affordable and precision mi-crometer, the unit is available in two models: • Model 49-76 is suitable for measuring thin sheet materials, the measuring range is 0.000-1.250 mm (0.00-50.00 mil). • Model 49-77 has a range of 0.000-12.000 mm (0.0000-0.5000 inch). • Model 49-76/77 is supplied in imperial or metric units of measurement. A serial port is included for data export. APPLICATIONS Paper, Paperboard, Corrugated, Cloth, Plastic, Rubber, Plastic Film, Textile Fabrics, Nonwovens, Felts, Geomaterials, Floor Coverings, Leathers and Wipes. Tester 49-76/77 FEATLIRES • Large digital display • Auto zero • Two measurement ranges- 0-1.250mm or 0-12.00mm • Special anvil diameters and dead weight loads available • Calibrated gauge blocks (available, for instrument verification) • Motorized auto cycling • Imperial or metric units -(PLEASE SPECIFY) • Serial port
