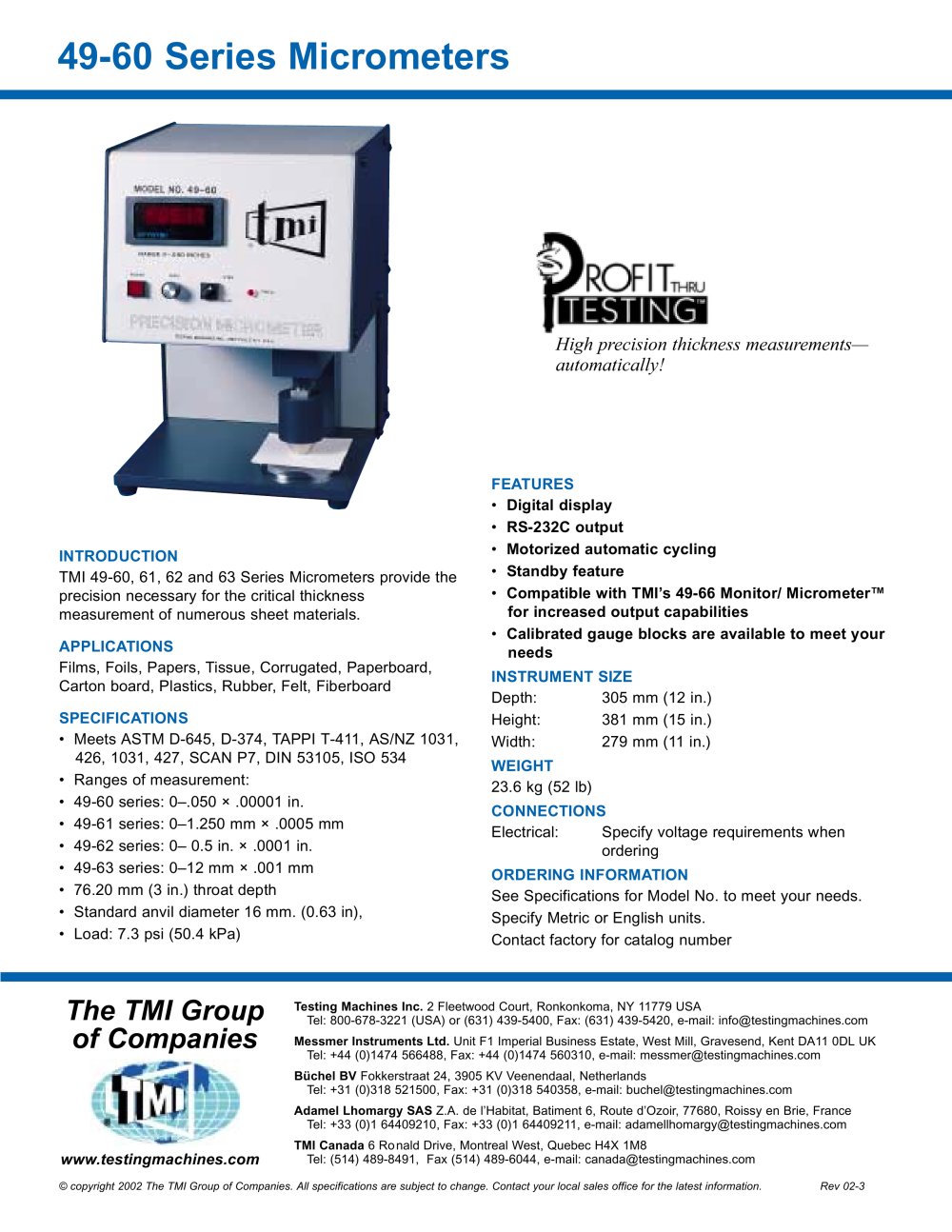

       Testing Machines Inc. 2 Fleetwood Court, Ronkonkoma, NY 11779 USA Tel: 800-678-3221 (USA) or (631) 439-5400, Fax: (631) 439-5420, e-mail: info@testingmachines.com Messmer Instruments Ltd. Unit F1 Imperial Business Estate, West Mill, Gravesend, Kent DA11 0DL UK Tel: +44 (0)1474 566488, Fax: +44 (0)1474 560310, e-mail: messmer@testingmachines.com Büchel BV Fokkerstraat 24, 3905 KV Veenendaal, Netherlands Tel: +31 (0)318 521500, Fax: +31 (0)318 540358, e-mail: buchel@testingmachines.com Adamel Lhomargy SAS Z.A. de l’Habitat, Batiment 6, Route d’Ozoir, 77680, Roissy en Brie, France Tel: +33 (0)1 64409210, Fax: +33 (0)1 64409211, e-mail: adamellhomargy@testingmachines.com TMI Canada 6 Ronald Drive, Montreal West, Quebec H4X 1M8 Tel: (514) 489-8491, Fax (514) 489-6044, e-mail: canada@testingmachines.com © copyright 2002 The TMI Group of Companies. All specifications are subject to change. Contact your local sales office for the latest information. Rev 02-3 INTRODUCTION TMI 49-60, 61, 62 and 63 Series Micrometers provide the precision necessary for the critical thickness measurement of numerous sheet materials. APPLICATIONS Films, Foils, Papers, Tissue, Corrugated, Paperboard, Carton board, Plastics, Rubber, Felt, Fiberboard SPECIFICATIONS • Meets ASTM D-645, D-374, TAPPI T-411, AS/NZ 1031, 426, 1031, 427, SCAN P7, DIN 53105, ISO 534 • Ranges of measurement: • 49-60 series: 0–.050 × .00001 in. • 49-61 series: 0–1.250 mm × .0005 mm • 49-62 series: 0– 0.5 in. × .0001 in. • 49-63 series: 0–12 mm × .001 mm • 76.20 mm (3 in.) throat depth • Standard anvil diameter 16 mm. (0.63 in), • Load: 7.3 psi (50.4 kPa) FEATURES • Digital display • RS-232C output • Motorized automatic cycling • Standby feature • Compatible with TMI’s 49-66 Monitor/ Micrometer™ for increased output capabilities • Calibrated gauge blocks are available to meet your needs INSTRUMENT SIZE Depth: 305 mm (12 in.) Height: 381 mm (15 in.) Width: 279 mm (11 in.) WEIGHT 23.6 kg (52 lb) CONNECTIONS Electrical: Specify voltage requirements when ordering ORDERING INFORMATION See Specifications for Model No. to meet your needs. Specify Metric or English units. Contact factory for catalog number 49-60 Series Micrometers
