49-50 Digital Micrometer - Testing Machines Inc - #2

Text version of the page

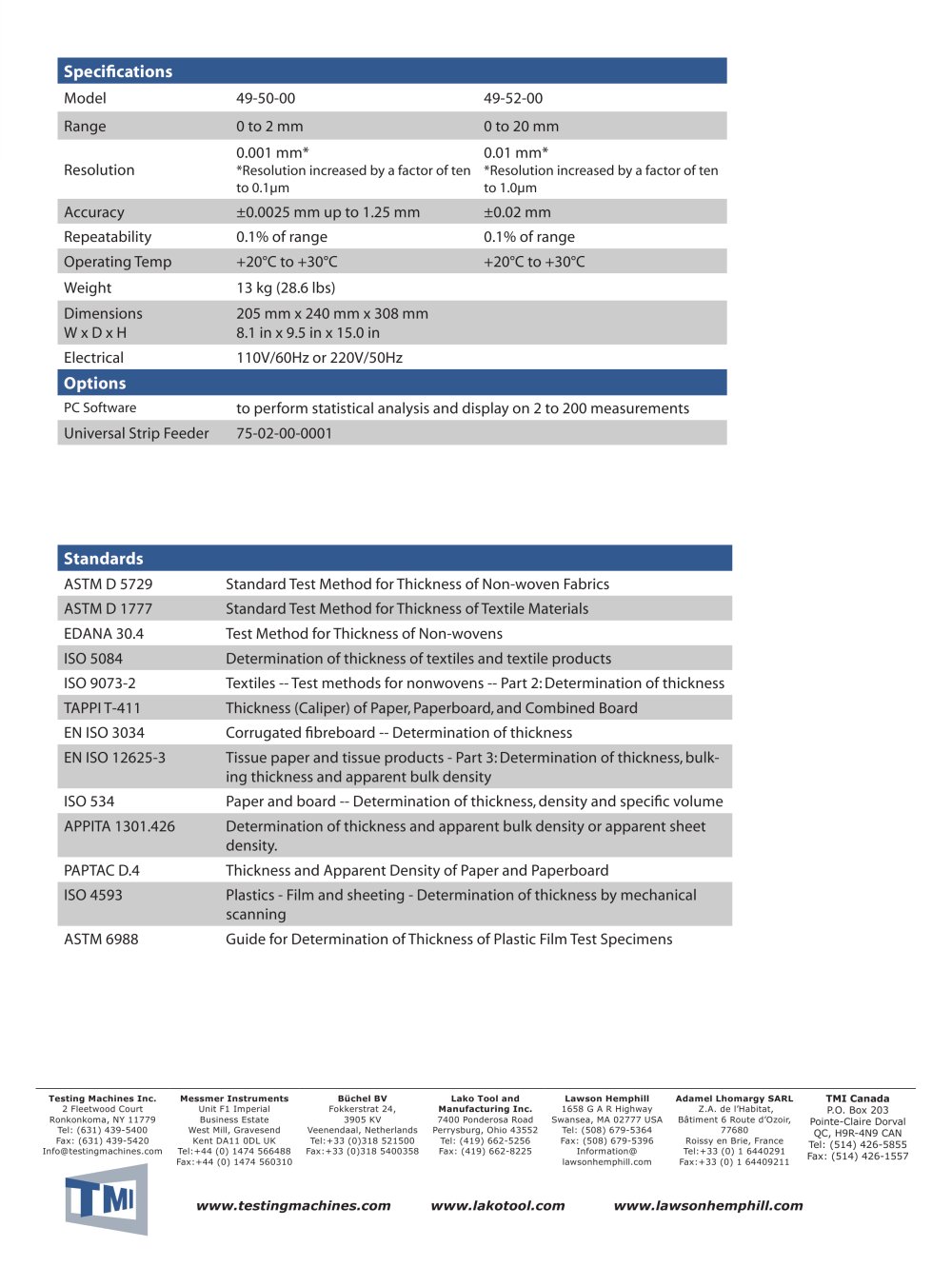

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 USA Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com Specifications Model 49-50-00 49-52-00 Range 0 to 2 mm 0 to 20 mm Resolution 0.001 mm* *Resolution increased by a factor of ten to 0.1ìm 0.01 mm* *Resolution increased by a factor of ten to 1.0ìm Accuracy ±0.0025 mm up to 1.25 mm ±0.02 mm Repeatability 0.1% of range 0.1% of range Operating Temp +20°C to +30°C +20°C to +30°C Weight 13 kg (28.6 lbs) Dimensions W x D x H 205 mm x 240 mm x 308 mm 8.1 in x 9.5 in x 15.0 in Electrical 110V/60Hz or 220V/50Hz Options PC Software to perform statistical analysis and display on 2 to 200 measurements Universal Strip Feeder 75-02-00-0001 Standards ASTM D 5729 Standard Test Method for Thickness of Non-woven Fabrics ASTM D 1777 Standard Test Method for Thickness of Textile Materials EDANA 30.4 Test Method for Thickness of Non-wovens ISO 5084 Determination of thickness of textiles and textile products ISO 9073-2 Textiles -- Test methods for nonwovens -- Part 2: Determination of thickness TAPPI T-411 Thickness (Caliper) of Paper, Paperboard, and Combined Board EN ISO 3034 Corrugated fibreboard -- Determination of thickness EN ISO 12625-3 Tissue paper and tissue products - Part 3: Determination of thickness, bulking thickness and apparent bulk density ISO 534 Paper and board -- Determination of thickness, density and specific volume APPITA 1301.426 Determination of thickness and apparent bulk density or apparent sheet density. PAPTAC D.4 Thickness and Apparent Density of Paper and Paperboard ISO 4593 Plastics - Film and sheeting - Determination of thickness by mechanical scanning ASTM 6988 Guide for Determination of Thickness of Plastic Film Test Specimens
