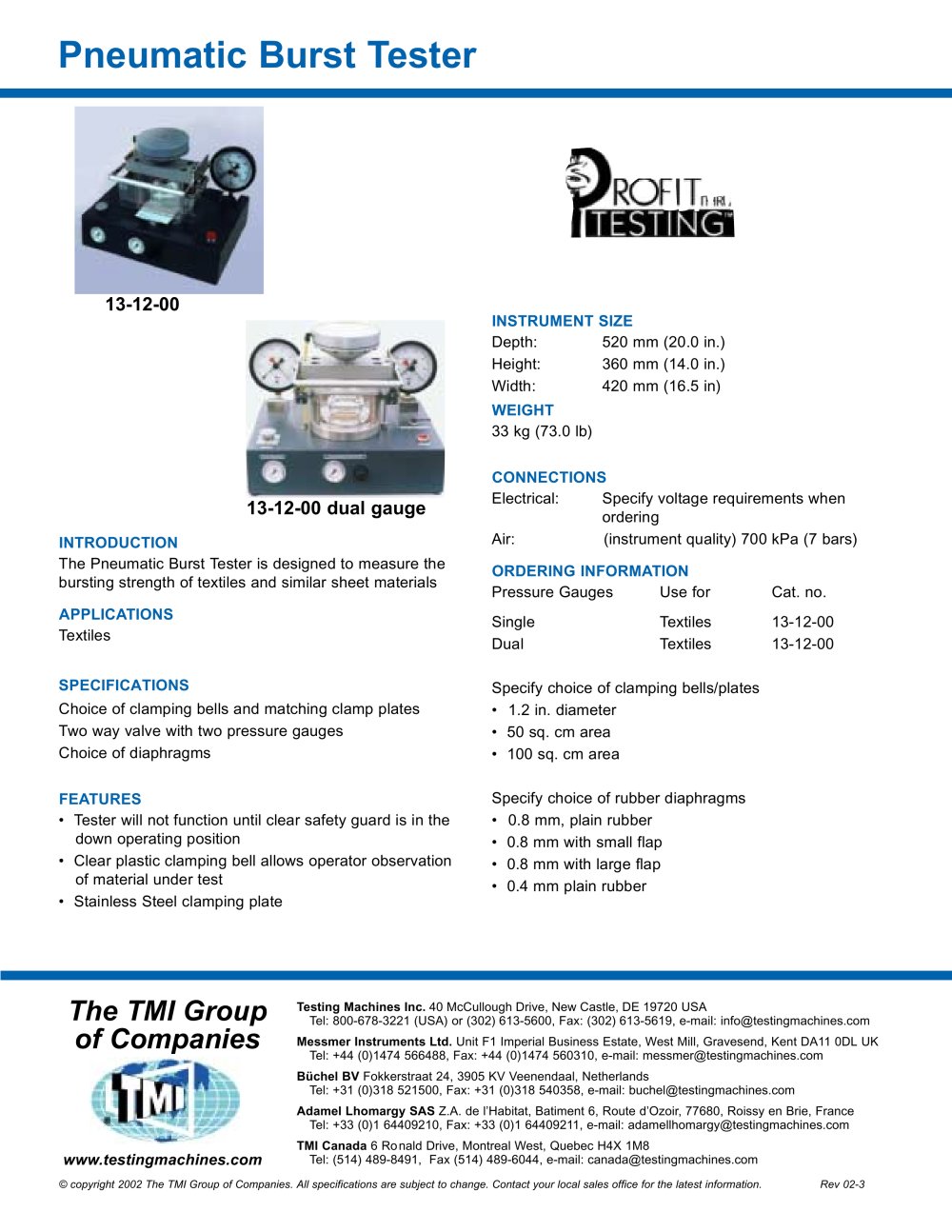

13-12 Pneumatic Burst Tester - Testing Machines Inc - #1

Text version of the page

© copyright 2002 The TMI Group of Companies. All specifications are subject to change. Contact your local sales office for the latest information. Rev 02-3

 !"
 The Pneumatic Burst Tester is designed to measure the bursting strength of textiles and similar sheet materials
 Textiles SPECIFICA
 Choice of clamping bells and matching clamp plates Two way valve with two pressure gauges Choice of diaphragms $#
"# • Tester will not function until clear safety guard is in the down operating position • Clear plastic clamping bell allows operator observation of material under test • Stainless Steel clamping plate
" #
 %# Depth: 520 mm (20.0 in.) Height: 360 mm (14.0 in.) Width: 420 mm (16.5 in) &# '(
33 kg (73.0 lb)  #
 Electrical: Specify voltage requirements when ordering Air: (instrument quality) 700 kPa (7 bars) !# ' $
 Pressure Gauges Use for Cat. no. Single Textiles 13-12-00 Dual Textiles 13-12-00 Specify choice of clamping bells/plates • 1.2 in. diameter • 50 sq. cm area • 100 sq. cm area Specify choice of rubber diaphragms • 0.8 mm, plain rubber • 0.8 mm with small flap • 0.8 mm with large flap • 0.4 mm plain rubber )*+),+-- )*+),+--
