page 57 The Ultimate Safety Breaker
SECTION 4
APPLICATION DATA
Upstream: TemPower 2 ACB with or without Integral Protection Relay.
Downstream: TemBreak 2 MCCB.

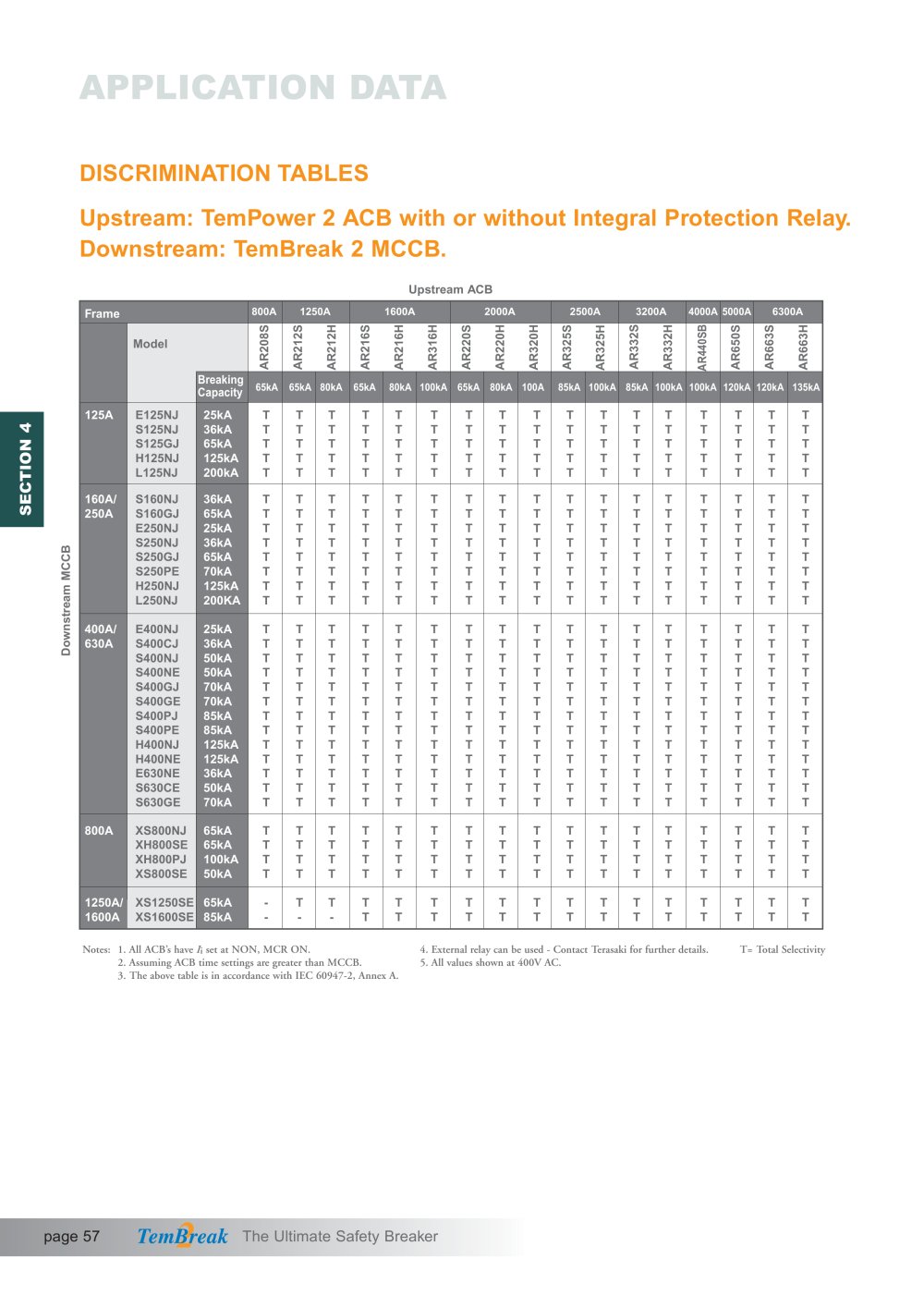

DISCRIMINATION TABLES
Frame
Model
800A 1250A 1600A 2000A 2500A 3200A 4000A 5000A 6300A
AR208S
AR212S
AR212H
AR216S
AR216H
AR316H
AR220S
AR220H
AR320H
AR325S
AR325H
AR332S
AR332H
AR440SB
AR650S
AR663S
AR663H
Notes: 1. All ACB’s have Ii set at NON, MCR ON.
2. Assuming ACB time settings are greater than MCCB.
3. The above table is in accordance with IEC 60947-2, Annex A.
4. External relay can be used - Contact Terasaki for further details.
5. All values shown at 400V AC.
T= Total Selectivity
Upstream ACB
Downstream MCCB
65kA 65kA 80kA 65kA 80kA 100kA 65kA 80kA 100A 85kA 100kA 85kA 100kA 100kA 120kA 120kA 135kA
Breaking
Capacity
125A E125NJ 25kA T T T T T T T T T T T T T T T T T
S125NJ 36kA T T T T T T T T T T T T T T T T T
S125GJ 65kA T T T T T T T T T T T T T T T T T
H125NJ 125kA T T T T T T T T T T T T T T T T T
L125NJ 200kA T T T T T T T T T T T T T T T T T
160A/ S160NJ 36kA T T T T T T T T T T T T T T T T T
250A S160GJ 65kA T T T T T T T T T T T T T T T T T
E250NJ 25kA T T T T T T T T T T T T T T T T T
S250NJ 36kA T T T T T T T T T T T T T T T T T
S250GJ 65kA T T T T T T T T T T T T T T T T T
S250PE 70kA T T T T T T T T T T T T T T T T T
H250NJ 125kA T T T T T T T T T T T T T T T T T
L250NJ 200KA T T T T T T T T T T T T T T T T T
400A/ E400NJ 25kA T T T T T T T T T T T T T T T T T
630A S400CJ 36kA T T T T T T T T T T T T T T T T T
S400NJ 50kA T T T T T T T T T T T T T T T T T
S400NE 50kA T T T T T T T T T T T T T T T T T
S400GJ 70kA T T T T T T T T T T T T T T T T T
S400GE 70kA T T T T T T T T T T T T T T T T T
S400PJ 85kA T T T T T T T T T T T T T T T T T
S400PE 85kA T T T T T T T T T T T T T T T T T
H400NJ 125kA T T T T T T T T T T T T T T T T T
H400NE 125kA T T T T T T T T T T T T T T T T T
E630NE 36kA T T T T T T T T T T T T T T T T T
S630CE 50kA T T T T T T T T T T T T T T T T T
S630GE 70kA T T T T T T T T T T T T T T T T T
800A XS800NJ 65kA T T T T T T T T T T T T T T T T T
XH800SE 65kA T T T T T T T T T T T T T T T T T
XH800PJ 100kA T T T T T T T T T T T T T T T T T
XS800SE 50kA T T T T T T T T T T T T T T T T T
1250A/ XS1250SE 65kA - T T T T T T T T T T T T T T T T
1600A XS1600SE 85kA - - - T T T T T T T T T T T T T T
