SPECIFICATION SHEET

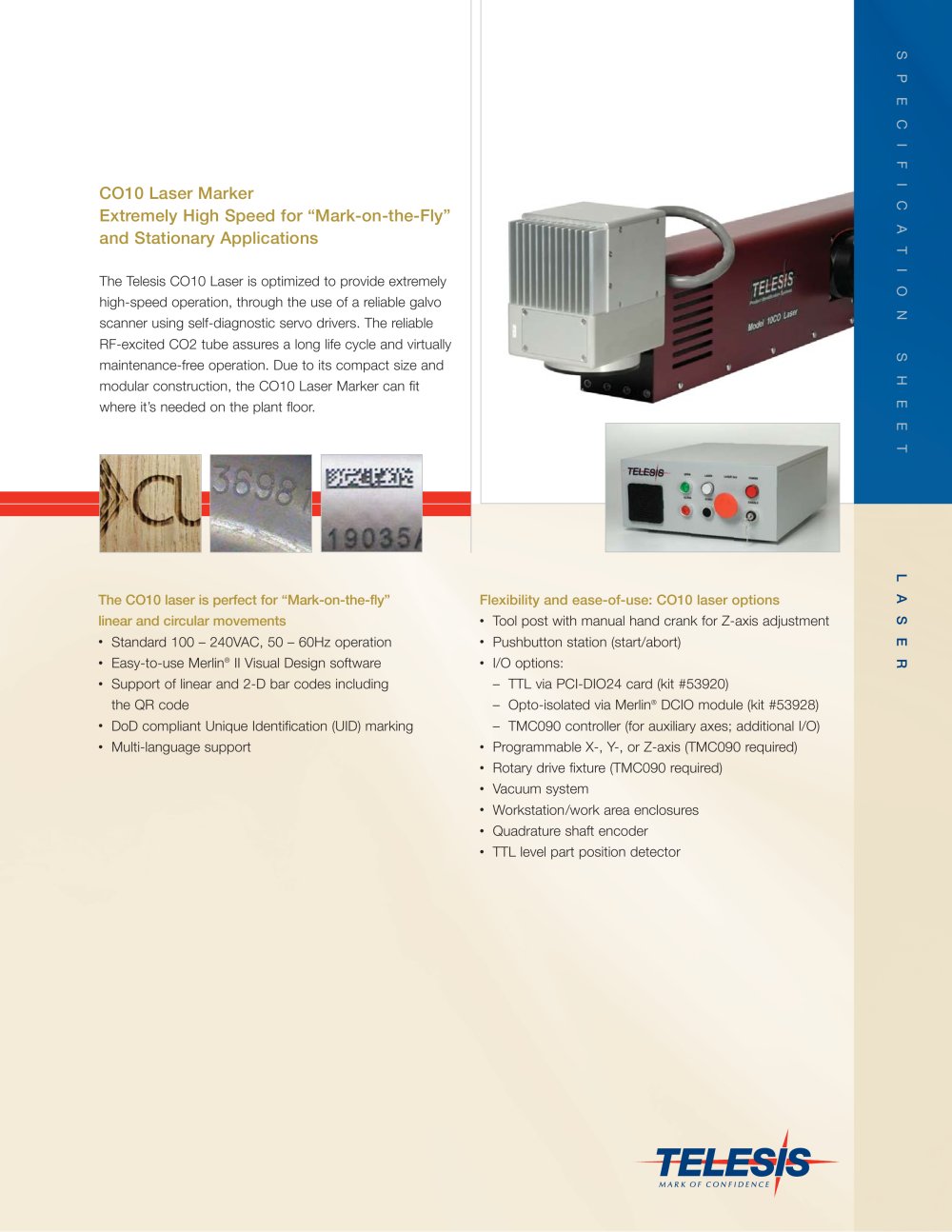

Telesis SABRE® 10CO, 30CO, 50CO C02 Laser Markers - 6141 CO10 Laser MarkerExtremely High Speed for “Mark-on-the-Fly” and Stationary Applications

The Telesis CO10 Laser is optimized to provide extremelyhigh-speed operation, through the use of a reliable galvo scanner using self-diagnostic servo drivers. The reliable RF-excited CO2 tube assures a long life cycle and virtually maintenance-free operation. Due to its compact size and modular construction, the CO10 Laser Marker can fit where it’s needed on the plant floor.
LASER The CO10 laser is perfect for “Mark-on-the-fly” linear and circular movements Flexibility and ease-of-use: CO10 laser options
• Tool post with manual hand crank for Z-axis adjustment
• Standard 100 – 240VAC, 50 – 60Hz operation
• Pushbutton station (start/abort)
• Easy-to-use Merlin
® II Visual Design software
• I/O options: – TTL via PCI-DIO24 card (kit #53920) – Opto-isolated via Merlin
• Support of linear and 2-D bar codes including the QR code
® DCIO module (kit #53928)– TMC090 controller (for auxiliary axes; additional I/O)
• DoDcompliant Unique Identification (UID) marking
• Multi-language support
• Programmable X-, Y-, or Z-axis (TMC090 required)
• Rotary drive fixture (TMC090 required)
• Vacuum system
• Workstation/work area enclosures
• Quadrature shaft encoder
• TTL level part position detector
