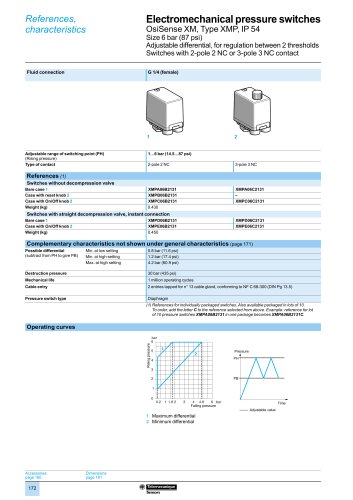

Sensors for pressure control OsiSense XM - 174 / 202 Pages

Electromechanical pressure switches

References,
characteristics

OsiSense XM, Type XMP, IP 54

Size 6 bar (87 psi)
Adjustable differential, for regulation between 2 thresholds
Switches with 2-pole 2 NC or 3-pole 3 NC contact

Fluid connection

G 1/4 (female)

1

2
1

3

Adjustable range of switching point (PH)
(Rising pressure)
Type of contact

2

1…6 bar (14.5…87 psi)
2-pole 2 NC

3-pole 3 NC

XMPA06B2131
XMPB06B2131
XMPC06B2131
0.430

XMPA06C2131

XMPC06C2131

References (1)
Switches without decompression valve

4

Bare case 1
Case with reset knob 2
Case with On/Off knob 2
Weight (kg)

Switches with straight decompression valve, instant connection
Bare case 1
Case with On/Off knob 2
Weight (kg)

5

XMPD06B2131
XMPE06B2131
0.450

XMPD06C2131
XMPE06C2131

Complementary characteristics not shown under general characteristics (page 171)
Possible differential
(subtract from PH to give PB)

Min. at low setting
Min. at high setting
Max. at high setting

0.8 bar (11.6 psi)
1.2 bar (17.4 psi)
4.2 bar (60.9 psi)

Destruction pressure

6

30 bar (435 psi)

Mechanical life

1 million operating cycles

Cable entry

2 entries tapped for n° 13 cable gland, conforming to NF C 68-300 (DIN Pg 13.5)

Pressure switch type

Diaphragm
(1) References for individually packaged switches. Also available packaged in lots of 10.
To order, add the letter C to the reference selected from above. Example: reference for lot
of 10 pressure switches XMPA06B2131 in one package becomes XMPA06B2131C.

Operating curves
Rising pressure

7

8

bar
6

1

5

2

Pressure

PH

4
3

PB

2
1
0
0.2

9

1 1.8 2

3

4 4.8
6 bar
Falling pressure

Time
Adjustable value

1 Maximum differential
2 Minimum differential

10
Accessories:
page 180

172

Dimensions:
page 181
