Isco 710 Ultrasonic Flow Module

Isco 710 Ultrasonic Flow Module
2Pages

Catalog excerpts

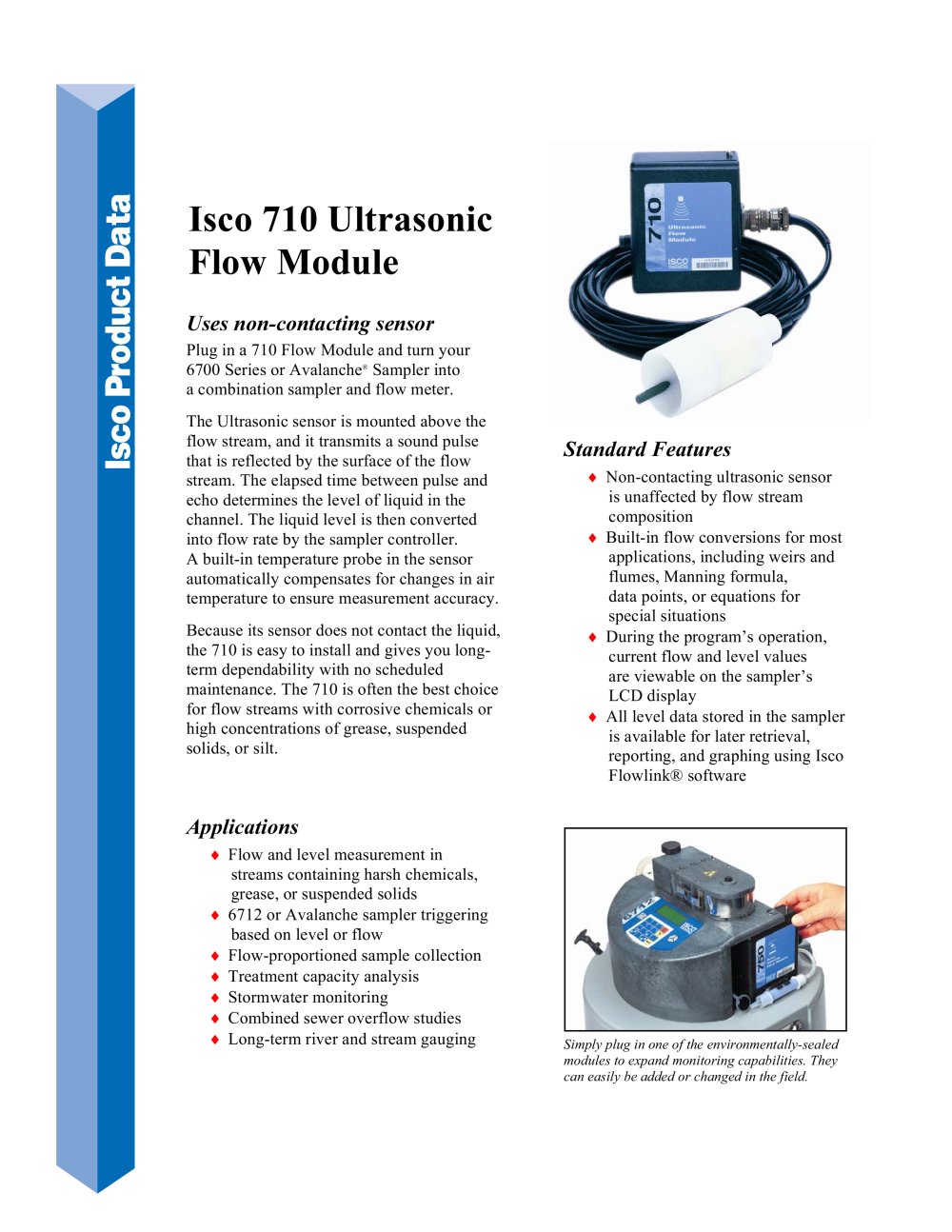

Isco 710 Ultrasonic Flow Module Uses non-contacting sensor Plug in a 710 Flow Module and turn your 6700 Series or Avalanche® Sampler into a combination sampler and flow meter. The Ultrasonic sensor is mounted above the flow stream, and it transmits a sound pulse that is reflected by the surface of the flow stream. The elapsed time between pulse and echo determines the level of liquid in the channel. The liquid level is then converted into flow rate by the sampler controller. A built-in temperature probe in the sensor automatically compensates for changes in air temperature to ensure measurement accuracy. Because its sensor does not contact the liquid, the 710 is easy to install and gives you longterm dependability with no scheduled maintenance. The 710 is often the best choice for flow streams with corrosive chemicals or high concentrations of grease, suspended solids, or silt. Standard Features .. Non-contacting ultrasonic sensor is unaffected by flow stream composition .. Built-in flow conversions for most applications, including weirs and flumes, Manning formula, data points, or equations for special situations .. During the program’s operation, current flow and level values are viewable on the sampler’s LCD display .. All level data stored in the sampler is available for later retrieval, reporting, and graphing using Isco Flowlink® software Applications .. Flow and level measurement in streams containing harsh chemicals, grease, or suspended solids .. 6712 or Avalanche sampler triggering based on level or flow .. Flow-proportioned sample collection .. Treatment capacity analysis .. Stormwater monitoring .. Combined sewer overflow studies .. Long-term river and stream gauging Simply plug in one of the environmentally-sealed modules to expand monitoring capabilities. They can easily be added or changed in the field.

Open the catalog to page 1

Teledyne Isco, Inc. 4700 Superior Street Lincoln NE 68504 USA Phone: (402) 464-0231 USA and Canada: (800) 228-4373 Fax: (402) 465-3022 E-Mail: info@isco.com Internet: www.isco.com Ordering Information Description Part Number 710 Ultrasonic Flow Module 68-6700-049 710 Accessories Sensor Cable Clamp Sensor Cable Straightener Sensor Mounting Bracket Sensor Sunshade Sensor Floor Mount Calibration Target 60-3004-129 60-3213-061 60-2443-092 60-3004-142 60-3004-117 60-3004-143 Specifications 710 Module Size (H x W x D) 4.9 x 5.7 x 2.0 in 12.4 x 14.5 x 5.1 cm Weight 1.1 lbs 0.5 kg Material...

Open the catalog to page 2
