Isco 710 Ultrasonic Flow Module - Teledyne Isco - #2

Text version of the page

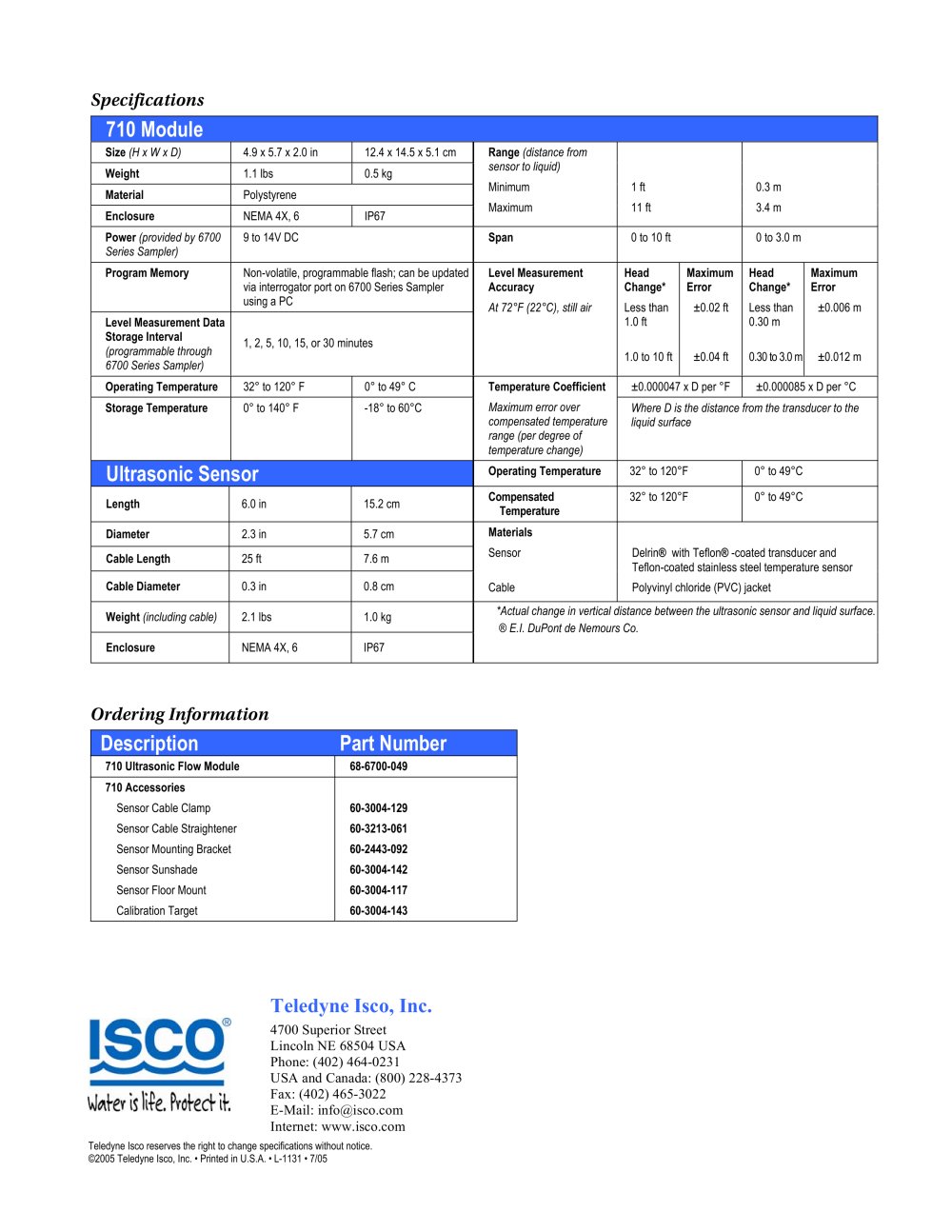

Teledyne Isco, Inc. 4700 Superior Street Lincoln NE 68504 USA Phone: (402) 464-0231 USA and Canada: (800) 228-4373 Fax: (402) 465-3022 E-Mail: info@isco.com Internet: www.isco.com Ordering Information Description Part Number 710 Ultrasonic Flow Module 68-6700-049 710 Accessories Sensor Cable Clamp Sensor Cable Straightener Sensor Mounting Bracket Sensor Sunshade Sensor Floor Mount Calibration Target 60-3004-129 60-3213-061 60-2443-092 60-3004-142 60-3004-117 60-3004-143 Specifications 710 Module Size (H x W x D) 4.9 x 5.7 x 2.0 in 12.4 x 14.5 x 5.1 cm Weight 1.1 lbs 0.5 kg Material Polystyrene Enclosure NEMA 4X, 6 IP67 Range (distance from sensor to liquid) Minimum Maximum 1 ft 11 ft 0.3 m 3.4 m Power (provided by 6700 Series Sampler) 9 to 14V DC Span 0 to 10 ft 0 to 3.0 m Program Memory Non-volatile, programmable flash; can be updated via interrogator port on 6700 Series Sampler using a PC Level Measurement Data Storage Interval (programmable through 6700 Series Sampler) 1, 2, 5, 10, 15, or 30 minutes Level Measurement Accuracy At 72°F (22°C), still air Head Change* Less than 1.0 ft 1.0 to 10 ft Maximum Error ±0.02 ft ±0.04 ft Head Change* Less than 0.30 m 0.30 to 3.0 m Maximum Error ±0.006 m ±0.012 m Operating Temperature 32° to 120° F 0° to 49° C ±0.000047 x D per °F ±0.000085 x D per °C Storage Temperature 0° to 140° F -18° to 60°C Temperature Coefficient Maximum error over compensated temperature range (per degree of temperature change) Where D is the distance from the transducer to the liquid surface Ultrasonic Sensor Operating Temperature 32° to 120°F 0° to 49°C Length 6.0 in 15.2 cm Compensated Temperature 32° to 120°F 0° to 49°C Diameter 2.3 in 5.7 cm Cable Length 25 ft 7.6 m Cable Diameter 0.3 in 0.8 cm Materials Sensor Cable Delrin® with Teflon® -coated transducer and Teflon-coated stainless steel temperature sensor Polyvinyl chloride (PVC) jacket Weight (including cable) 2.1 lbs 1.0 kg Enclosure NEMA 4X, 6 IP67 *Actual change in vertical distance between the ultrasonic sensor and liquid surface. ® E.I. DuPont de Nemours Co. Teledyne Isco reserves the right to change specifications without notice. ©2005 Teledyne Isco, Inc. • Printed in U.S.A. • L-1131 • 7/05
