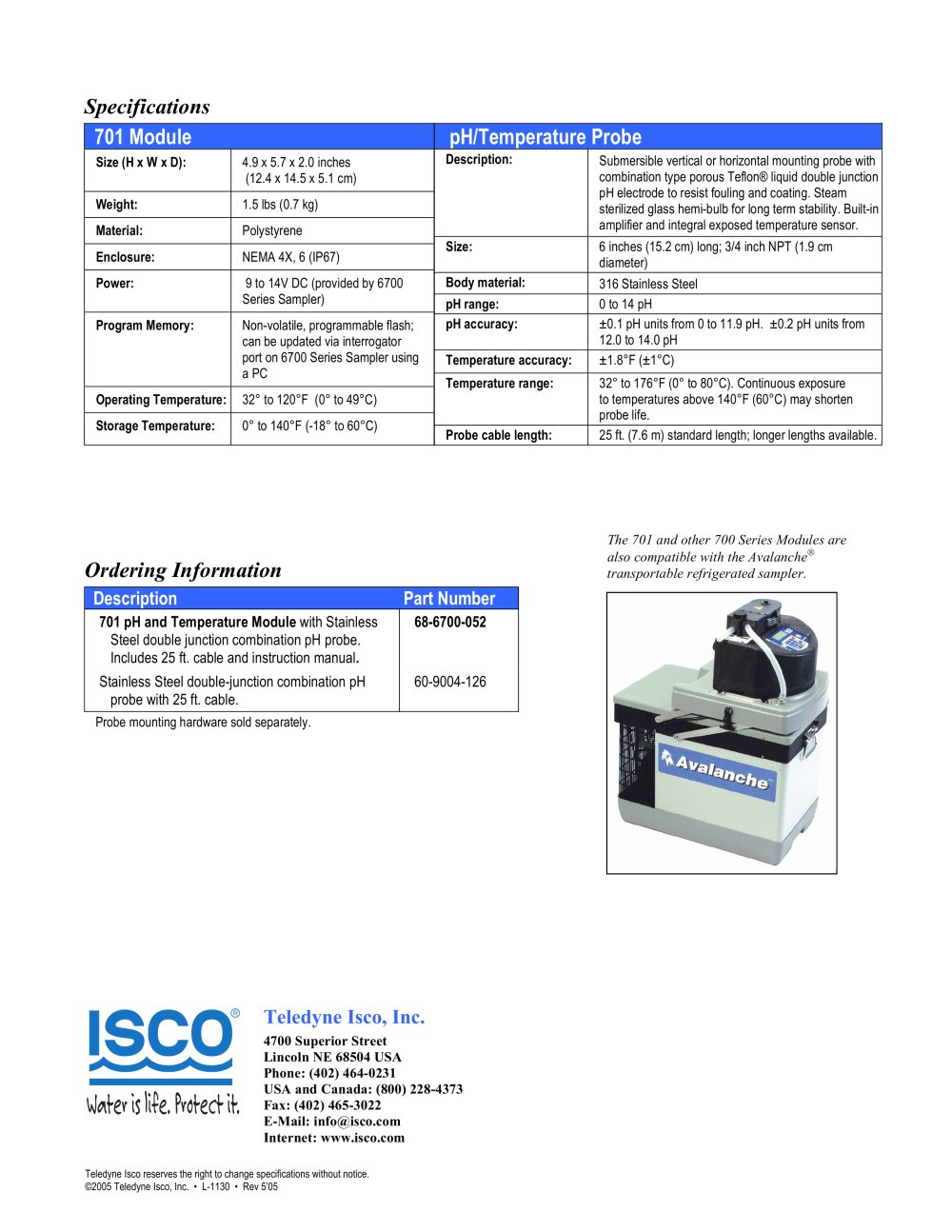

Teledyne Isco, Inc. 4700 Superior Street Lincoln NE 68504 USA Phone: (402) 464-0231 USA and Canada: (800) 228-4373 Fax: (402) 465-3022 E-Mail: info@isco.com Internet: www.isco.com Isco is continually improving its products and reserves the right to change specifications without notice. ©2002 Isco, Inc. . • {job number} • Rev {date} Specifications 701 Module Size (H x W x D): 4.9 x 5.7 x 2.0 inches (12.4 x 14.5 x 5.1 cm) Weight: 1.5 lbs (0.7 kg) Material: Polystyrene Enclosure: NEMA 4X, 6 (IP67) Power: 9 to 14V DC (provided by 6700 Series Sampler) Program Memory: Non-volatile, programmable flash; can be updated via interrogator port on 6700 Series Sampler using a PC Operating Temperature: 32° to 120°F (0° to 49°C) Storage Temperature: 0° to 140°F (-18° to 60°C) Ordering Information Description Part Number 701 pH and Temperature Module with Stainless Steel double junction combination pH probe. Includes 25 ft. cable and instruction manual. 68-6700-052 Stainless Steel double-junction combination pH probe with 25 ft. cable. 60-9004-126 Probe mounting hardware sold separately. Teledyne Isco reserves the right to change specifications without notice. 2005 Teledyne Isco, Inc. • L-1130 • Rev 5’05 The 701 and other 700 Series Modules are also compatible with the AvalancheÆÊ transportable refrigerated sampler. pH/Temperature Probe Description: Submersible vertical or horizontal mounting probe with combination type porous Teflon® liquid double junction pH electrode to resist fouling and coating. Steam sterilized glass hemi-bulb for long term stability. Built-in amplifier and integral exposed temperature sensor. Size: 6 inches (15.2 cm) long; 3/4 inch NPT (1.9 cm diameter) Body material: 316 Stainless Steel pH range: 0 to 14 pH pH accuracy: ±0.1 pH units from 0 to 11.9 pH. ±0.2 pH units from 12.0 to 14.0 pH Temperature accuracy: ±1.8°F (±1°C) Temperature range: 32° to 176°F (0° to 80°C). Continuous exposure to temperatures above 140°F (60°C) may shorten probe life. Probe cable length: 25 ft. (7.6 m) standard length; longer lengths available.
