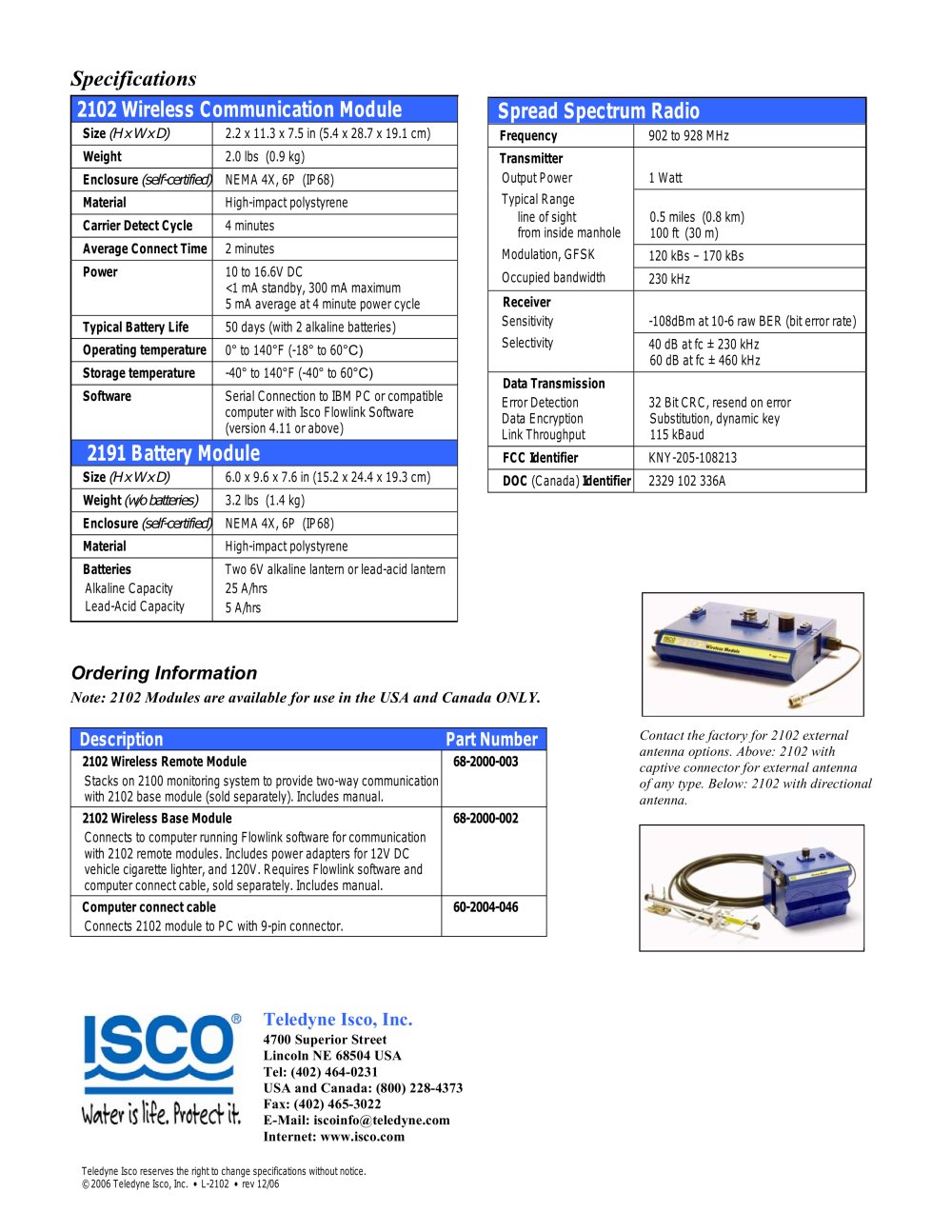

Isco reserves the right to change specifications without notice. ©2006 Teledyne Isco. • L-2102 • 11/06 Ordering Information Note: 2102 Modules are available for use in the USA and Canada ONLY. Description Part Number 2102 Wireless Remote Module Stacks on 2100 monitoring system to provide two-way communication with 2102 base module (sold separately). Includes manual. 68-2000-003 2102 Wireless Base Module Connects to computer running Flowlink software for communication with 2102 remote modules. Includes power adapters for 12V DC vehicle cigarette lighter, and 120V. Requires Flowlink software and computer connect cable, sold separately. Includes manual. 68-2000-002 Computer connect cable Connects 2102 module to PC with 9-pin connector. 60-2004-046 Specifications 2102 Wireless Communication Module Size (H x W x D) 2.2 x 11.3 x 7.5 in (5.4 x 28.7 x 19.1 cm) Weight 2.0 lbs (0.9 kg) Enclosure (self-certified) NEMA 4X, 6P (IP68) Material High-impact polystyrene Carrier Detect Cycle 4 minutes Average Connect Time 2 minutes Power 10 to 16.6V DC <1 mA standby, 300 mA maximum 5 mA average at 4 minute power cycle Typical Battery Life 50 days (with 2 alkaline batteries) Operating temperature 0° to 140°F (-18° to 60°C) Storage temperature -40° to 140°F (-40° to 60°C) Software Serial Connection to IBM PC or compatible computer with Isco Flowlink Software (version 4.11 or above) 2191 Battery Module Size (H x W x D) 6.0 x 9.6 x 7.6 in (15.2 x 24.4 x 19.3 cm) Weight (w/o batteries) 3.2 lbs (1.4 kg) Enclosure (self-certified) NEMA 4X, 6P (IP68) Material High-impact polystyrene Batteries Alkaline Capacity Lead-Acid Capacity Two 6V alkaline lantern or lead-acid lantern 25 A/hrs 5 A/hrs Spread Spectrum Radio Frequency 902 to 928 MHz Transmitter Output Power 1 Watt Typical Range line of sight from inside manhole 0.5 miles (0.8 km) 100 ft (30 m) Modulation, GFSK 120 kBs – 170 kBs Occupied bandwidth 230 kHz Receiver Sensitivity -108dBm at 10-6 raw BER (bit error rate) Selectivity 40 dB at fc ± 230 kHz 60 dB at fc ± 460 kHz Data Transmission Error Detection Data Encryption Link Throughput 32 Bit CRC, resend on error Substitution, dynamic key 115 kBaud FCC Identifier KNY-205-108213 DOC (Canada) Identifier 2329 102 336A Contact the factory for 2102 external antenna options. Above: 2102 with captive connector for external antenna of any type. Below: 2102 with directional antenna. Teledyne Isco, Inc. 4700 Superior Street Lincoln NE 68504 USA Tel: (402) 464-0231 USA and Canada: (800) 228-4373 Fax: (402) 465-3022 E-Mail: iscoinfo@teledyne.com Internet: www.isco.com Teledyne Isco reserves the right to change specifications without notice. © 2006 Teledyne Isco, Inc. • L-2102 • rev 12/06
