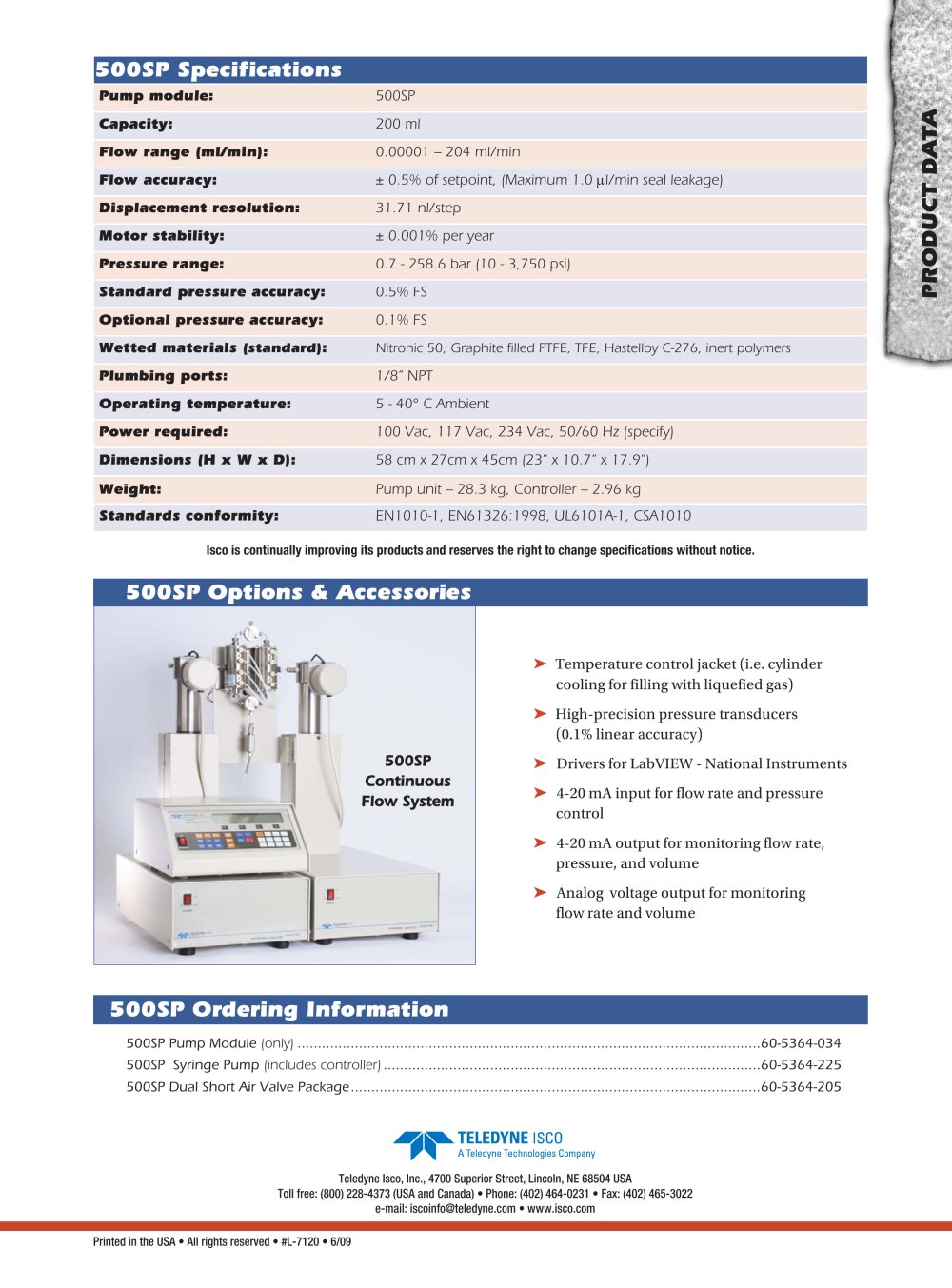

. Temperature control jacket (i.e. cylinder cooling for filling with liquefied gas) . High-precision pressure transducers (0.1% linear accuracy) . Drivers for LabVIEW - National Instruments . 4-20 mA input for flow rate and pressure control . 4-20 mA output for monitoring flow rate, pressure, and volume . Analog voltage output for monitoring flow rate and volume Pump module: 500SP 500SP Pump Module (only) .................................................................................................................60-5364-034 500SP Syringe Pump (includes controller) ............................................................................................60-5364-225 500SP Dual Short Air Valve Package....................................................................................................60-5364-205 500SP Ordering Information 500SP Specifications Capacity: 200 ml Flow range (ml/min): 0.00001 – 204 ml/min Flow accuracy: ± 0.5% of setpoint, (Maximum 1.0 ìl/min seal leakage) Displacement resolution: 31.71 nl/step Motor stability: ± 0.001% per year Pressure range: 0.7 - 258.6 bar (10 - 3,750 psi) Standard pressure accuracy: 0.5% FS Optional pressure accuracy: 0.1% FS Wetted materials (standard): Nitronic 50, Graphite filled PTFE, TFE, Hastelloy C-276, inert polymers Plumbing ports: 1/8” NPT Operating temperature: 5 - 40° C Ambient Power required: 100 Vac, 117 Vac, 234 Vac, 50/60 Hz (specify) Dimensions (H x W x D): 58 cm x 27cm x 45cm (23” x 10.7” x 17.9”) Weight: Pump unit – 28.3 kg, Controller – 2.96 kg Standards conformity: EN1010-1, EN61326:1998, UL6101A-1, CSA1010 Isco is continually improving its products and reserves the right to change specifications without notice. PRODUCT DATA 500SP Continuous Flow System Printed in the USA • All rights reserved • #L-7120 • 6/09 Teledyne Isco, Inc., 4700 Superior Street, Lincoln, NE 68504 USA Toll free: (800) 228-4373 (USA and Canada) • Phone: (402) 464-0231 • Fax: (402) 465-3022 e-mail: iscoinfo@teledyne.com • www.isco.com 500SP Options & Accessories
