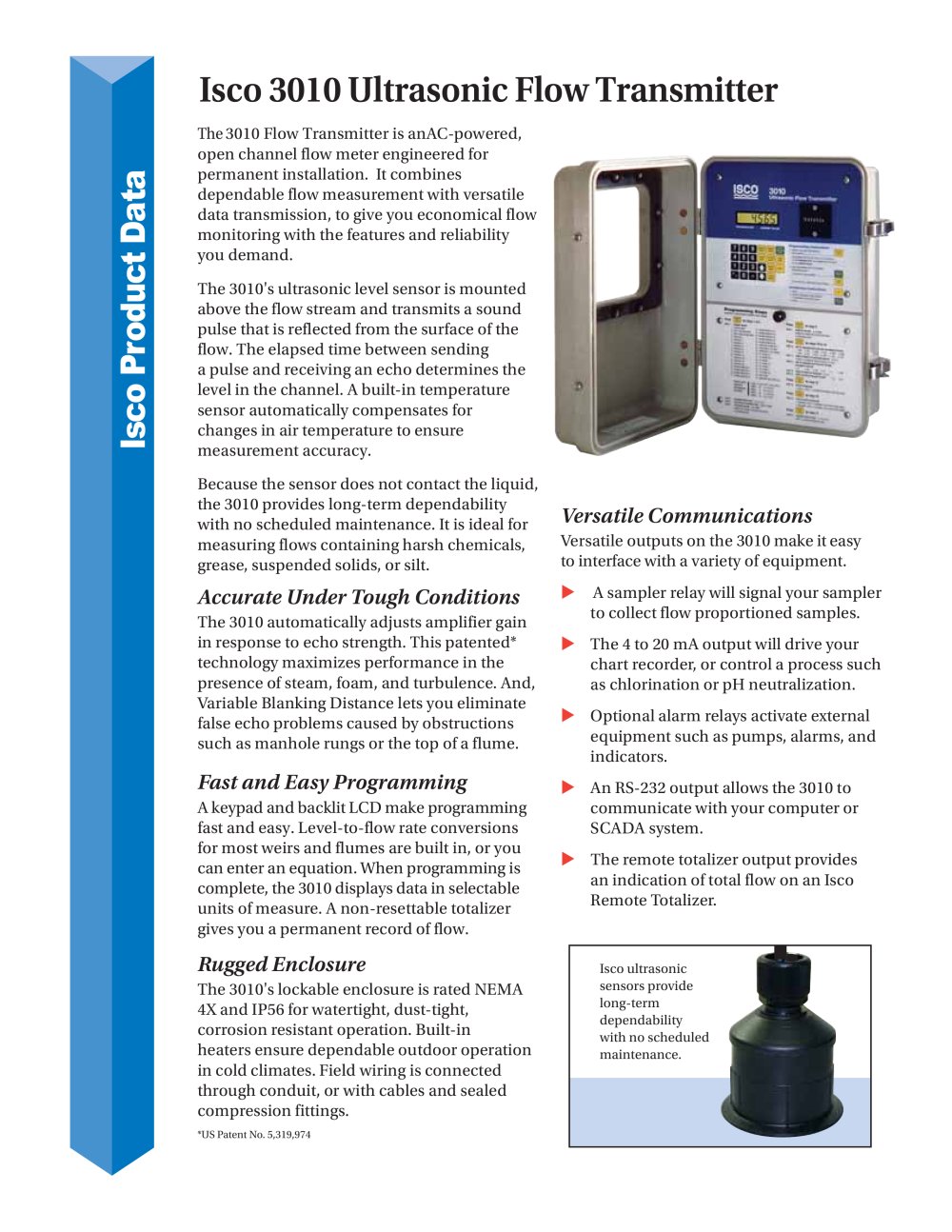

3010 Ultrasonic Flow Transmitter - Teledyne Isco - #1

Text version of the page

The 3010 Flow Transmitter is anAC-powered, open channel flow meter engineered for permanent installation. It combines dependable flow measurement with versatile data transmission, to give you economical flow monitoring with the features and reliability you demand. The 3010's ultrasonic level sensor is mounted above the flow stream and transmits a sound pulse that is reflected from the surface of the flow. The elapsed time between sending a pulse and receiving an echo determines the level in the channel. A built-in temperature sensor automatically compensates for changes in air temperature to ensure measurement accuracy. Because the sensor does not contact the liquid, the 3010 provides long-term dependability with no scheduled maintenance. It is ideal for measuring flows containing harsh chemicals, grease, suspended solids, or silt. Accurate Under Tough Conditions The 3010 automatically adjusts amplifier gain in response to echo strength. This patented* technology maximizes performance in the presence of steam, foam, and turbulence. And, Variable Blanking Distance lets you eliminate false echo problems caused by obstructions such as manhole rungs or the top of a flume. Fast and Easy Programming A keypad and backlit LCD make programming fast and easy. Level-to-flow rate conversions for most weirs and flumes are built in, or you can enter an equation. When programming is complete, the 3010 displays data in selectable units of measure. A non-resettable totalizer gives you a permanent record of flow. Rugged Enclosure The 3010's lockable enclosure is rated NEMA 4X and IP56 for watertight, dust-tight, corrosion resistant operation. Built-in heaters ensure dependable outdoor operation in cold climates. Field wiring is connected through conduit, or with cables and sealed compression fittings. *US Patent No. 5,319,974 Versatile Communications Versatile outputs on the 3010make it easy to interface with a variety of equipment. .. A sampler relay will signal your sampler to collect flow proportioned samples. .. The 4 to 20 mA output will drive your chart recorder, or control a process such as chlorination or pH neutralization. .. Optional alarm relays activate external equipment such as pumps, alarms, and indicators. .. An RS-232 output allows the 3010 to communicate with your computer or SCADA system. ....The remote totalizer output provides an indication of total flow on an Isco Remote Totalizer. Isco 3010 Ultrasonic Flow Transmitter Isco Product Data Isco ultrasonic sensors provide long-term dependability with no scheduled maintenance.
