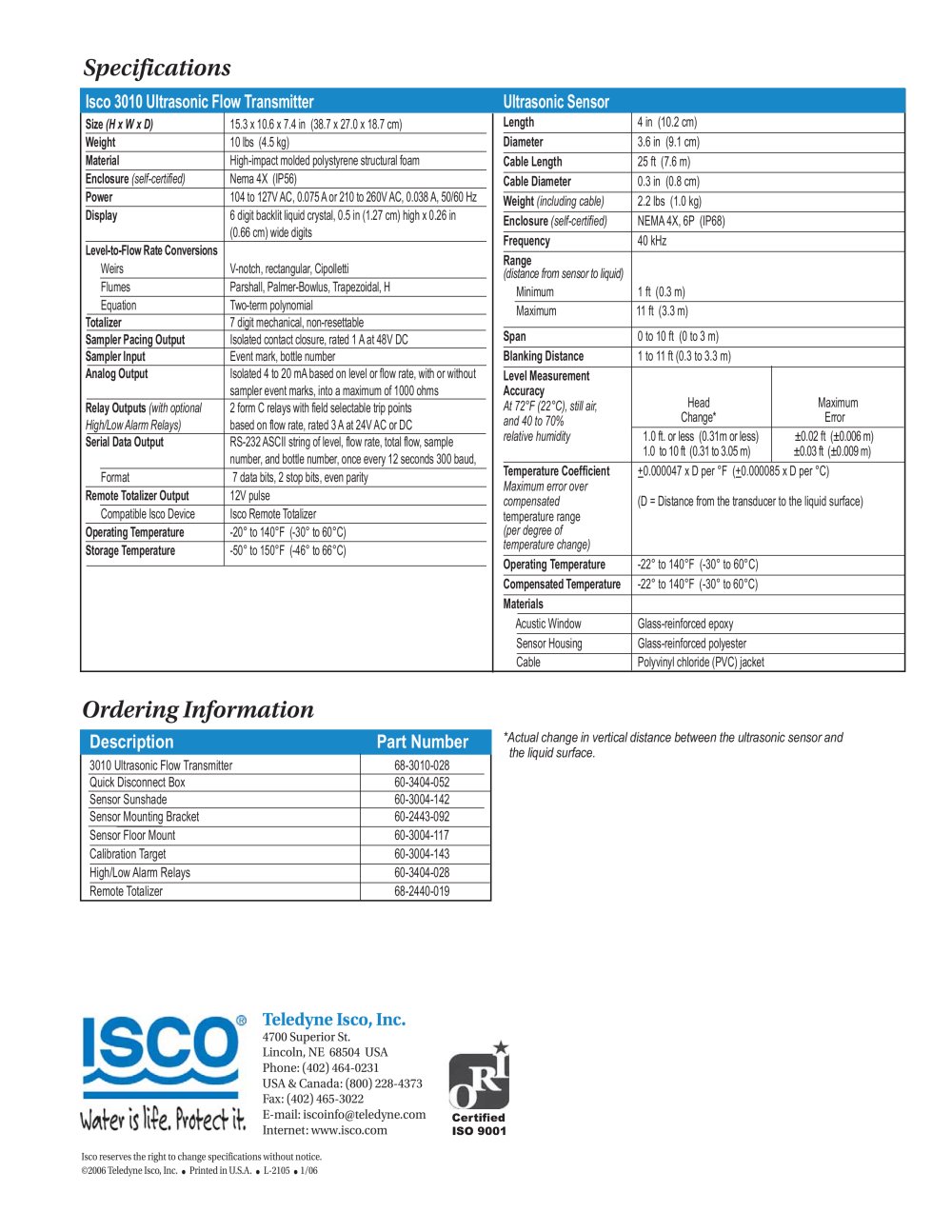

Isco 3010 Ultrasonic Flow Transmitter Size (H x W x D) 15.3 x 10.6 x 7.4 in (38.7 x 27.0 x 18.7 cm) Weight 10 lbs (4.5 kg) Material High-impact molded polystyrene structural foam Enclosure (self-certified) Nema 4X (IP56) Power 104 to 127V AC, 0.075 A or 210 to 260V AC, 0.038 A, 50/60 Hz Display 6 digit backlit liquid crystal, 0.5 in (1.27 cm) high x 0.26 in (0.66 cm) wide digits Level-to-Flow Rate Conversions Weirs V-notch, rectangular, Cipolletti Flumes Parshall, Palmer-Bowlus, Trapezoidal, H Equation Two-term polynomial Totalizer 7 digit mechanical, non-resettable Sampler Pacing Output Isolated contact closure, rated 1 A at 48V DC Sampler Input Event mark, bottle number Analog Output Isolated 4 to 20 mA based on level or flow rate, with or without sampler event marks, into a maximum of 1000 ohms Relay Outputs (with optional 2 form C relays with field selectable trip points High/Low Alarm Relays) based on flow rate, rated 3 A at 24V AC or DC Serial Data Output RS-232 ASCII string of level, flow rate, total flow, sample number, and bottle number, once every 12 seconds 300 baud, Format 7 data bits, 2 stop bits, even parity Remote Totalizer Output 12V pulse Compatible Isco Device Isco Remote Totalizer Operating Temperature -20° to 140°F (-30° to 60°C) Storage Temperature -50° to 150°F (-46° to 66°C) Ultrasonic Sensor Length 4 in (10.2 cm) Diameter 3.6 in (9.1 cm) Cable Length 25 ft (7.6 m) Cable Diameter 0.3 in (0.8 cm) Weight (including cable) 2.2 lbs (1.0 kg) Enclosure (self-certified) NEMA 4X, 6P (IP68) Frequency 40 kHz Range (distance from sensor to liquid) Minimum 1 ft (0.3 m) Maximum 11 ft (3.3 m) Span 0 to 10 ft (0 to 3 m) Blanking Distance 1 to 11 ft (0.3 to 3.3 m) Level Measurement Accuracy At 72°F (22°C), still air, Head Maximum and 40 to 70% Change* Error relative humidity 1.0 ft. or less (0.31m or less) ±0.02 ft (±0.006 m) 1.0 to 10 ft (0.31 to 3.05 m) ±0.03 ft (±0.009 m) Temperature Coefficient +0.000047 x D per °F (+0.000085 x D per °C) Maximum error over compensated (D = Distance from the transducer to the liquid surface) temperature range (per degree of temperature change) Operating Temperature -22° to 140°F (-30° to 60°C) Compensated Temperature -22° to 140°F (-30° to 60°C) Materials Acustic Window Glass-reinforced epoxy Sensor Housing Glass-reinforced polyester Cable Polyvinyl chloride (PVC) jacket Specifications Ordering Information Teledyne Isco, Inc. 4700 Superior St. Lincoln, NE 68504 USA Phone: (402) 464-0231 USA & Canada: (800) 228-4373 Fax: (402) 465-3022 E-mail: iscoinfo@teledyne.com Internet: www.isco.com Isco reserves the right to change specifications without notice. ©2006 Teledyne Isco, Inc. • Printed in U.S.A. • L-2105 • 1/06 Description Part Number 3010 Ultrasonic Flow Transmitter 68-3010-028 Quick Disconnect Box 60-3404-052 Sensor Sunshade 60-3004-142 Sensor Mounting Bracket 60-2443-092 Sensor Floor Mount 60-3004-117 Calibration Target 60-3004-143 High/Low Alarm Relays 60-3404-028 Remote Totalizer 68-2440-019 *Actual change in vertical distance between the ultrasonic sensor and the liquid surface.
