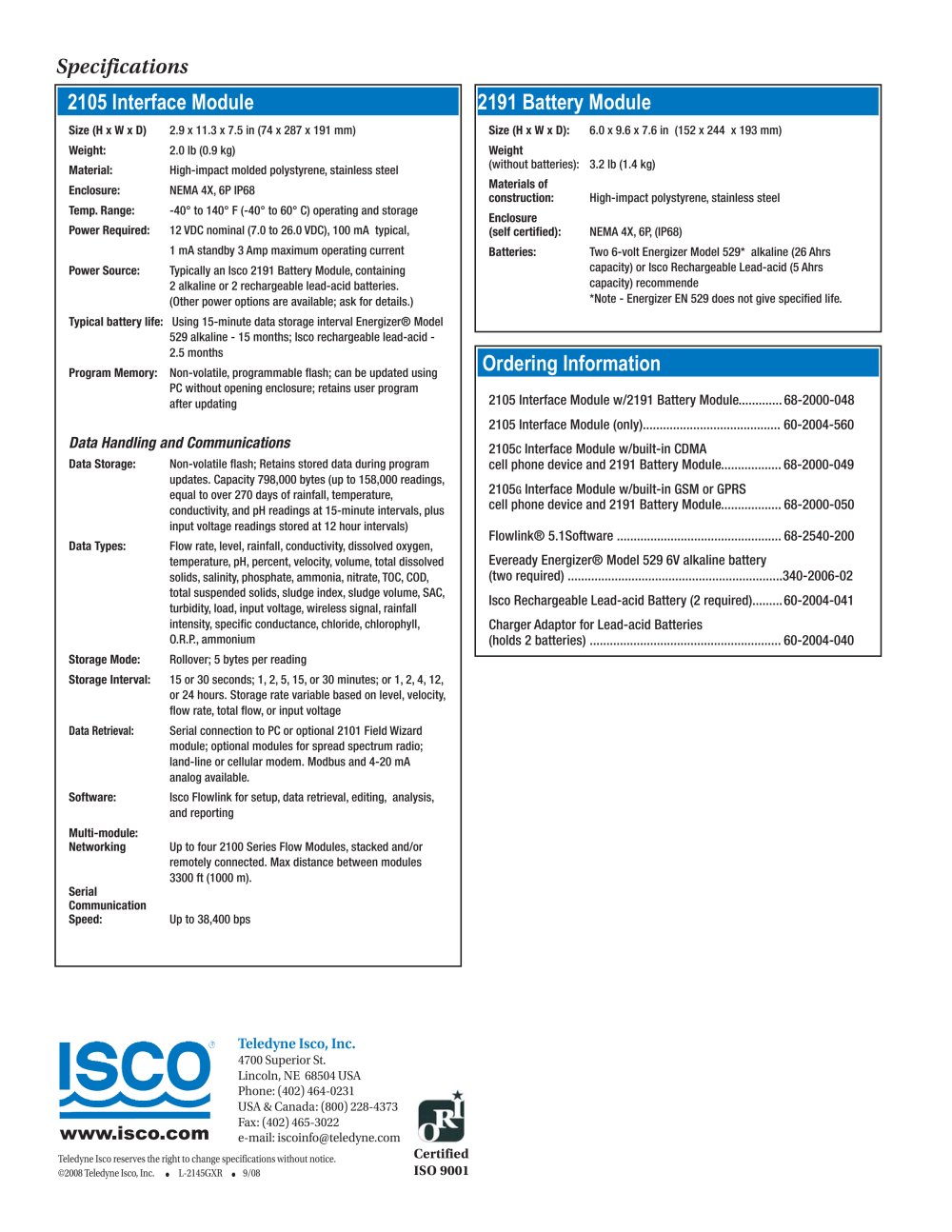

Ordering Information 2105 Interface Module w/2191 Battery Module............. 68-2000-048 2105 Interface Module (only)......................................... 60-2004-560 2105C Interface Module w/built-in CDMA cell phone device and 2191 Battery Module.................. 68-2000-049 2105G Interface Module w/built-in GSM or GPRS cell phone device and 2191 Battery Module.................. 68-2000-050 Flowlink® 5.1Software ................................................. 68-2540-200 Eveready Energizer® Model 529 6V alkaline battery (two required) ................................................................340-2006-02 Isco Rechargeable Lead-acid Battery (2 required).........60-2004-041 Charger Adaptor for Lead-acid Batteries (holds 2 batteries) ......................................................... 60-2004-040 2105 Interface Module Size (H x W x D) 2.9 x 11.3 x 7.5 in (74 x 287 x 191 mm) Weight: 2.0 lb (0.9 kg) Material: High-impact molded polystyrene, stainless steel Enclosure: NEMA 4X, 6P IP68 Temp. Range: -40° to 140° F (-40° to 60° C) operating and storage Power Required: 12 VDC nominal (7.0 to 26.0 VDC), 100 mA typical, 1 mA standby 3 Amp maximum operating current Power Source: Typically an Isco 2191 Battery Module, containing 2 alkaline or 2 rechargeable lead-acid batteries. (Other power options are available; ask for details.) Typical battery life: Using 15-minute data storage interval Energizer® Model 529 alkaline - 15 months; Isco rechargeable lead-acid - 2.5 months Program Memory: Non-volatile, programmable flash; can be updated using PC without opening enclosure; retains user program after updating Data Handling and Communications Data Storage: Non-volatile flash; Retains stored data during program updates. Capacity 798,000 bytes (up to 158,000 readings, equal to over 270 days of rainfall, temperature, conductivity, and pH readings at 15-minute intervals, plus input voltage readings stored at 12 hour intervals) Data Types: Flow rate, level, rainfall, conductivity, dissolved oxygen, temperature, pH, percent, velocity, volume, total dissolved solids, salinity, phosphate, ammonia, nitrate, TOC, COD, total suspended solids, sludge index, sludge volume, SAC, turbidity, load, input voltage, wireless signal, rainfall intensity, specific conductance, chloride, chlorophyll, O.R.P., ammonium Storage Mode: Rollover; 5 bytes per reading Storage Interval: 15 or 30 seconds; 1, 2, 5, 15, or 30 minutes; or 1, 2, 4, 12, or 24 hours. Storage rate variable based on level, velocity, flow rate, total flow, or input voltage Data Retrieval: Serial connection to PC or optional 2101 Field Wizard module; optional modules for spread spectrum radio; land-line or cellular modem. Modbus and 4-20 mA analog available. Software: Isco Flowlink for setup, data retrieval, editing, analysis, and reporting Multi-module: Networking Up to four 2100 Series Flow Modules, stacked and/or remotely connected. Max distance between modules 3300 ft (1000 m). Serial Communication Speed: Up to 38,400 bps 2191 Battery Module Size (H x W x D): 6.0 x 9.6 x 7.6 in (152 x 244 x 193 mm) Weight (without batteries): 3.2 lb (1.4 kg) Materials of construction: High-impact polystyrene, stainless steel Enclosure (self certified): NEMA 4X, 6P, (IP68) Batteries: Two 6-volt Energizer Model 529* alkaline (26 Ahrs capacity) or Isco Rechargeable Lead-acid (5 Ahrs capacity) recommende *Note - Energizer EN 529 does not give specified life. Teledyne Isco, Inc. 4700 Superior St. Lincoln, NE 68504 USA Phone: (402) 464-0231 USA & Canada: (800) 228-4373 Fax: (402) 465-3022 e-mail: iscoinfo@teledyne.com Teledyne Isco reserves the right to change specifications without notice. ©2008 Teledyne Isco, Inc. • L-2145GXR • 9/08 Specifications Certified ISO 9001 www.isco.com
