HPM-760S

Product catalog summary

Overview: The HPM-760S is a vacuum measurement device designed for a range of applications from 0 to 1000 Torr. It features a linear analog output and is constructed with 316 stainless steel for durability and resistance to various gases.

Key Features:

Linear Analog Output: Options include 0-5 VDC, 0-10 VDC, 2-10 mA, and 4-20 mA.
Fast response time of less than 2 seconds.
Wide input voltage range from 15 to 30 VDC.
Easy access for zero and span adjustments.

Applications: Suitable for vacuum distillation, heat treating, thin film processes, transformer maintenance, laser systems, glove boxes, vacuum furnaces, automotive parts manufacturing, and vacuum cooling.

Benefits:

Economical and accurate.
Independent of gas composition.
Rugged, small, and lightweight design.
Easy installation and operation.

Specifications:

Accuracy: ± (0.3% of reading + 1 Torr) for pressures ≤ 760 Torr; ± (1.0% of reading + 1 Torr) for pressures > 760 Torr.
Operating temperature range: 0°C to 50°C.
Maximum overpressure: 30 psig.
Weight: Approximately 0.6 lb (0.27 kg).

Optional Accessories: The THCD-100 power supply and readout offers a 5-digit display, digital communications, alarm outputs, and configurable display units. It is compatible with various pressure transducers and mass flow controllers.

Additional Information: The HPM-760S is available with different system fittings and cable options for connectivity. It is important to note that the THCD-100 is not directly compatible with the 4-20 mA and 2-10 mA versions of the HPM-760S.

Catalog excerpts

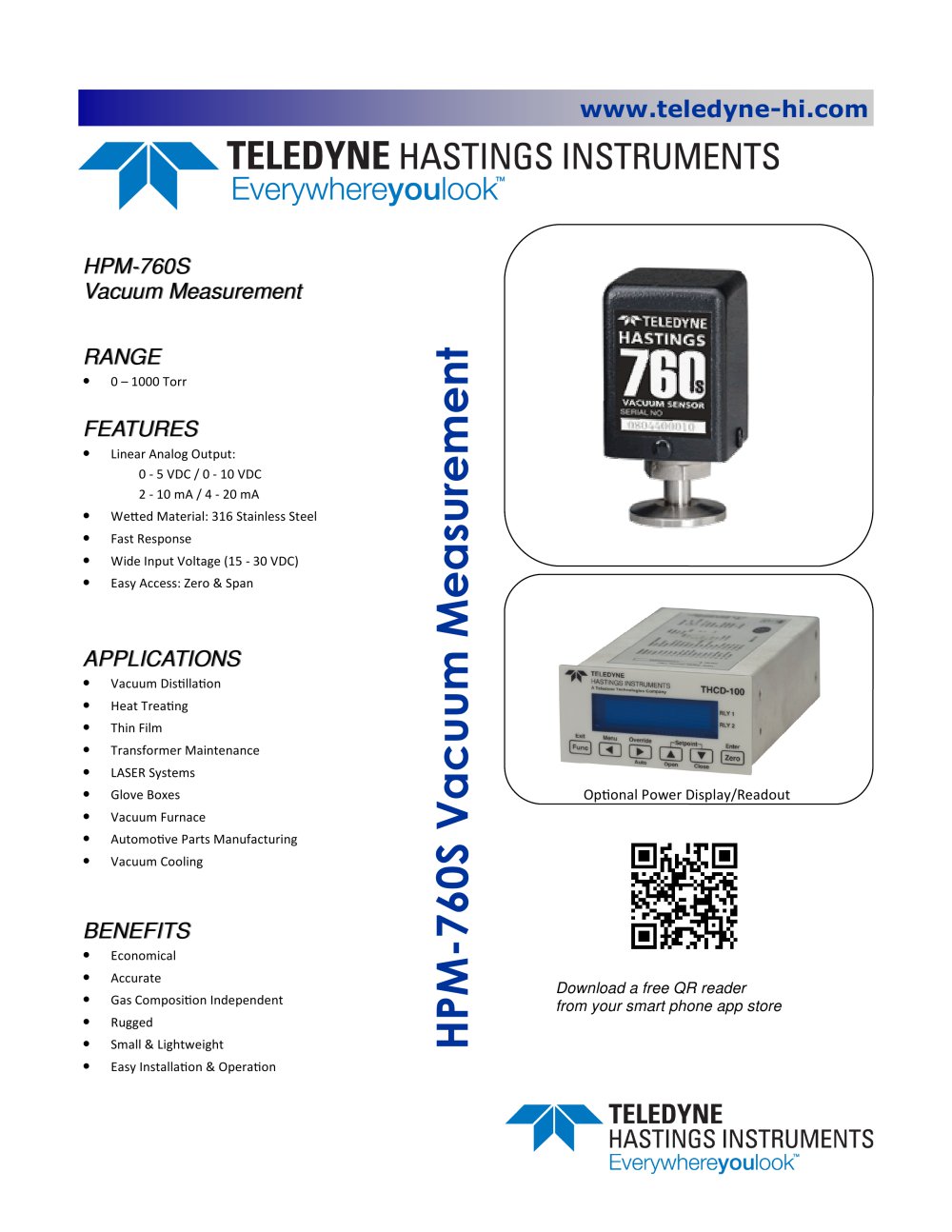

TELEDYNE HASTINGS INSTRUMENTSEverywhereyoulook™ HPM-760S Vacuum Measurement RANGE • 0 - 1000 Torr FEATURES • Linear Analog Output: 0 - 5 VDC / 0 - 10 VDC 2 - 10 mA / 4 - 20 mA • Wetted Material: 316 Stainless Steel • Fast Response • Wide Input Voltage (15 - 30 VDC) • Easy Access: Zero & Span APPLICATIONS • Vacuum Distillation • Heat Treating • Thin Film • Transformer Maintenance • LASER Systems • Glove Boxes • Vacuum Furnace • Automotive Parts Manufacturing • Vacuum Cooling BENEFITS • Economical • Accurate • Gas Composition Independent • Rugged • Small & Lightweight • Easy Installation & Operation oo O IV I Download a free QR reader from your smart phone app store TELEDYNE HASTINGS INSTRUMENTS Everywhereyoulook™

Open the catalog to page 1

DESCRIPTION The HPM-760S module is an exceptionally stable, accurate, and repeatable absolute pressure gauge. The output signal is a highly linear voltage or current signal suitable for many process control applications. As an absolute pressure gauge, readings are unaffected by gas composition. This compact instrument is constructed of 316 stainless steel on all wetted surfaces. The sensor is available as a stand-alone instrument, or may be configured with either the THCD-100 or the THPS-400 Digital Power Supplies. This is an economical sensor alternative to higher cost systems. The 760S module...

Open the catalog to page 2

HPM-760S Shipment Includes • HPM-760S Vacuum Transducer Module • Electrical Connector (4-pin) Optional THCD-100 Power Supply/Readout Stock # 10 Foot Serial Cable For best resolution, use 0-10 VDC (Output=02) version of HPM-760S THCD-100 is not directly compatible w ith 4-20 mA and 2-10 mA versions TELEDYNE HASTINGS INSTRUMENTS Everywhereyoulook” World Wide Web: http://www.teledyne-hi.com E-mail: [email protected] P.O. Box 1436

Open the catalog to page 4

HPM-760S

HPM-760S
