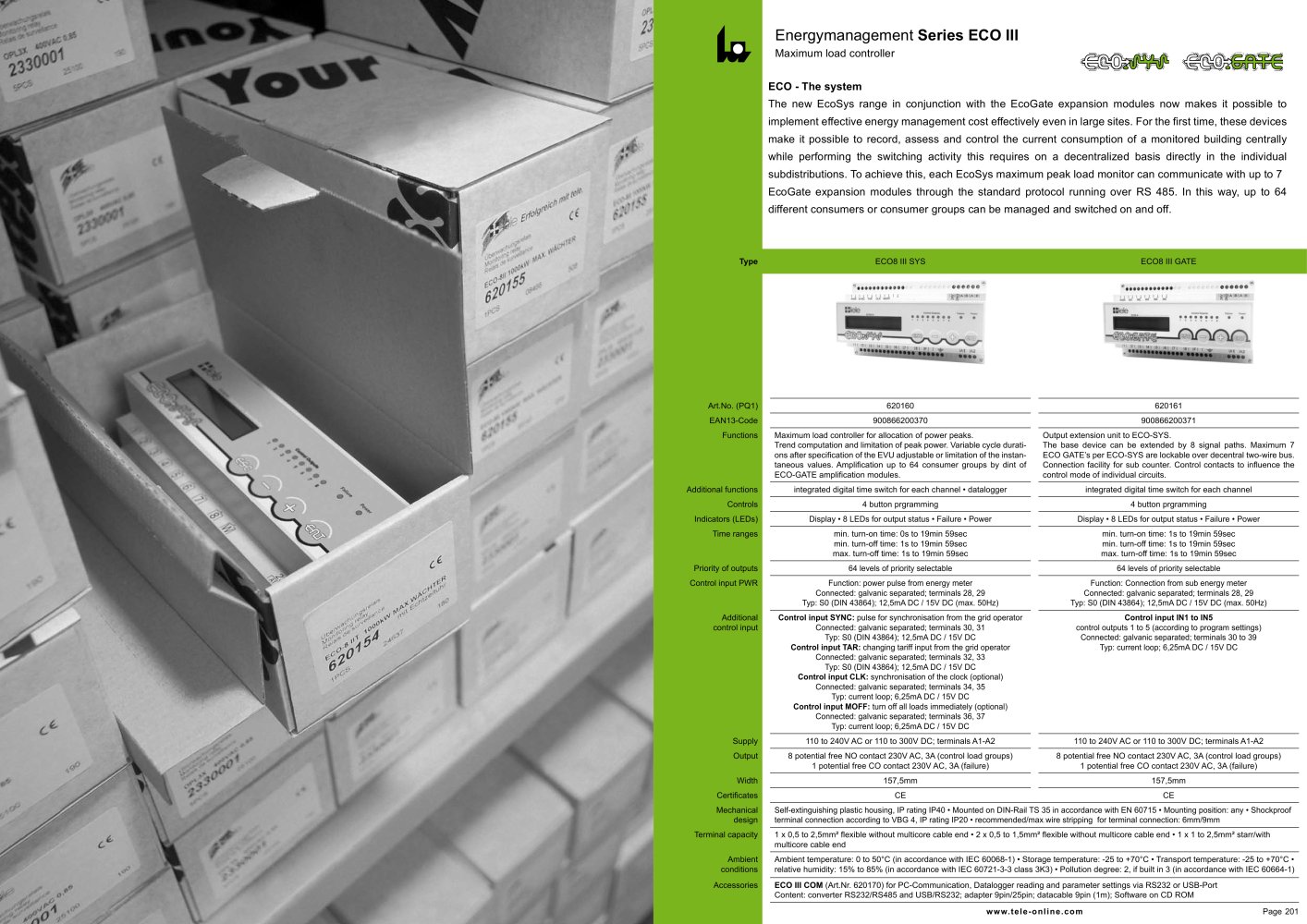

Type ECO8 III SYS ECO8 III GATE
Art.No. (PQ1) 620160 620161
EAN13-Code 900866200370 900866200371
Functions Maximum load controller for allocation of power peaks.
Trend computation and limitation of peak power. Variable cycle durations
after specification of the EVU adjustable or limitation of the instantaneous
values. Amplification up to 64 consumer groups by dint of
ECO-GATE amplification modules.
Output extension unit to ECO-SYS.
The base device can be extended by 8 signal paths. Maximum 7
ECO GATE’s per ECO-SYS are lockable over decentral two-wire bus.
Connection facility for sub counter. Control contacts to influence the
control mode of individual circuits.
Additional functions integrated digital time switch for each channel • datalogger integrated digital time switch for each channel
Controls 4 button prgramming 4 button prgramming
Indicators (LEDs) Display • 8 LEDs for output status • Failure • Power Display • 8 LEDs for output status • Failure • Power
Time ranges min. turn-on time: 0s to 19min 59sec
min. turn-off time: 1s to 19min 59sec
max. turn-off time: 1s to 19min 59sec
min. turn-on time: 1s to 19min 59sec
min. turn-off time: 1s to 19min 59sec
max. turn-off time: 1s to 19min 59sec
Priority of outputs 64 levels of priority selectable 64 levels of priority selectable
Control input PWR Function: power pulse from energy meter
Connected: galvanic separated; terminals 28, 29
Typ: S0 (DIN 43864); 12,5mA DC / 15V DC (max. 50Hz)
Function: Connection from sub energy meter
Connected: galvanic separated; terminals 28, 29
Typ: S0 (DIN 43864); 12,5mA DC / 15V DC (max. 50Hz)
Additional
control input
Control input SYNC: pulse for synchronisation from the grid operator
Connected: galvanic separated; terminals 30, 31
Typ: S0 (DIN 43864); 12,5mA DC / 15V DC
Control input TAR: changing tariff input from the grid operator
Connected: galvanic separated; terminals 32, 33
Typ: S0 (DIN 43864); 12,5mA DC / 15V DC
Control input CLK: synchronisation of the clock (optional)
Connected: galvanic separated; terminals 34, 35
Typ: current loop; 6,25mA DC / 15V DC
Control input MOFF: turn off all loads immediately (optional)
Connected: galvanic separated; terminals 36, 37
Typ: current loop; 6,25mA DC / 15V DC
Control input IN1 to IN5
control outputs 1 to 5 (according to program settings)
Connected: galvanic separated; terminals 30 to 39
Typ: current loop; 6,25mA DC / 15V DC
Supply 110 to 240V AC or 110 to 300V DC; terminals A1-A2 110 to 240V AC or 110 to 300V DC; terminals A1-A2
Output 8 potential free NO contact 230V AC, 3A (control load groups)
1 potential free CO contact 230V AC, 3A (failure)
8 potential free NO contact 230V AC, 3A (control load groups)
1 potential free CO contact 230V AC, 3A (failure)
Width 157,5mm 157,5mm
Certificates CE CE
Mechanical
design
Self-extinguishing plastic housing, IP rating IP40 • Mounted on DIN-Rail TS 35 in accordance with EN 60715 • Mounting position: any • Shockproof
terminal connection according to VBG 4, IP rating IP20 • recommended/max.wire stripping for terminal connection: 6mm/9mm
Terminal capacity 1 x 0,5 to 2,5mm² flexible without multicore cable end • 2 x 0,5 to 1,5mm² flexible without multicore cable end • 1 x 1 to 2,5mm² starr/with
multicore cable end
Ambient
conditions
Ambient temperature: 0 to 50°C (in accordance with IEC 60068-1) • Storage temperature: -25 to +70°C • Transport temperature: -25 to +70°C •
relative humidity: 15% to 85% (in accordance with IEC 60721-3-3 class 3K3) • Pollution degree: 2, if built in 3 (in accordance with IEC 60664-1)
Accessories ECO III COM (Art.Nr. 620170) for PC-Communication, Datalogger reading and parameter settings via RS232 or USB-Port
Content: converter RS232/RS485 and USB/RS232; adapter 9pin/25pin; datacable 9pin (1m); Software on CD ROM
ECO - The system
The new EcoSys range in conjunction with the EcoGate expansion modules now makes it possible to
implement effective energy management cost effectively even in large sites. For the first time, these devices
make it possible to record, assess and control the current consumption of a monitored building centrally
while performing the switching activity this requires on a decentralized basis directly in the individual
subdistributions. To achieve this, each EcoSys maximum peak load monitor can communicate with up to 7
EcoGate expansion modules through the standard protocol running over RS 485. In this way, up to 64
different consumers or consumer groups can be managed and switched on and off.
