TEDDINGTONAPPLIANCECONTROLSLTD

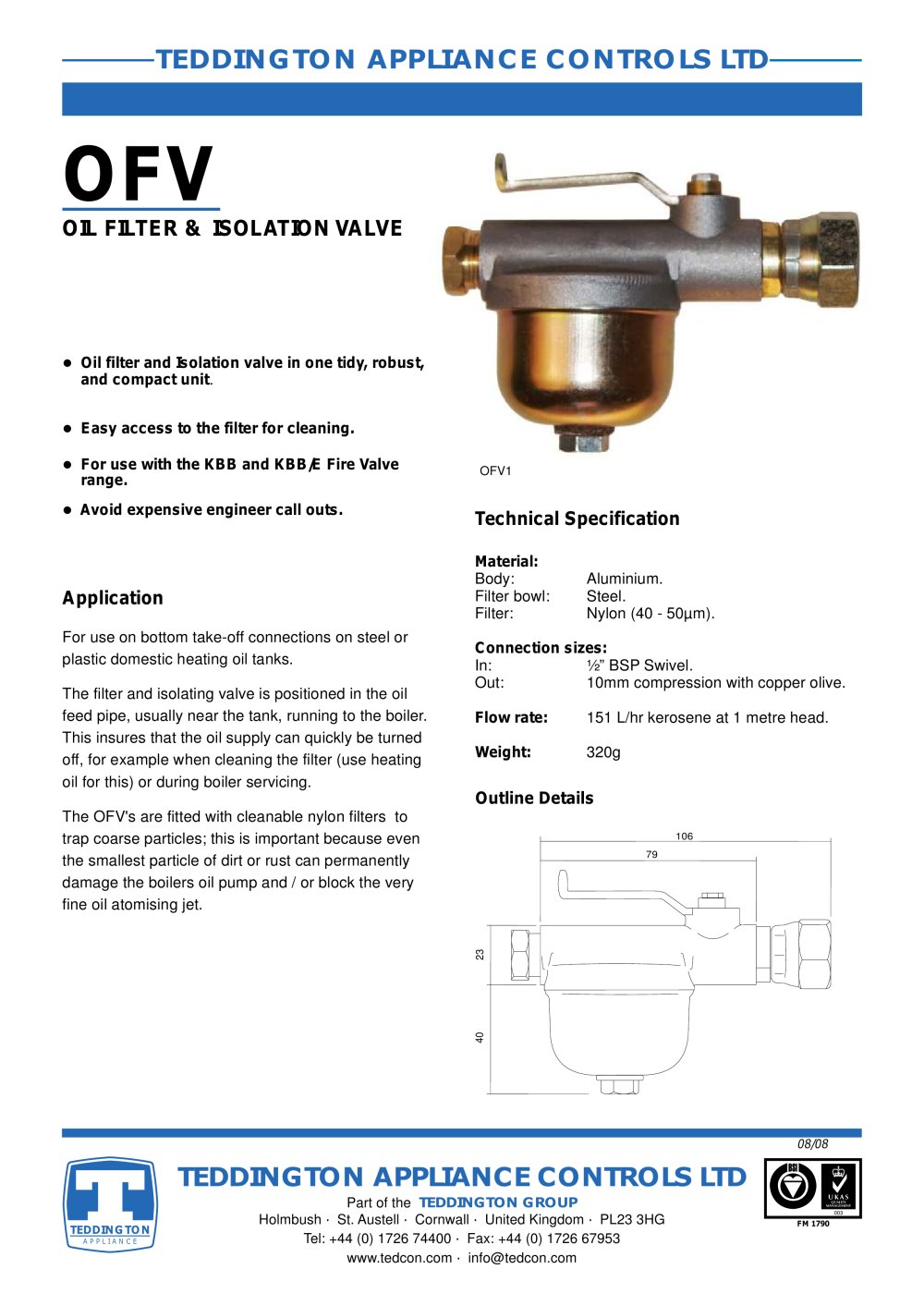

Oil Filter and Valve - 17560 OFV

OIL FILTER & ISOLATION VALVE

Oil filter and Isolation valve in one tidy, robust, and compact unit . Easy access to the filter for cleaning. For use with the KBB and KBB/E Fire Valve range.
OFV1 Avoid expensive engineer call outs.

Technical Specification

Material: Body:Aluminium.Filter bowl:Steel. Filter:Nylon (40 - 50µm).

Application

Connection sizes: For use on bottom take-off connections on steel or plastic domestic heating oil tanks. The filter and isolating valve is positioned in the oil feed pipe, usually near the tank, running to the boiler. This insures that the oil supply can quickly be turned off, for example when cleaning the filter (use heating oil for this) or during boiler servicing.The OFV's are fitted with cleanable nylon filters to trap coarse particles; this is important because even the smallest particle of dirt or rust can permanently damage the boilers oil pump and / or block the very fine oil atomising jet. In:½” BSP Swivel. Out:10mm compression with copper olive. Flow rate: 151 L/hr kerosene at 1 metre head. Weight: 320g

Outline Details

79106 2340 08/08
