TEDDINGTONAPPLIANCECONTROLSLTD

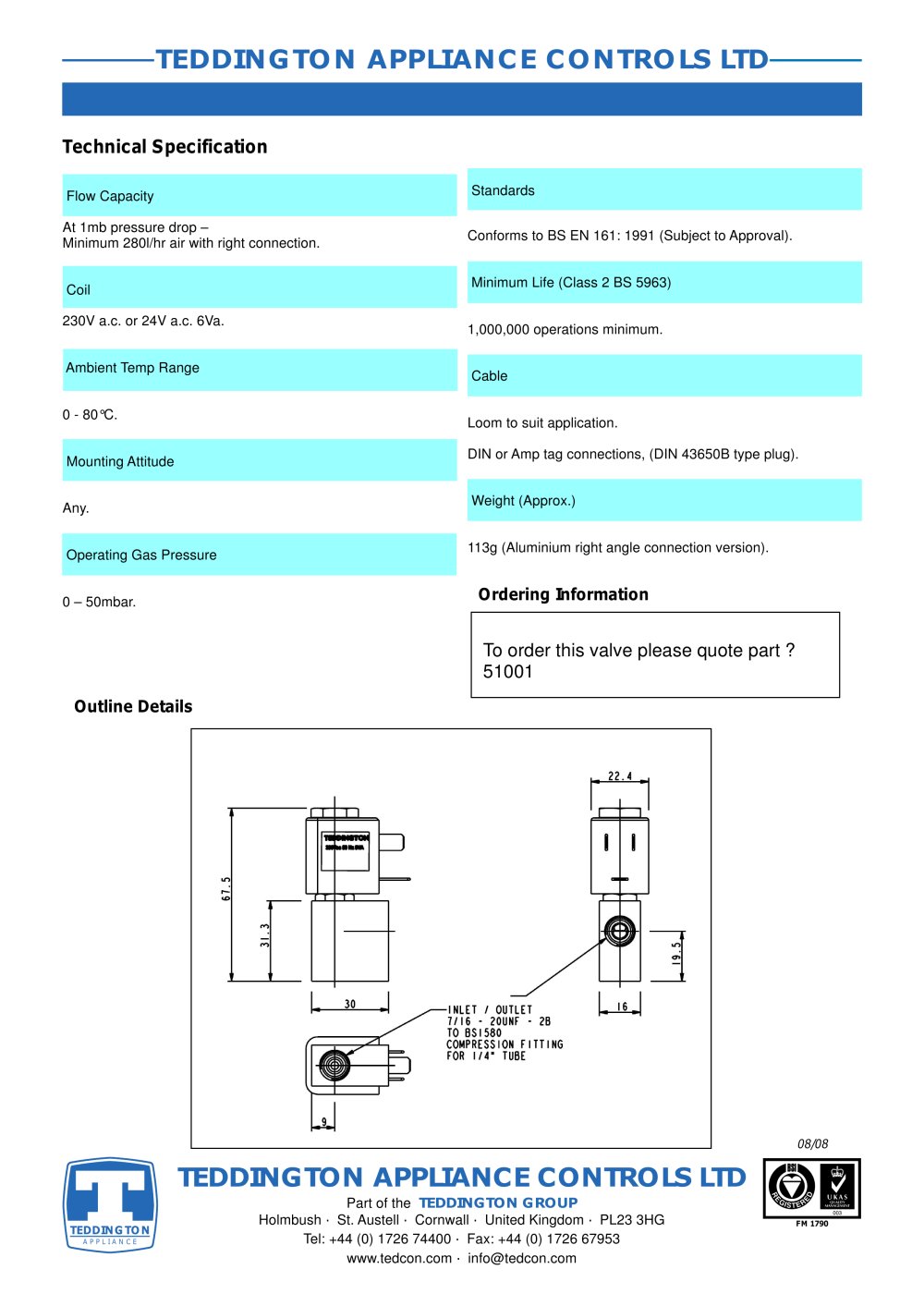

Technical Specification

Flow CapacityAt 1mb pressure drop – Minimum 280l/hr air with right connection. Coil230V a.c. or 24V a.c. 6Va.AmbientTemp Range0 - 80°C. Mounting AttitudeAny. Operating Gas Pressure0 – 50mbar. StandardsConforms to BS EN 161: 1991 (Subject to Approval). Minimum Life (Class 2 BS 5963) 1,000,000 operations minimum. Cable Loom to suit application.DIN or Amp tag connections, (DIN 43650B type plug). Weight (Approx.)113g (Aluminium right angle connection version).

To order this valve please quote part ?51001

Outline DetailsOrdering Information

08/08

TEDDINGTON APPLIANCE CONTROLS LTD

Part of the Holmbush St. Austell Cornwall United Kingdom PL23 3HGTel: +44 (0) 1726 74400 Fax: +44 (0) 1726 67953www.tedcon.com info@tedcon.com TEDDINGTON GROUP
······ TEDDINGTON FM 1790 APPLIANCE
