I Services

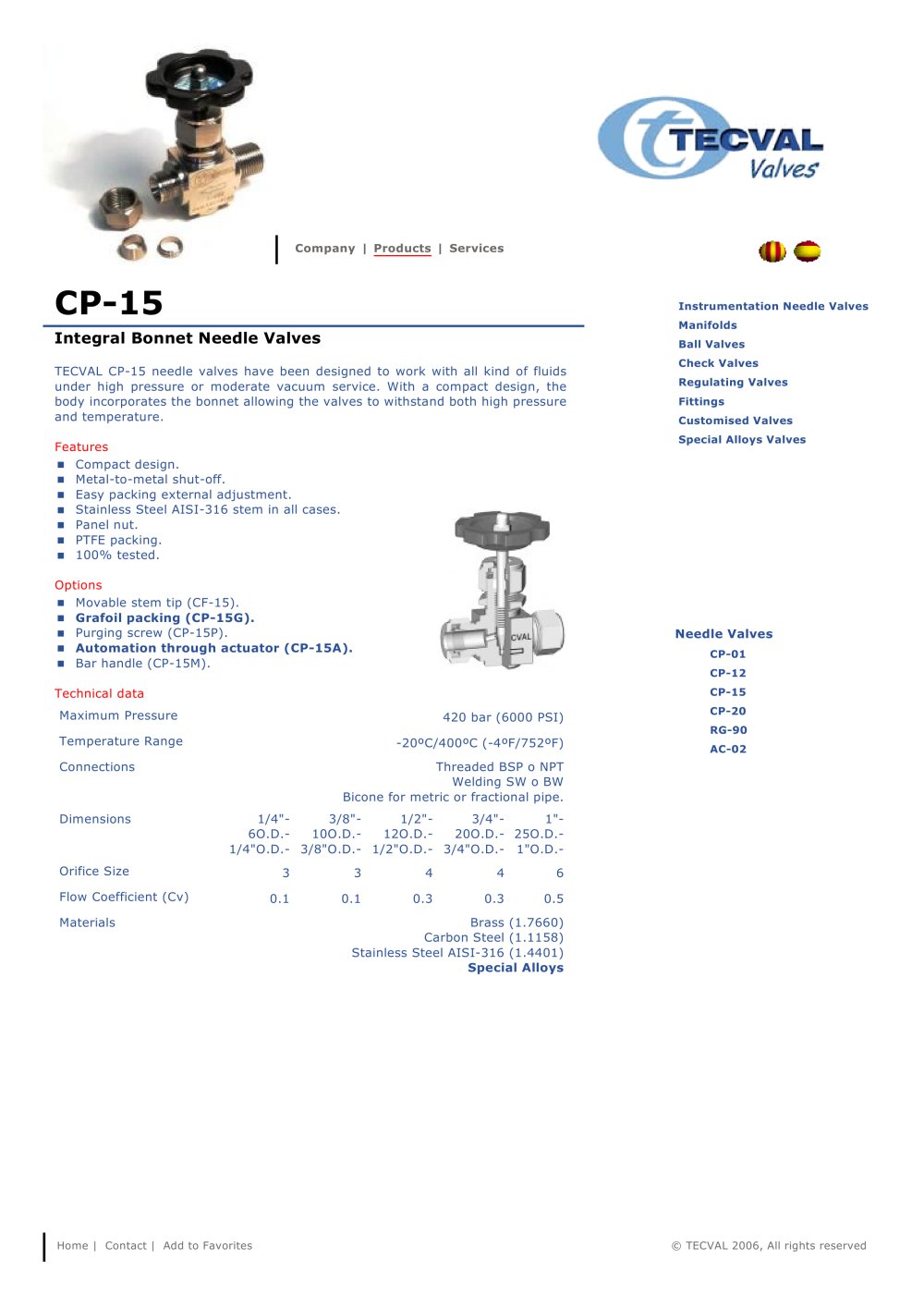

CP-15

Instrumentation Needle valves manufacturer

Manifolds

Ball valves

Industrial check valves

Regulating Valves

Fittings

Customised Valves Special Alloys Valves

Integral Bonnet Industrial needle Valves

TECVAL CP-15 needle valves have been designed to work with all kind of fluids under high pressure or moderate vacuum service. With a compact design, the body incorporates the bonnet allowing the valves to withstand both high pressure and temperature.

Features

■ Compact design.

■ Metal-to-metal shut-off.

■ Easy packing external adjustment.

■ Stainless Steel AISI-316 stem in all cases.

■ Panel nut.

■ PTFE packing.

■ 100% tested.

Options

■ Movable stem tip (CF-15).

■ Grafoil packing (CP-15G).

■ Purging screw (CP-15P).

■ Automation through actuator (CP-15A).

■ Bar handle (CP-15M).

Technical data Maximum Pressure Temperature Range

Needle Valves

CP-01 CP-12 CP-15 CP-20 RG-90 AC-02

420 bar (6000 PSI) -20°C/400°C (-4°F/752°F)

Threaded BSP o NPT Welding SW o BW Bicone for metric or fractional pipe.

1/4"- 3/8"- 1/2"- 3/4"- 1"-

60.D.- 10O.D.- 120.D.- 20O.D.- 250.D.-1/4"O.D.- 3/8"0.D.- 1/2"0.D.- 3/4"0.D.- 1"0.D.-

Connections

Dimensions

Orifice Size

Flow Coefficient (Cv)

Materials

0.1

3 0.1

4 0.3

6 0.5

Brass (1.7660) Carbon Steel (1.1158) Stainless Steel AISI-316 (1.4401) Special Alloys
