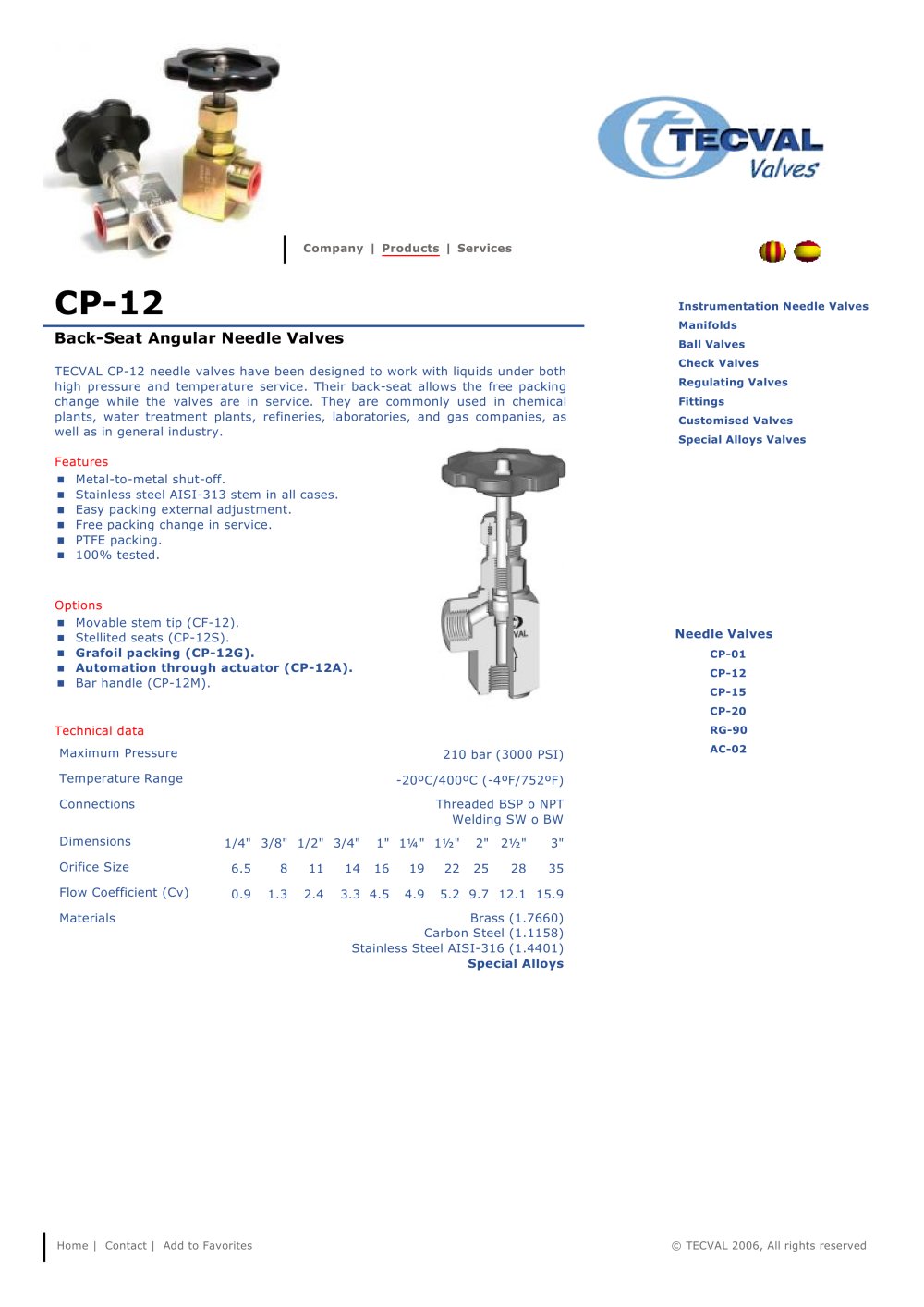

| | | CP-12 | | |
| | | Manifolds Regulating Valves Fittings Customised Valves Special Alloys Valves | | |
| | | |
| | | TECVAL CP-12 needle valves have been designed to work with liquids under both high pressure and temperature service. Their back-seat allows the free packing change while the valves are in service. They are commonly used in chemical plants, water treatment plants, refineries, laboratories, and gas companies, as well as in general industry. | | |
| | | |
| | | |
| | | Features ■ Metal-to-metal shut-off. ■ Stainless steel AISI-313 stem in all cases. ■ Easy packing external adjustment. ■ Free packing change in service. ■ PTFE packing. ■ 100% tested. | | |
| | | |
| | | Options ■ Movable stem tip (CF-12). ■ Stellited seats (CP-12S). ■ Grafoil packing (CP-12G). ■ Automation through actuator (CP-12A). ■ Bar handle (CP-12M). | | |
| | | Needle Valves CP-01 CP-12 CP-15 CP-20 RG-90 AC-02 | | |
| | | |
| | | Technical data Maximum Pressure Temperature Range Connections | | |
| | | 210 bar (3000 PSI) -20°C/400°C (-4°F/752°F) Threaded BSP o NPT Welding SW o BW | | |
| | | |
| | | |
| | | |
| | | Dimensions Orifice Size Flow Coefficient (Cv) Materials | | |
| | | 1/4" 3/8" 1/2" 3/4" 1" 1V2" 2" 2V2" 3" 6.5 8 11 14 16 19 22 25 28 35 0.9 1.3 2.4 3.3 4.5 4.9 5.2 9.7 12.1 15.9 Brass (1.7660) Carbon Steel (1.1158) Stainless Steel AISI-316 (1.4401) Special Alloys | | |
| | | |
| | | |
