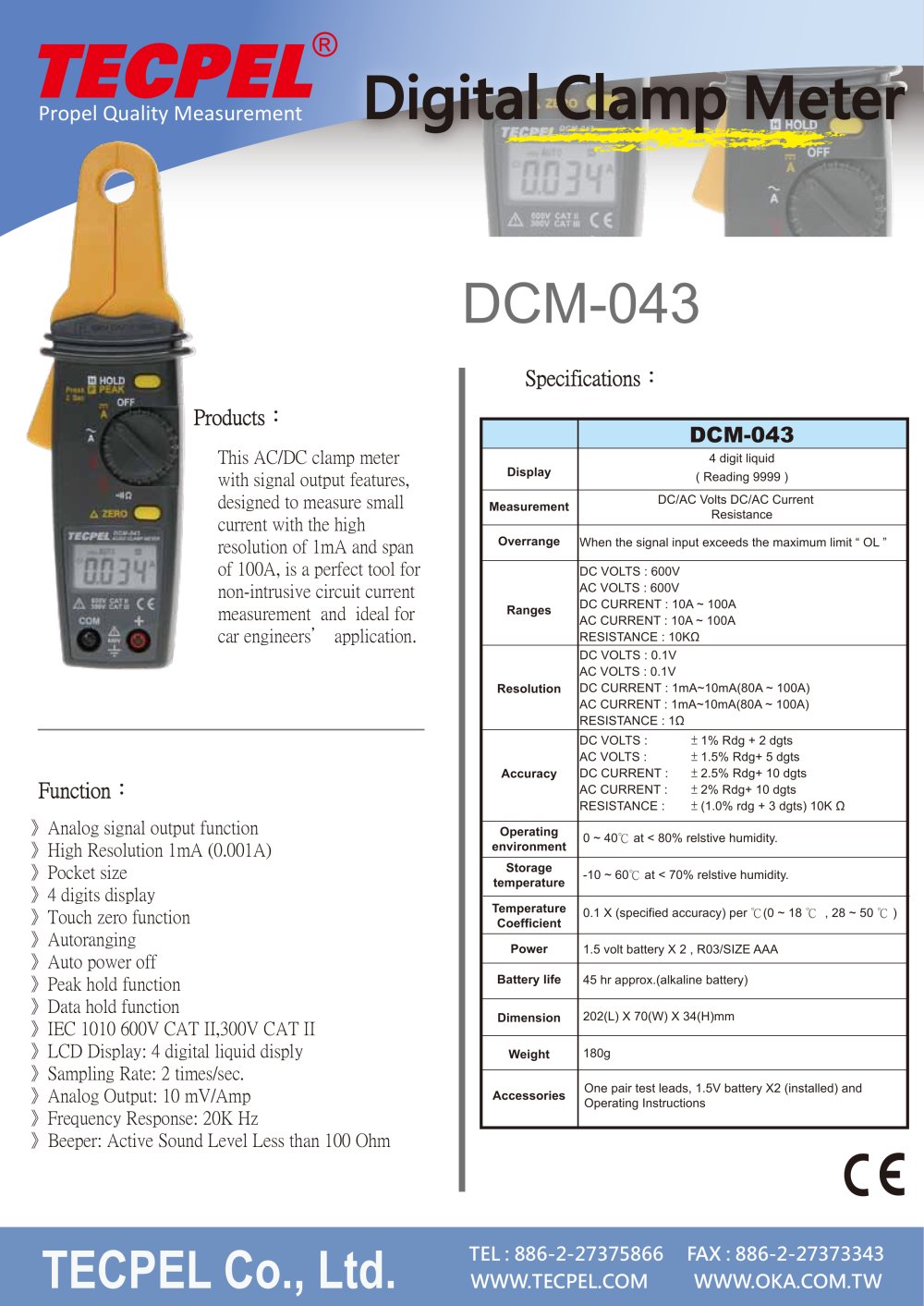

TECPEL AC/DC High Resolution 1mA (0.001A) Clamp meter DCM-043 - 1

DCM-043 This AC/DC clamp meter with signal output features, designed to measure small current with the high resolution of 1mA and span of 100A, is a perfect tool for non-intrusive circuit current measurement and ideal for car engineers’ application. Propel Quality Measurement SpecificationsF ProductsF FunctionF Display Measurement Overrange Ranges Resolution Accuracy Operating environment Storage temperature Temperature Coefficient Power Battery life Dimension Weight Accessories DCM-043 4 digit liquid ( Reading 9999 ) DC/AC Volts ADC/AC Current Resistance When the signal input exceeds the maximum limit “ OL ” DC VOLTS : 600V AC VOLTS : 600V DC CURRENT : 10A ~ 100A AC CURRENT : 10A ~ 100A RESISTANCE : 10KÙ DC VOLTS : 0.1V AC VOLTS : 0.1V DC CURRENT : 1mA~10mA(80A ~ 100A) AC CURRENT : 1mA~10mA(80A ~ 100A) RESISTANCE : 1Ù DC VOLTS : ± 1% Rdg + 2 dgts AC VOLTS : ± 1.5% Rdg+ 5 dgts DC CURRENT : ± 2.5% Rdg+ 10 dgts AC CURRENT : ± 2% Rdg+ 10 dgts RESISTANCE : ± (1.0% rdg + 3 dgts) 10K Ù 0 ~ 40Ž at < 80% relstive humidity. -10 ~ 60Ž at < 70% relstive humidity. 0.1 X (specified accuracy) per Ž(0 ~ 18 Ž , 28 ~ 50 Ž ) 1.5 volt battery X 2 , R03/SIZE AAA 45 hr approx.(alkaline battery) 202(L) X 70(W) X 34(H)mm 180g One pair test leads, 1.5V battery X2 (installed) and Operating Instructions tAnalog signal output function tHigh Resolution 1mA (0.001A) tPocket size t4 digits display tTouch zero function tAutoranging tAuto power off tPeak hold function tData hold function tIEC 1010 600V CAT II,300V CAT II tLCD Display: 4 digital liquid disply tSampling Rate: 2 times/sec. tAnalog Output: 10 mV/Amp tFrequency Response: 20K Hz tBeeper: Active Sound Level Less than 100 Ohm TEL : 886-2-27375866 FAX : 886-2-27373343 WWW.TECPEL.COM WWW.OKA.COM.TW TECPEL Co., Ltd. Digital Clamp Meter ®
