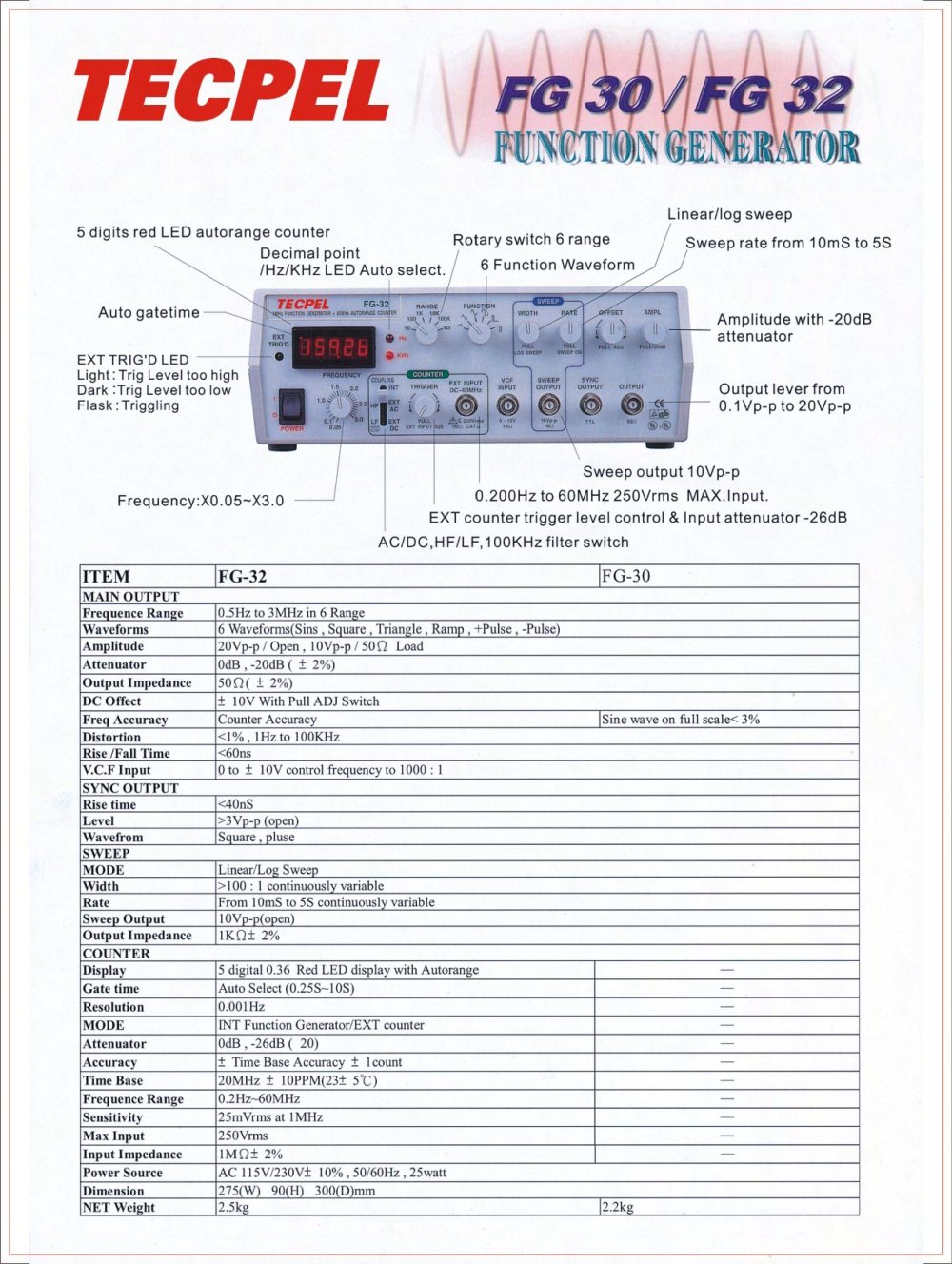

Linear/log sweep

Sweep rate from 10mS to 5S

5 digits red LED autorange counter

Decimal point

Rotary switch 6 range 6 Function Waveforr

[ TECPEL

Auto gatetime

Amplitude with -20dB attenuator

EXT TRIG'D LED

Light: Trig Level too high Dark :Trlg Level too low Flask:Trlggling

Output lever from 0.1Vp-pto20Vp-p

« -SB.®

Sweep output 10Vp-p 0.200Hzto 60MHz 250Vrms MAX.Input. EXT counter trigger level control & Input attenuator -26dB AC/DC,HF/LF,100KHz filter switch

Frequency:X0.05~X3.0


ITEM	FG-32	FG-30
MAJN OUTPUT
Frequence Range	0.5Hz to 3MHz in 6 Range
Waveforms	6 Waveforms(Sins , Square , Triangle . Ramp . +Pulse , -Pulse)
Amplitude	20Vp-p / Open , 1 OVp-p / 50 Q Load
Attenuator	OdB . -20dB ( ± 2%)
Output Impedance	50 Q( ± 2%)
DC Offect	■ !UV Willi i'ull A D.I VA.uh
Freq Accuracy	Counter Accuracy	\|Sine wave on full scale< 3%
Distortion	<1%, 1Hz to lOOKHz
Rise /Fall Tinic	:60ns
y.C .1 Input	0 to ± 10V control frequency to 1000 : 1
SYNC OUTPUT
Rise time	<40nS
Level	>3Vp-p (open)
Wavefrom	Square, pluse
SWEEP
modi:	Linear/Log Sweep
Width	> 100 : 1 continuously variable
Rate	From lOmS to 5S continuously variable
Sweep Output	lOVp-p(open)
Output Impedance	1KQ± 2%
COUNTER
Display	5 digital 0.36 Red LED display with Autorange	—
Gate time	Auto Select (0.25S-10S)	—
Resolution	0.001 Hz	—
modi:	INT Function Gcnerator/EXT counter
Attenuator	0dB,-26dB( 20)
Accuracy-	± Time Base Accuracy + 1 count	—
Time Base	20MHz ± 10PPM(23± 5°C)	—
Frequence Range	0.2Hz~60MHz
Sensitivity	25mVrmsat IMHz	-
Max Input	250Vrms	—
Input Impedance	1MQ± 2%	—
Power Source	AC 115V/230V1 10% . 50/60Hz , 25watt
Dimension	275(W) 90(H) 300(D)mm
NET Weight	2.5kg	12.2kg
