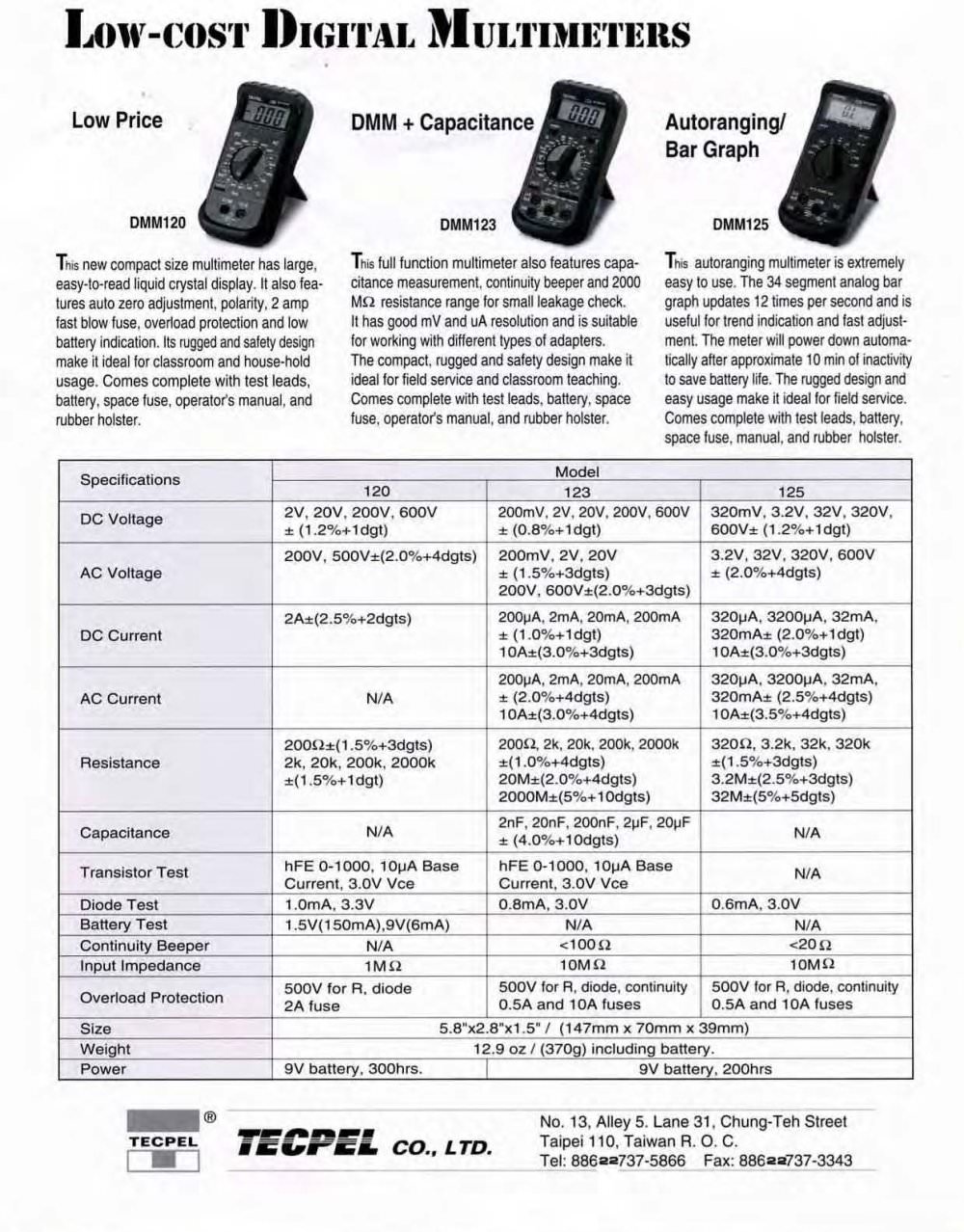

Low-cost Dion al Multimeters

Low Price

DMM + Capacitance

Autoranging/ Bar Graph

DMM120

DMM125

This autoranging multimeter is extremely easy to use. The 34 segment analog bar graph updates 12 times per second and is useful for trend indication and fast adjustment. The meter will power down automatically after approximate 10 min of inactivity to save battery life. The rugged design and easy usage make it ideal for field service. Comes complete with test leads, battery, space fuse, manual, and rubber holster.

DMM123

This full function multimeter also features capacitance measurement, continuity beeper and 2000 MQ resistance range for small leakage check. It has good mV and uA resolution and is suitable for working with different types of adapters. The compact, rugged and safety design make it ideal for field service and classroom teaching. Comes complete with test leads, battery, space fuse, operator's manual, and rubber holster.

This new compact size multimeter has large, easy-to-read liquid crystal display. It also features auto zero adjustment, polarity. 2 amp fast blow fuse, overload protection and low battery indication. Its rugged and safety design make it ideal for classroom and house-hold usage. Comes complete with test leads, battery, space fuse, operator's manual, and rubber holster.


Specifications	Model
Specifications	120	123	125
DC Voltage	2V. 20V. 200V, 600V ± (1.2%+1dgt)	200mV. 2V, 20V. 200V, 600V ± (0.8%+1dgt)	320mV, 3.2V, 32V. 320V. 600V± (1.2%+1dgt)
AC Voltage	200V, 500V±(2.0%+4dgts)	200mV, 2V, 20V ± (1.5%+3dgts) 200V, 600V±(2.0%+3dgts)	3.2V, 32V, 320V, 600V ± (2.0%+4dgts)
DC Current	2A±(2.5%+2dgts)	200uA, 2mA, 20mA, 200mA ± (1.0%+1dgt) 10A±(3.0%+3dgts)	320uA, 3200pA. 32mA. 320mA± (2.0%+1dgt) 10A±(3.0%+3dgts)
AC Current	N/A	200uA, 2mA, 20mA, 200mA ± (2.0%+4dgts) 10A±(3.0%+4dgts)	320uA, 3200uA, 32mA. 320mA± (2.5%+4dgts) 10A±(3.5%+4dgts)
Resistance	200ii±(1.5%+3dgts) 2k, 20k, 200k. 2000k ±(1.5%+1dgt)	200U 2k, 20k. 200k. 2000k ±(1.0%+4dgts) 20M±(2.0%+4dgts) 2000M±(5%+10dgts)	320U, 3.2k. 32k. 320k ±(1.5%+3dgts) 3.2M±(2.5%+3dgts) 32M±(5%+5dgts)
Capacitance	N/A	2nF, 20nF, 200nF, 2uF, 20uF ± (4.0%+10dgts)	N/A
Transistor Test	hFE 0-1000, 10uA Base Current. 3.0V Vce	hFE 0-1000, 10uA Base Current, 3.0V Vce	N/A
Diode Test	1.0mA, 3.3V	0.8mA, 3.0V	0.6mA, 3.0V
Battery Test	1.5V(150mA).9V(6mA)	N/A	N/A
Continuity Beeper	N/A	<100£2	<20£2
Input Impedance	1Mi2	10MQ	10M12
Overload Protection	500V for R. diode 2A fuse	500V for R, diode, continuity 0.5A and 10A fuses	500V for R. diode, continuity 0.5A and 10A fuses
Size	5.8"x2.8"x1.5" / (147mm x 70mm x 39mm)
Weight	12.9 oz / (370g) including battery.
Power	9V battery. 300hrs.	9V battery. 200hrs
